Air Cooling Kit

Air Cooling Kit

TV 903 Pumping System

An air cooling kit (mod. 5218 NM) is available to improve the TV 903 Pumping
System cooling during heavy operational conditions.
Single fan specifications:
To supply the fan it is necessary to connect the fan supply to the P4 connector of
the controller with the special shielded cable included into the kit to reduce noises
and to accomplish to EMC norms.

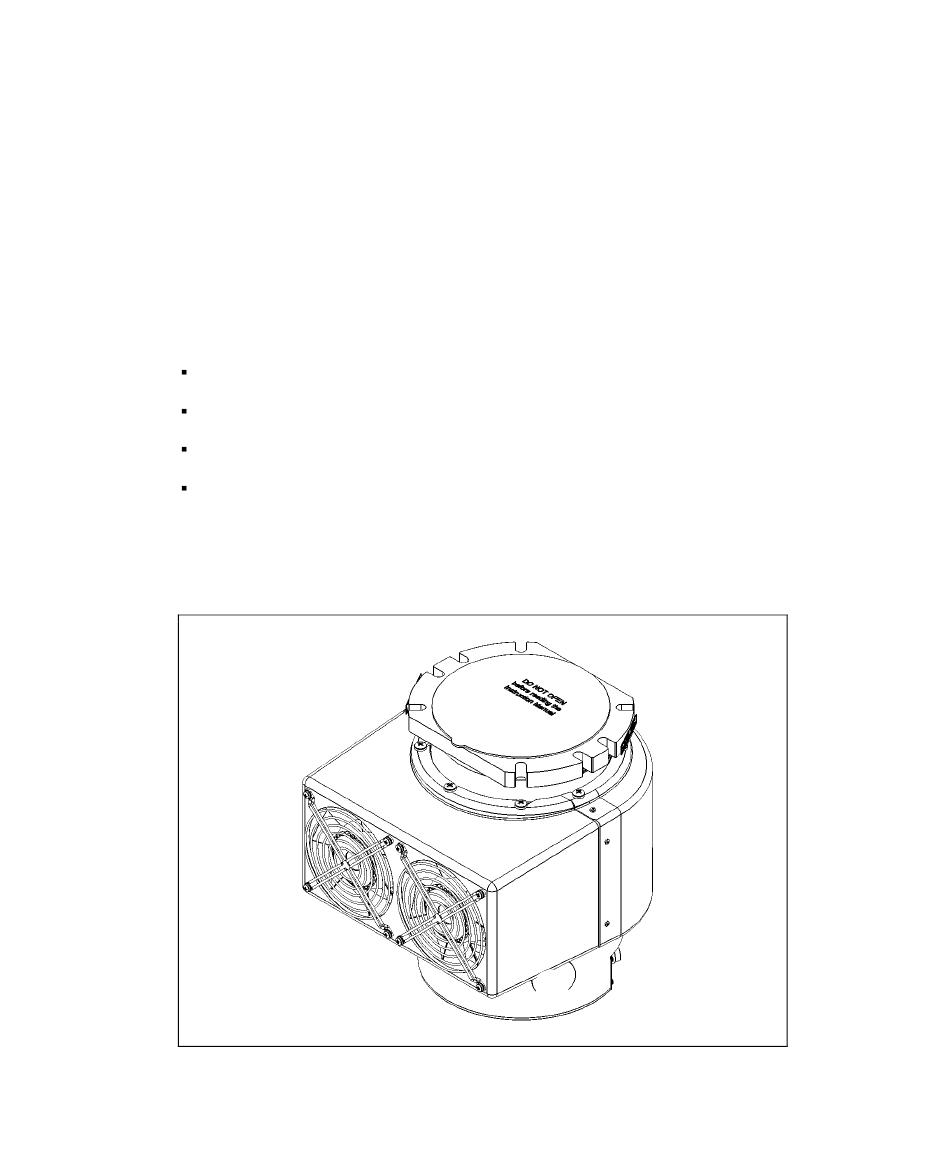

Figure 21
292/306
3
air flow: 187 m /h
input voltage: 48 Vdc
dimensions: 127 x 127 x 38 mm (5 x 5 x 1.5 in.)
power: 5 W
