Tracer RVIEW S1
EN
Wireless

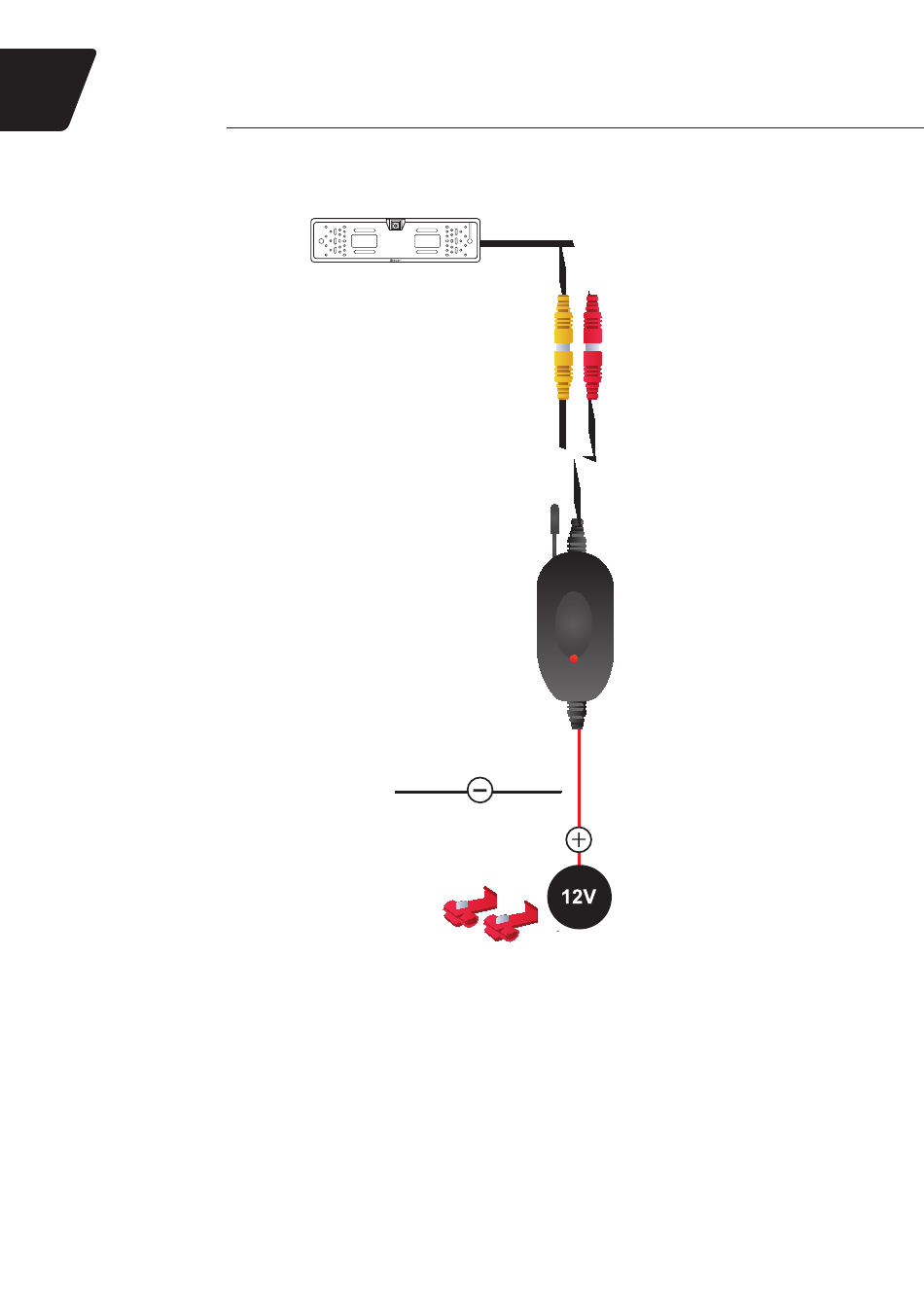

CONNECTING TO THE TAILLIGHT
1. Find the power cable connected to the taillight using the wiring diagram of the vehicle or using the 12V
electric meter (not supplied).
2. Using the supplied QUICK CONNECTOR/CONNECTOR, fix the red wire of the 2.4 GHz
TRANSMITTER CABLE to the taillight power cable (you can use the supplied (QUICK) CONNECTOR.
3. The black wire from the 2.4 GHz TRANSMITTER CABLE should be connected to the car ground.
4. Connect the red end of the FRAME WIRE to the red connector of the 2.4 GHz TRANSMITTER.
5. Connect the yellow end of the FRAME WIRE to the yellow connector of the 2.4 GHz TRANSMITTER.
8
TRANSMITTER
TRANSMITTER
GROUND
MASA
Taillight
