Instructions for use
INSTALLATION OF THE SET
MOUNTING THE CAMERA FRAME ON THE CAR
1. Remove the original plate along with the frame.
2. Locate the point (trunk handle, any other technical opening) where you can insert the cable (50 cm
length) into the trunk.
3. If there is no factory-made inlet available, it is necessary to drill a hole with diameter allowing to insert
first the yellow, and second – the red cinch cable fitted at the end of the frame wiring.
4. Before installing the frame, you have to decide how to fix the plate frame (see sec. 5)!
5. The plate is fixed at the top by the UPPER PLATE CLIP; however, at the bottom, it should be fixed
individually by the user:
a. You may fix it using screws used to fix the frame to the body of the car.
b. You may fasten the plate to the frame using additional screws (not supplied), using MULTI-
PURPOSE MOUNTING HOLES in the frame.
c. You may fix the plate to the frame using zip ties (not supplied), using MULTI-PURPOSE
MOUNTING HOLES in the frame.
6. Fasten the frame using original fixing of the factory-made plate frame; but first remember to insert the
cables through the specially made hole in the car body.

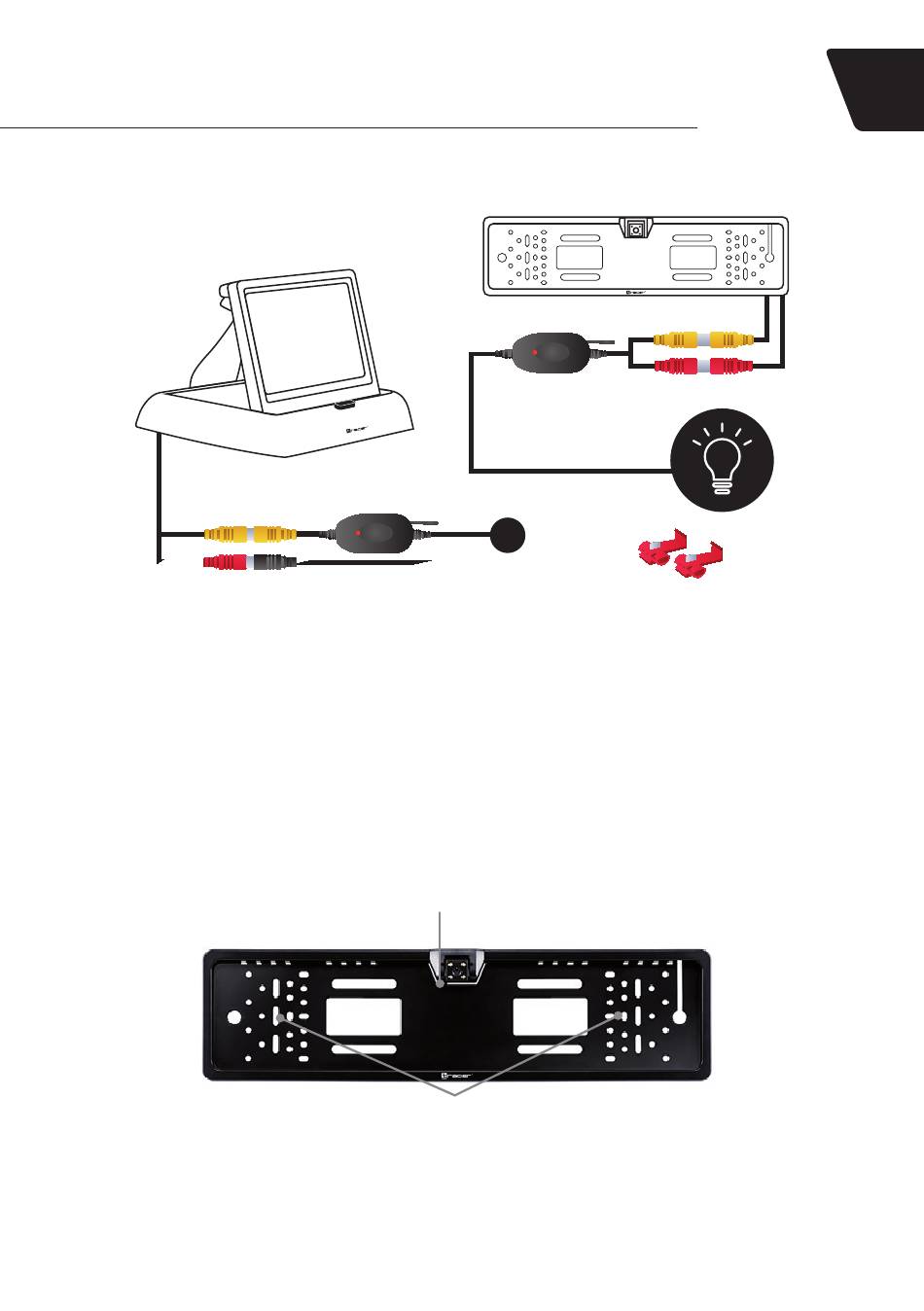

Receiver
Receiver
odbiornik
UPPER PLATE CLIP
MULTI-PURPOSE MOUNTING HOLES:
• Fixing the registration plate
• Fastening the frame to the body of the car
Tracer RVIEW S1
Transmitter
Transmitter
nadajnik
2 quick
2 quick
connectors
connectors
2 szybkozłączki
