Set Operation of MWT Channel(s) or Individual Outputs

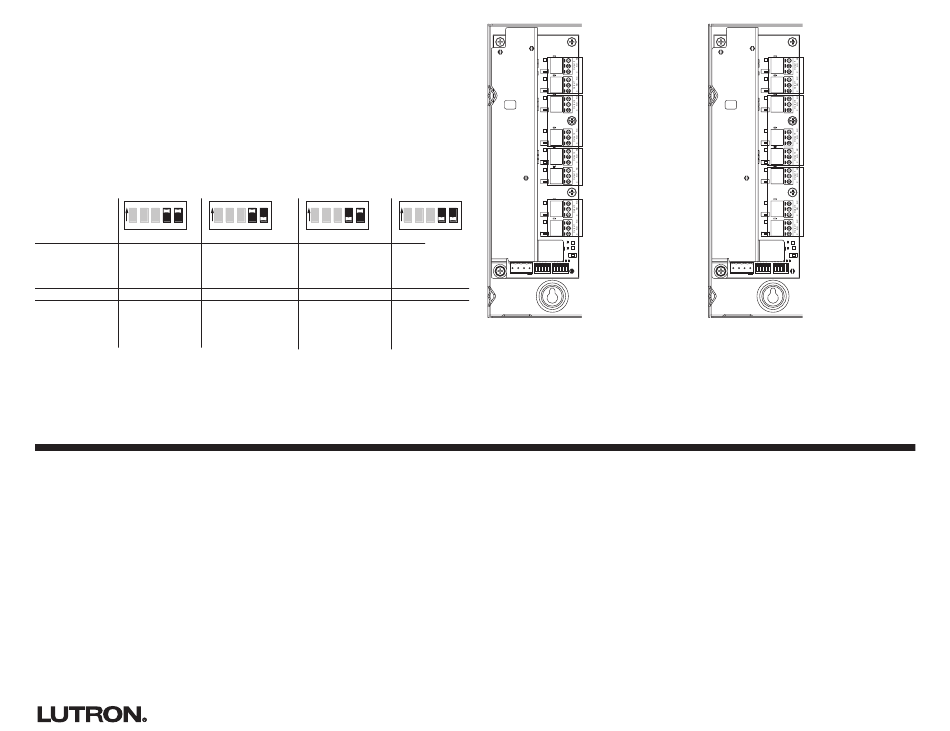

Set the OPTIONS switches to select the operating mode that is appropriate for your application.
I
The outputs may be set to either all momentary or all maintained (MWT channels only).
I
I The MWT channel(s) may be set to have Open and Close outputs, or Open, Stop and Close out-
puts. Refer to the manufacturer's MWT Controller Installation Guide to determine how many out-
puts per MWT channel are appropriate.
I Set the appropriate Stop function. Refer to the manufacturer's MWT Controller Installation Guide.
I Outputs not used as MWT channels may be controlled as individual outputs (e.g., if the OMX-
CCO-8 is set to have 2 channels of MWT controllers, and each channel has 2 outputs, then
there will be 4 outputs left over to act as individual outputs).
Note: If channels are configured to have three outputs per MWT channel, then the maximum
number of MWT channels is two.
ON ON
1 2 3 4 5
OPTIONS
Output configura- Open Open
tion for MWTs Close Close
Maintained Momentary
Output Type
Both outputs Open and Close
Stop Function
opened pulsed simulta-
neously*
* Please refer to Warning at the beginning of Set Options section.
LIMITED WARRANTY
Lutron will, at its option, repair or replace any unit that is defective in materials or manufacture within one year after purchase. For warranty service, return unit to place of purchase or mail to Lutron at 7200 Suter Rd., Coopersburg, PA
18036-1299, postage pre-paid.
This warranty is in lieu of all other express warranties, and the implied warranty of merchantability is limited to one year from purchase. This warranty does not cover the cost of installation, removal or reinstallation, or dam-
age resulting from misuse, abuse, or improper or incorrect repair, or damage from improper wiring or installation. This warranty does not cover incidental or consequential damages. Lutron's liability on any claim for dam-
ages arising out of or in connection with the manufacture, sale, installation, delivery, or use of the unit shall never exceed the purchase price of the unit.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
National Electrical Code is a registered trademark of the National Fire Protection Association, Inc., Quincy, Massachussetts.
Lutron and GRAFIK 6000 are registered trademarks, and GRAFIK 5000 and GRAFIK 7000 are trademarks of Lutron Electronics Co., Inc.
© 2003 Lutron Electronics Co., Inc.
Internet: www.lutron.com
E-mail: product@lutron.com
Lutron Electronics Co., Inc.
Made and printed in U.S.A.
P/N 040-206 Rev.A 6/03
ON
1 2 3 4 5 1 2 3 4 5
OPTIONS OPTIONS
Open
Close
Momentary
Most recent output
pulsed
World Headquarters
Lutron Electronics Co. Inc.,
TOLL FREE: (800) 523-9466
(U.S.A., Canada, Caribbean)
Tel: (610) 282-3800;
International 1- 610-282-3800
Fax: (610) 282-3090;
International 1-610-282-3090
2 Outputs per Channel
ON
1 2 3 4 5
OPTIONS
Open
Stop
1 2 3 4 5 1 2 3 4 5
Close
COM +V MUX MUX OPTIONS ADDRESS
Momentary
Dedicated Stop
output pulsed
Set OMX-CCO-8 Address
The OMX-CCO-8 requires one of 32 unique Wallstation addresses to operate properly. This is
accomplished by setting the Address Switches appropriately (please refer to the Processor Panel
installation instructions for more information). Refer to Lutron job drawings for any preassigned,
job-specific address for each OMX-CCO-8.
European Headquarters
Lutron EA Ltd.,
FREEPHONE: 0800 282107 (U.K.)
Tel: (171) 702-0657;
International 44-702-702-0657
Fax: (171) 480-6899;
International 44-702-480-6899
3 Outputs per Channel
Close
Channel 4
Open
Close
Channel 3
Open
Close
Channel 2
Open
Close
Channel 1
Open
1 2 3 4 5
COM +V MUX MUX OPTIONS
ASIAN HEADQUARTERS
Lutron Asuka Co, Ltd.,
TOLL FREE: (0120) 083417 (Japan)
Tel: (03) 5575-8411;
International ++81-3-5575-8411
Fax: (03) 5575-8420;
International ++81-3-5575-8420
2 Individual Outputs
Close
Channel 2
Stop
Open
Close
Channel 1
Stop
Open
1 2 3 4 5
ADDRESS
