Installation
Mounting
Lutron recommends that the OMX-CCO-8 be installed by a qualified electrician.
I
I The environment where the OMX-CCO-8 is placed must have an ambient temperature range of
32—104 °F (0—40 °C).
I Humidity less than 90%, noncondensing.
I Mount the enclosure on clean, dry surface.
I Mounting method must be able to support weight and forces applied during installation.
I Mount the OMX-CCO-8 no further away than the maximum wire length specified by the A/V
equipment or MWT controller, if applicable.
1. Remove the top cover by loosening the two screws.
2. Mark two holes in the mounting surface using the OMX-CCO-8 as a template.
3. Drill the holes.
4. Mount the OMX-CCO-8 using 2 #8 screws (not supplied)

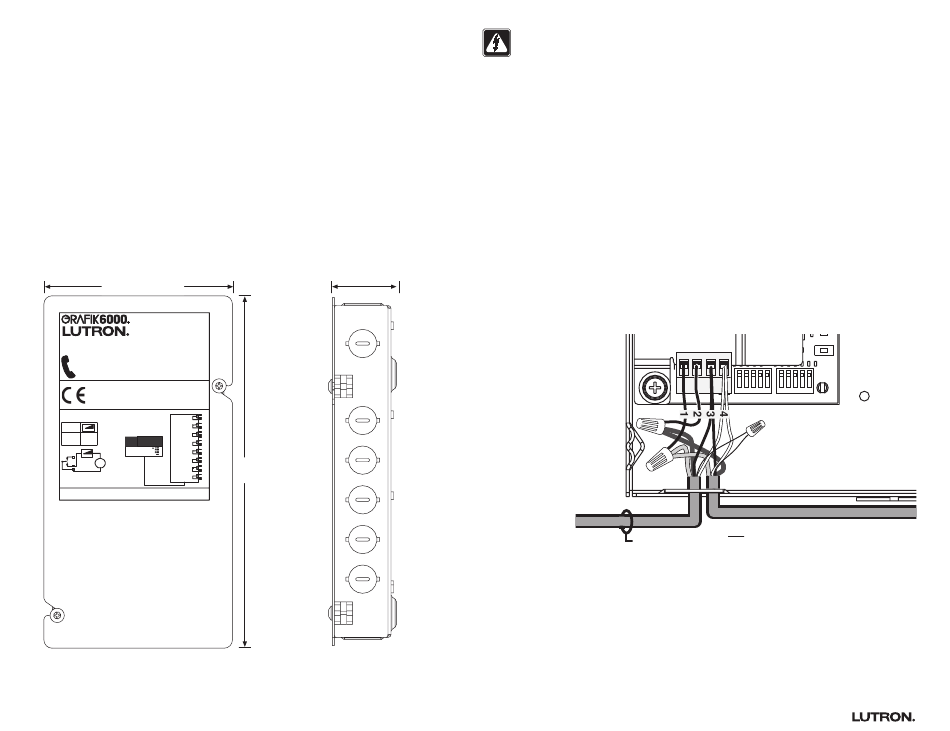

OMX-CCO-8 (shown with cover attached)
5-3/4 in. (146.1 mm)
OMX-CCO-8
PELV (Class 2 USA)
Coopersburg, PA USA
www.lutron.com
US/Canada: 1-800-523-9466 Singapore: +65-6220-4666
Great Britain: +44-207-702-0657 Japan: +81-3-5575-8411
Deutschland: +49-30-9710-4590 Hong Kong: +852-2104-7733
Espana: +34-91-567-8479
France: +33-1–4470-7200
IEC/EN 60669-2-1
IP20
µ
8
7
V
R
0 - 30 1.0 A 6
30 - 42 0.5 A
5
GRX-CC0-8
4
NC
R L
3
Vdc
NO
V~
2
C
1
GRX-CCO v1.1 144-759 BR2 L20
OMX-CCO-8 Installation Instructions
2 in
(50.29 mm)
10-3/4 in.
(273.1 mm)
Wiring
Danger! Always turn Off the circuit breaker or remove the main fuse from the power line
before doing any work. Failure to do so can result in serious personal injury.
Do not connect line/mains voltage power to low-voltage terminals. Improper wiring can
I
result in personal injury or damage to the control or to other equipment.
Refer to the Processor Panel Installation Guide and/or Lutron job drawings for power cable and
I
data cable (OMX Control Link) wiring specifications.
The OMX-CCO-8 must be connected to the Lutron Lighting Control System by using Class
I
2/PELV wiring methods per the National Electrical Code
inspector for the local code requirements and wiring practices allowed in your area.
OMX Control Link - OMX-CCO-8 to OMX Control Unit
1. Turn power Off.
2. Strip insulation from wires so that 3/8 in. (10 mm) of bare wire is exposed for #18 AWG (1.0
2
mm ) wire.
3. Wiring must be done in a daisy-chain configuration (please see Installer's Guide included with
OMX Control Unit for more information).
Connect one twisted pair of wires (two #18 AWG [1.0 mm
CCO-8's terminal block. For terminals 1 and 2, the use of #12 AWG (2.5 mm
Refer to the diagram below for proper wiring.
4. Restore power.
OMX-CCO-8
OMX Control Link
1: COM, 2: +V, 3: MUX, 4: MUX
2
. Check with your local electrical
®
2 ]) to terminals 3 and 4 of the OMX-
2 ) is required.
1 2 3 4
1 2 3 4 5 1 2 3 4 5
COM +V MUX MUX OPTIONS ADDRESS
Drain/Shield
OMX Control Link
