EN: Installation Sheet
Description
The UVD-XP3DNR(-P) camera consists of the following
parts:
• The camera assembly (Figure 1)
Table 1: Description of camera parts
1. Lens body
2. Bubble
3. Video monitor output
4. OSD control pad
5. Camera body
• Monitor output cable (Figure 2)
1. Monitor output BNC; 2. Monitor output RCA
• Mounting screws, wall anchors, and hex key
Use the video output BNC and power jack for normal
system operation. Use the monitor output cable for
installation and maintenance.
OSD control pad
The onscreen display (OSD) control pad (Figure 3: 1.
OSD control pad) is a five-direction joystick that provides
the ability to manually control the camera functions.
Table 1 lists the OSD control pad functions and
describes their use.
Table 2: OSD control pad functions
Pad directions Description
Up Moves the cursor upward to select an
item.
Left Moves the cursor left to select or adjust
the parameters of the selected item.
Right Moves the cursor to the right to select or
adjust the parameters of the selected
item.
Down Moves the cursor downward to select an
item.
2 of 24
Pad directions
Enter

Installation

Complete all the necessary programming before you
install the camera. This section provides information on
how to install the camera and adjust camera angle and
focus.
WARNING: To reduce the risk of fire or electronic
shock, do not expose the camera to rain or moisture and
do not remove the cover or back.
Cable connection
To make cable connections, do the following:
1. Connect a coaxial cable from the camera's BNC
connector to a CCTV monitor or video recording
device.
2. Connect a 12 VDC or 24 VAC power supply to the
power input. The label on the camera gives the
following information:
Red cable. Power in.
Black cable. Power in.
White cable. Video out.
Black cable. Video ground.
Note: For AC24V or DC12V, Black or Red may be used for
ground.
Camera installation
To mount the camera, attach the camera to the
mounting surface using the appropriate fasteners
Angle adjustment
To adjust the horizontal angle of the platform up to 180
degrees, turn the platform (Figure 4, number 1).
To adjust the horizontal angle of the rotor up to 350
degrees, turn the rotor on the platform (Figure 4, number
3).
P/N UVD-XP3DNR quick install_092009-Multilingual • REV 2.0 • ISS 19AUG11
Description

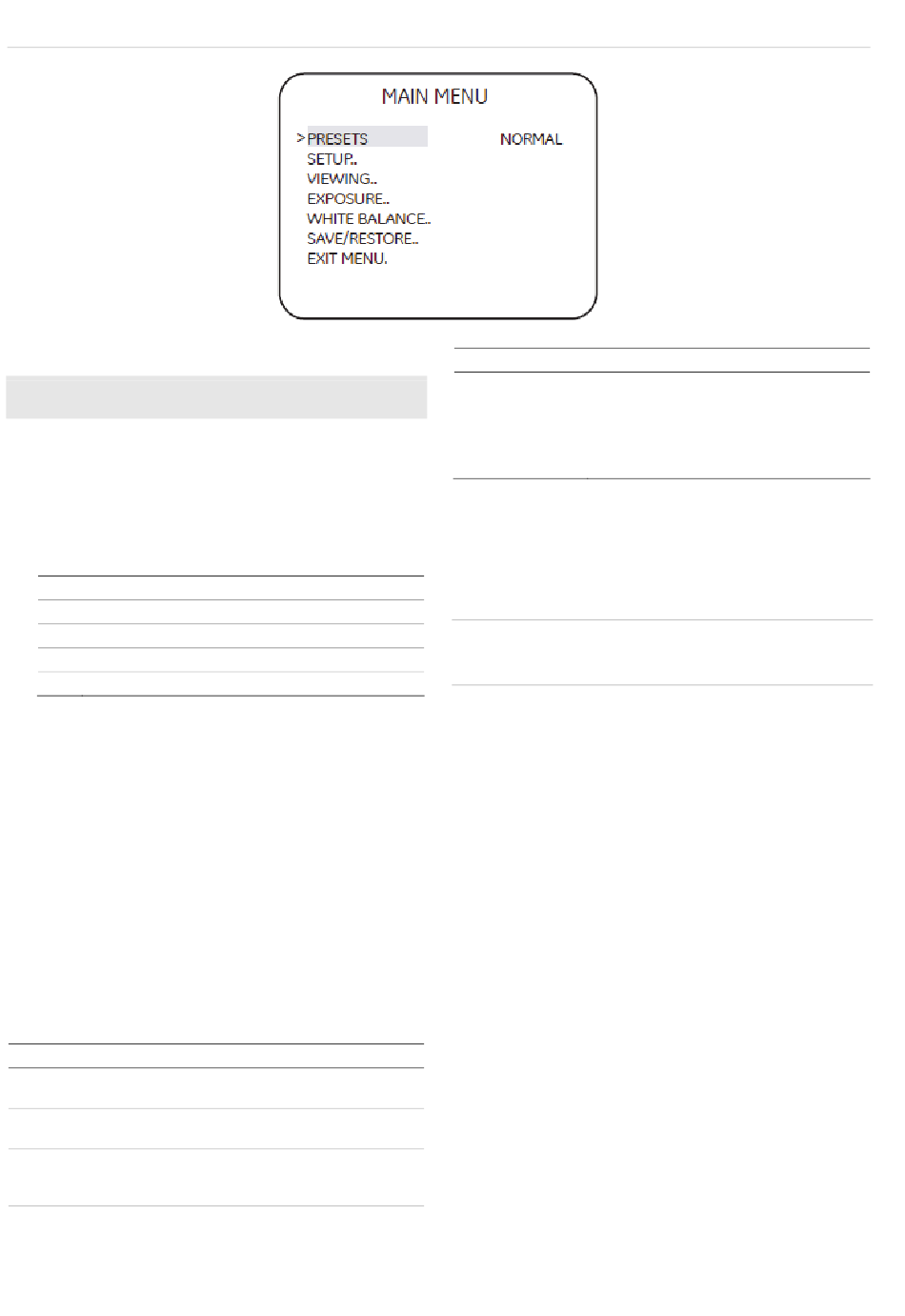

Press the center of the control pad to
display the Setup menu. If the selected
item has its own menu, press the control
pad to enter a submenu. Press the
control pad for 2 seconds to save all
settings and exit the Setup menu.
