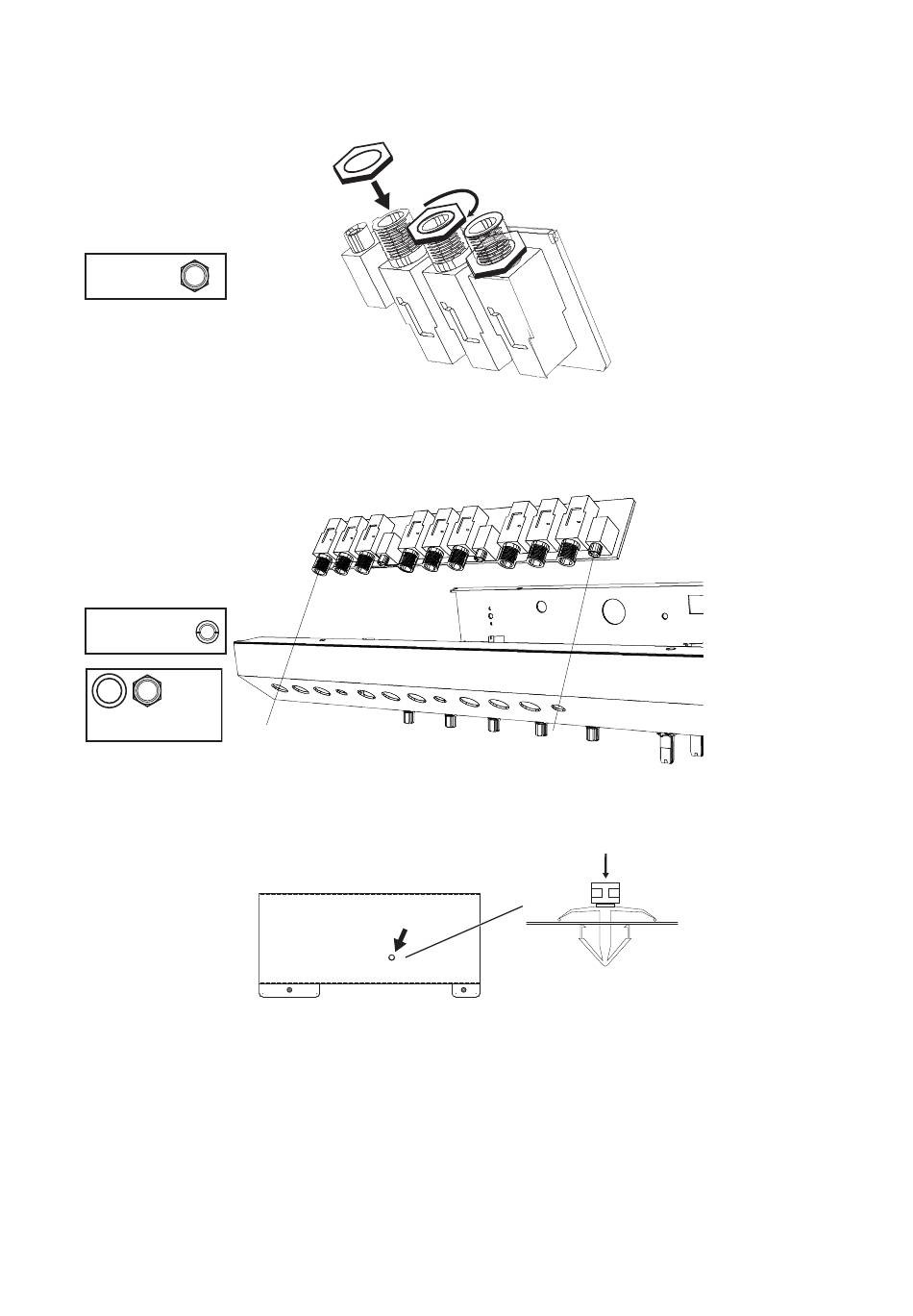

9. Attaching nuts (A) to the standard phone jacks of the junction circuit board (small) and junction
circuit board (large)
Attach a nut (A) to each standard phone jack.
Caution: Be careful not to over tighten.
Nut (A)
10. Attaching the junction circuit board (small) and junction circuit board (large) to the top panel with
washers (A) and nuts (A) and the mini jacks with knurled nuts
The knurled nuts must be installed in the correct orientation. Position the nuts so that the side with the notches faces out. Use
the mini-wrench to tighten the knurled notches.
knurled nut
Nut (A)
Washer (A)
11. Installing the spacer at the specified location on the rear panel jack circuit board unit
Install the spacer on the rear panel jack circuit board unit, making sure that the orientation is correct.
8
