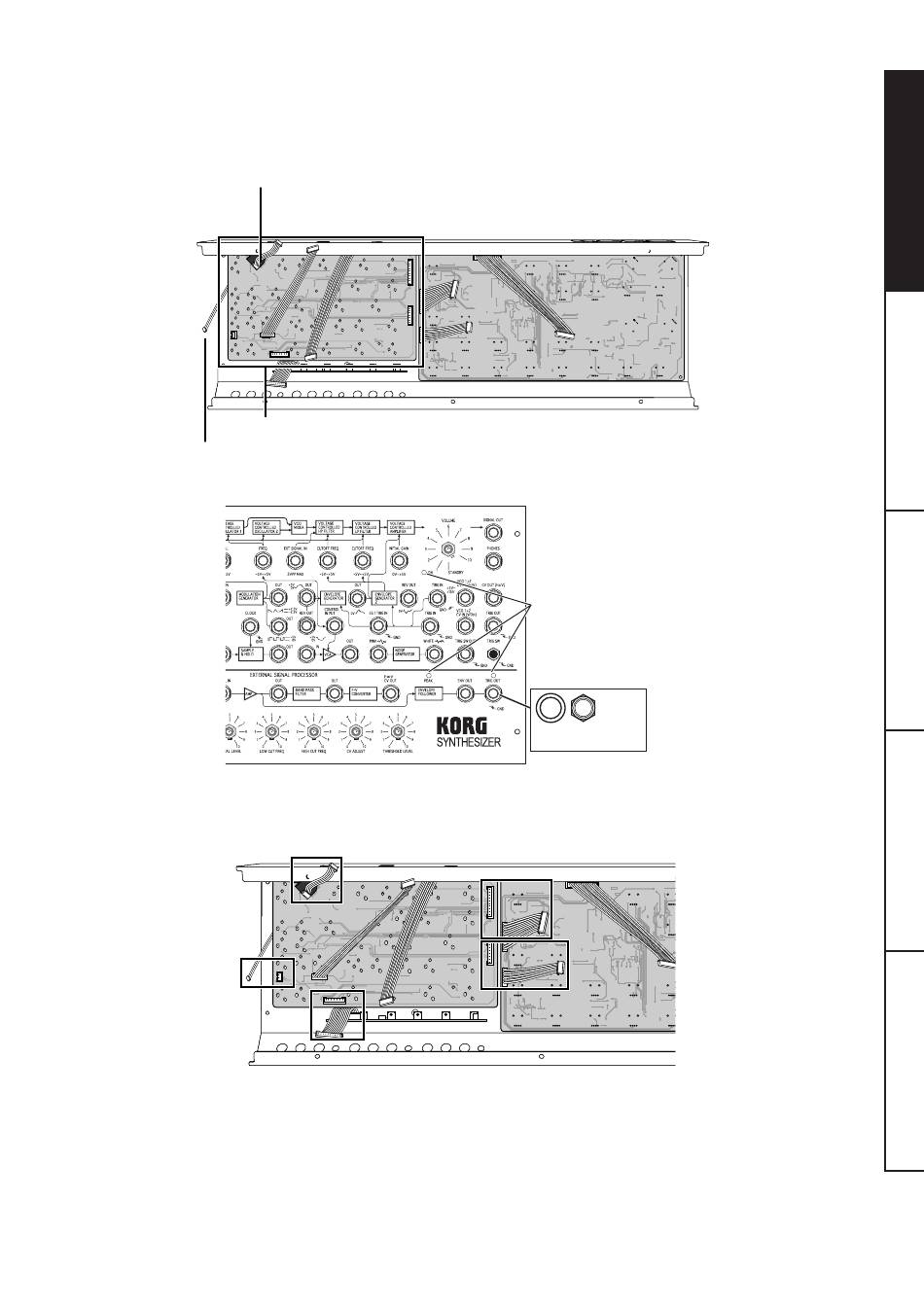

7. Attaching the panel jack circuit board to the top panel with the included washers (A) and nuts (A)
Caution: Be careful not to pinch the cable of the TRIG SW button with the spacer sheet.
Caution: Be careful to avoid injuries to your hands from the terminals.
Caution: Be careful that the panel is not scratched when the included box-end wrench is used to tighten the nuts.
Be careful not to pinch the cable of the
TRIG SW button with the spacer sheet.
8. Feeding the wiring harnesses to the panel jack circuit board
Plug in the five wiring harnesses, making sure that the orientation is correct.
Feed the wiring harness for the switch VR
circuit board through the hole.
Panel jack circuit board
Verify that the LEDs
fit through the front
panel.
Nut (A)
Washer (A)
