Assembling the top panel section
1. Mounting the rubber bushings on the top panel
Install the rubber bushings in the fourteen locations on the top panel.
Caution: Make sure that the installation locations are correct.
2. Attaching the VR circuit board (large) to the top panel with the included nuts (C)
Caution: Be careful to avoid injuries to your hands from the terminals.
Caution: Be careful that the panel is not scratched when the included box-end wrench is used to tighten the nuts.
Caution: If the nuts are made too tight, the controls may not move smoothly.
3. Attaching the VR circuit board (small) to the top panel with the included nuts (B)
Caution: Be careful to avoid injuries to your hands from the terminals.
Caution: Be careful that the panel is not scratched when the included box-end wrench is used to tighten the nuts.

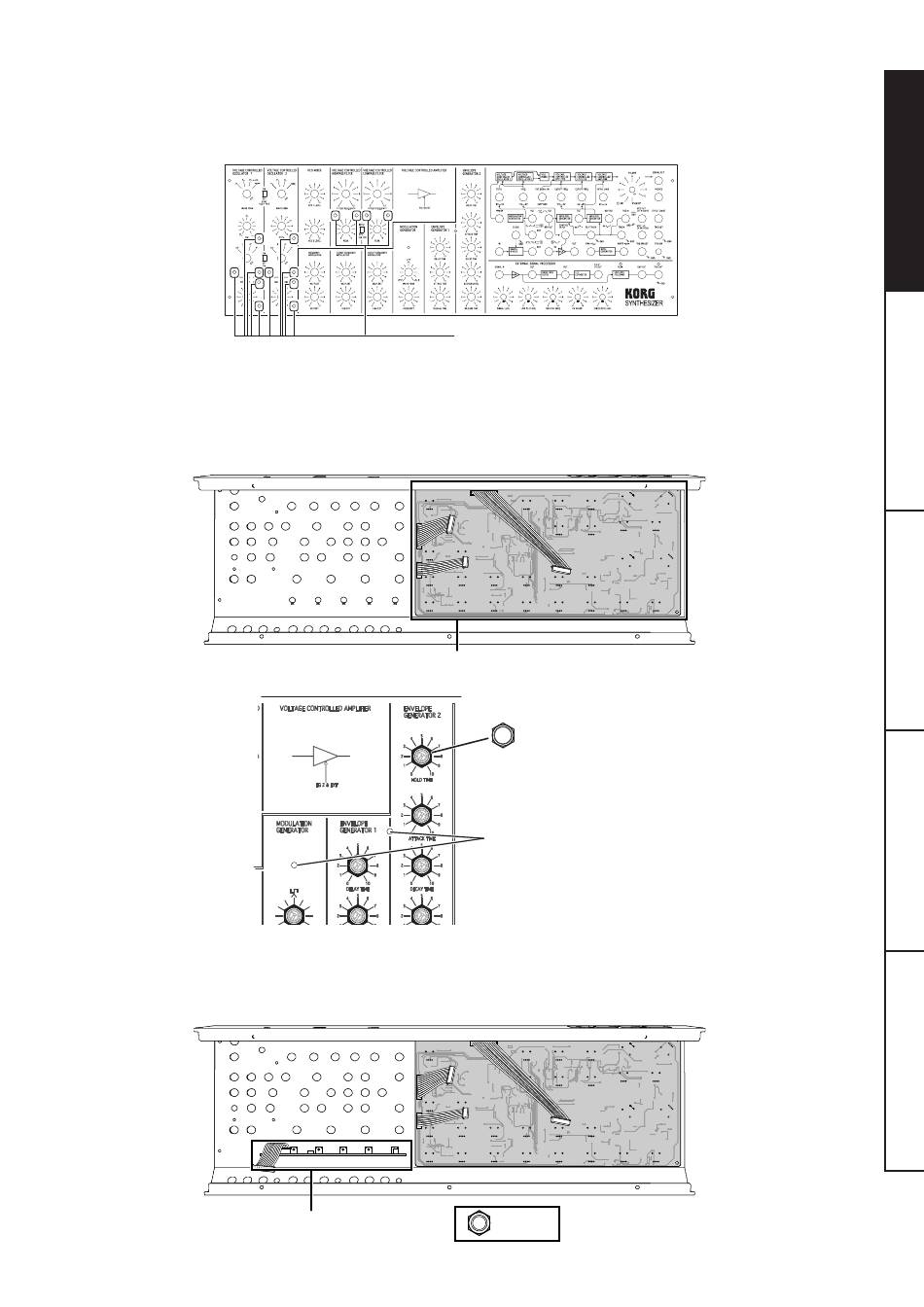

VR circuit board (large)
VR circuit board (small)
rubber bushings
Nut (C)
Verify that the LEDs
fit through the front
panel.
Nut (B)
5
