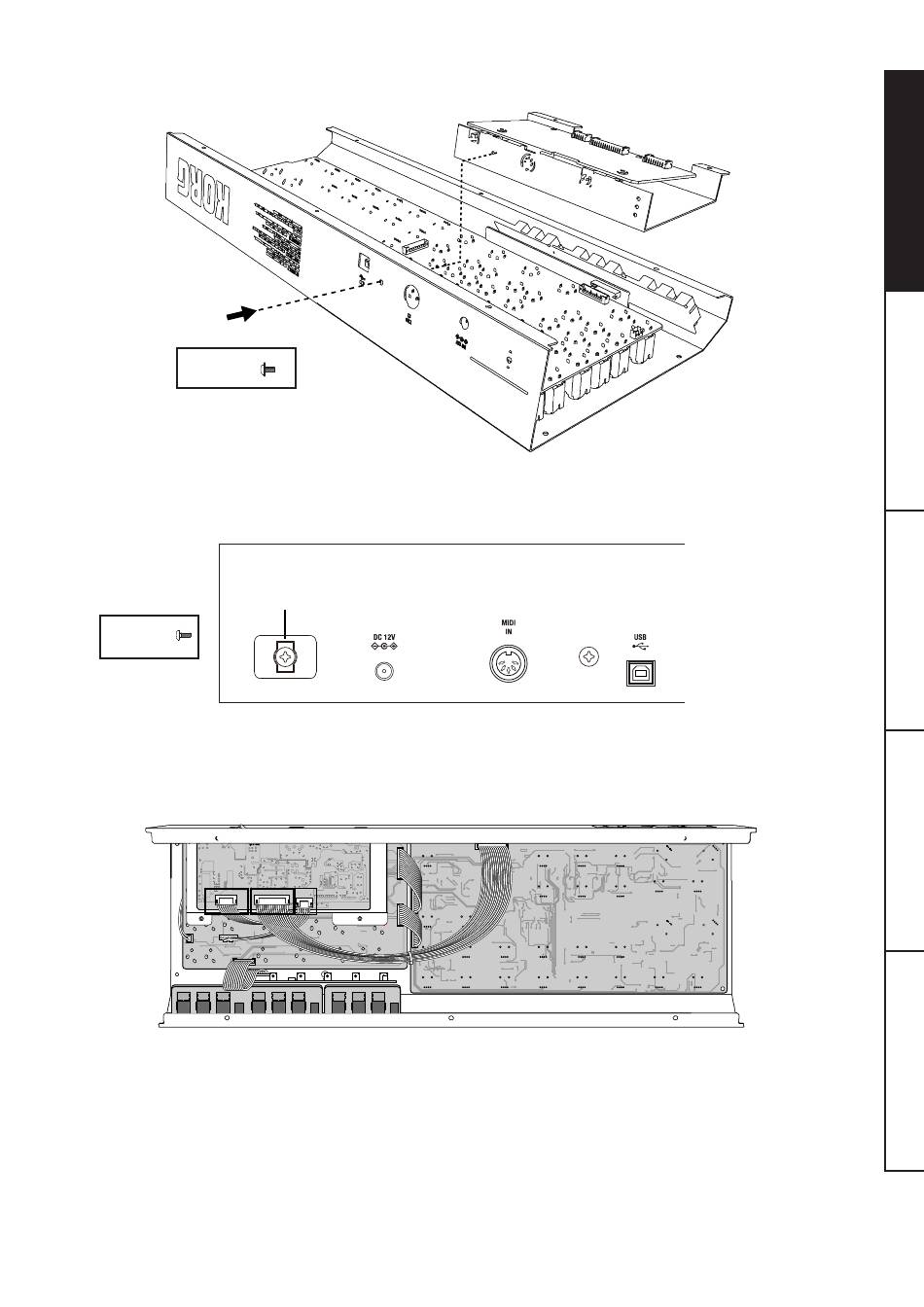

12. Attaching the rear panel jack circuit board unit to the panel with screw (B)
Caution: Be careful not to pinch the cable during this process.
Screw (B)
13. Attaching the cord hook
Attach the cord hook near the DC12V jack with the included screws (B).
Screw (B)
14. Plugging all wiring harnesses into their connectors
Plug the three wiring harnesses into the connectors on the rear jack circuit board unit.
Caution: Be sure to plug the wiring harnesses into connectors with the correct orientation and size (number of pins).
Caution: When closing the bottom panel, be careful not to pinch the wiring harnesses.
cord hook
9
