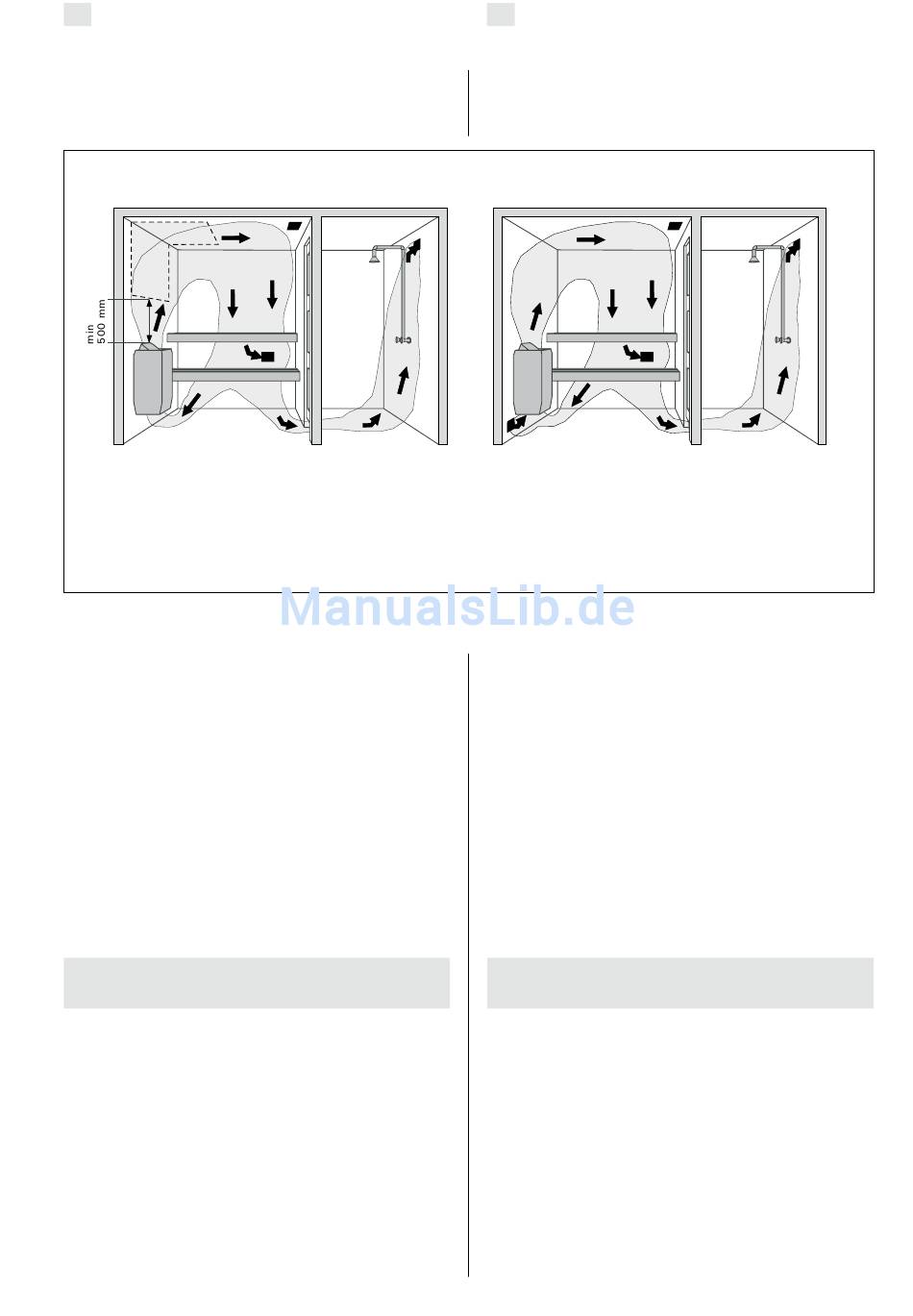

The series of pictures shows examples of
ventilation systems for a sauna room. See fig. 3.
Mechanical ventilation
Maschinelle Ventilation
1
1. Air supply vent placing area.
2. Exhaust air vent.
3. Possible drying valve, which is closed during heating
and bathing. The sauna can also be dried by leaving the
door open after bathing.
4. If there is an exhaust vent in the washing room only, there
should be a minimum 100 mm opening under the sauna
room door. Mechanical ventilation is recommended.
Figure 3.
Ventilation of the sauna room
Abbildung 3. Ventilation in der Saunakabine
2.5. Hygienic Conditions of the Sauna Room
Good hygienic standards of the sauna room will
make bathing a pleasant experience.
The use of sauna seat towels is recommended to
prevent sweat from flowing onto the platforms. The
towels should be washed after each use. Separate
towels should be provided for guests.
It is advisable to vacuum or sweep the floor of the
sauna room in connection with cleaning. In addition,
the floor may be wiped with a damp cloth.
The sauna room should be thoroughly washed at
least every six months. Brush the walls, platforms
and floor by using a scrubbing-brush and sauna
cleanser.
Wipe dust and dirt from the heater with a damp
cloth.
3. INStRUCtIoNS FoR
INStALLAtIoN
3.1. Prior to Installation
Prior to installing the heater, study the instructions for
installation, as well as checking the following points:
Is the output and type of the heater suitable
•
for the sauna room?
the cubic volumes given in table 1 should be followed.
Are there a sufficient number of high quality
•
sauna stones?
Is the supply voltage suitable for the heater?
•
If the house is heated by electricity, does the
•
pilot circuit (contactor) require a supplementary
relay to make the pilot function potentialfree,
because voltage control is transmitted from the
heater when it is switched on?
3
4
2
DE
Falls der Saunaofen in eine Fertigsauna eingebaut
wird, müssen die Ventilationsanweisungen des
Saunaherstellers befolgt werden.
In der Abbildungsserie sind Beispiele für
Ventilationsstrukturen dargestellt. Siehe Abb. 3.
Natural ventilation
Natürliche Ventilation
1
1. Empfohlener Platz für Zuluft.
2. Abluftöffnung.
3. Mögliches Trocknungsventil, das während der Erwärmung und
des Saunens geschlossen ist. Die Sauna kann auch getrocknet
werden, indem die Tür nach dem Saunen offengelassen wird.
4. Falls nur im Waschraum eine Abluftöffnung vorhanden ist, sollte
der Schwellenspalt der Saunatür mindestens 100 mm breit sein.
Eine maschinelle Luftabfuhr ist dann unerläßlich.
2.5. Hygiene in der Saunakabine
Damit das Saunen angenehm ist, muß für die Hy-
giene in der Saunakabine gesorgt werden.
Wir empfehlen in der Sauna auf Saunatüchern zu sit-
zen, damit der Schweiß nicht auf die Bänke läuft. Nach
Gebrauch sollten die Saunatücher gewaschen werden.
Für Gäste sollten Sie eigene Saunatücher bereithalten.
In Verbindung mit der Reinigung der Sauna sollte
der Fußboden der Saunakabine gesaugt / gefegt und
mit einem feuchten Lappen gewischt werden.
Mindestens jedes halbe Jahr sollte die Sauna gründ-
lich geputzt werden. Die Wände, Bänke und der Fußbo-
den der Saunakabine sollten mit einer Bürste und mit
Saunareinigungsmittel abgewaschen werden.
Vom Saunaofen werden Staub und Schmutz mit
einem feuchten Tuch abgewischt.
3. ANLEItUNG FÜR DEN
INStALLAtEUR
3.1. Vor der Montage
Bevor Sie den Saunaofen installieren, lesen Sie die Mon-
tageanleitung und überprüfen Sie folgende Dinge:
Ist der zu montierende Saunaofen in Leistung
•
und Typ passend für die Saunakabine?
Die Rauminhaltswerte in tabelle 1 dürfen weder
über noch unterschritten werden.
Sind genug Saunaofensteine von guter Qualität
•
vorhanden?
Ist die Netzspannung für den Saunaofen geeignet?
•
Falls das Haus elektrisch beheizt wird, benötigt
•
der Steuerkreis (Kontaktor) der Heizung ein
Zwischenrelais, um die Steuerfunktion auf
potentialfrei zu stellen, da vom Saunaofen bei
3
4
2
