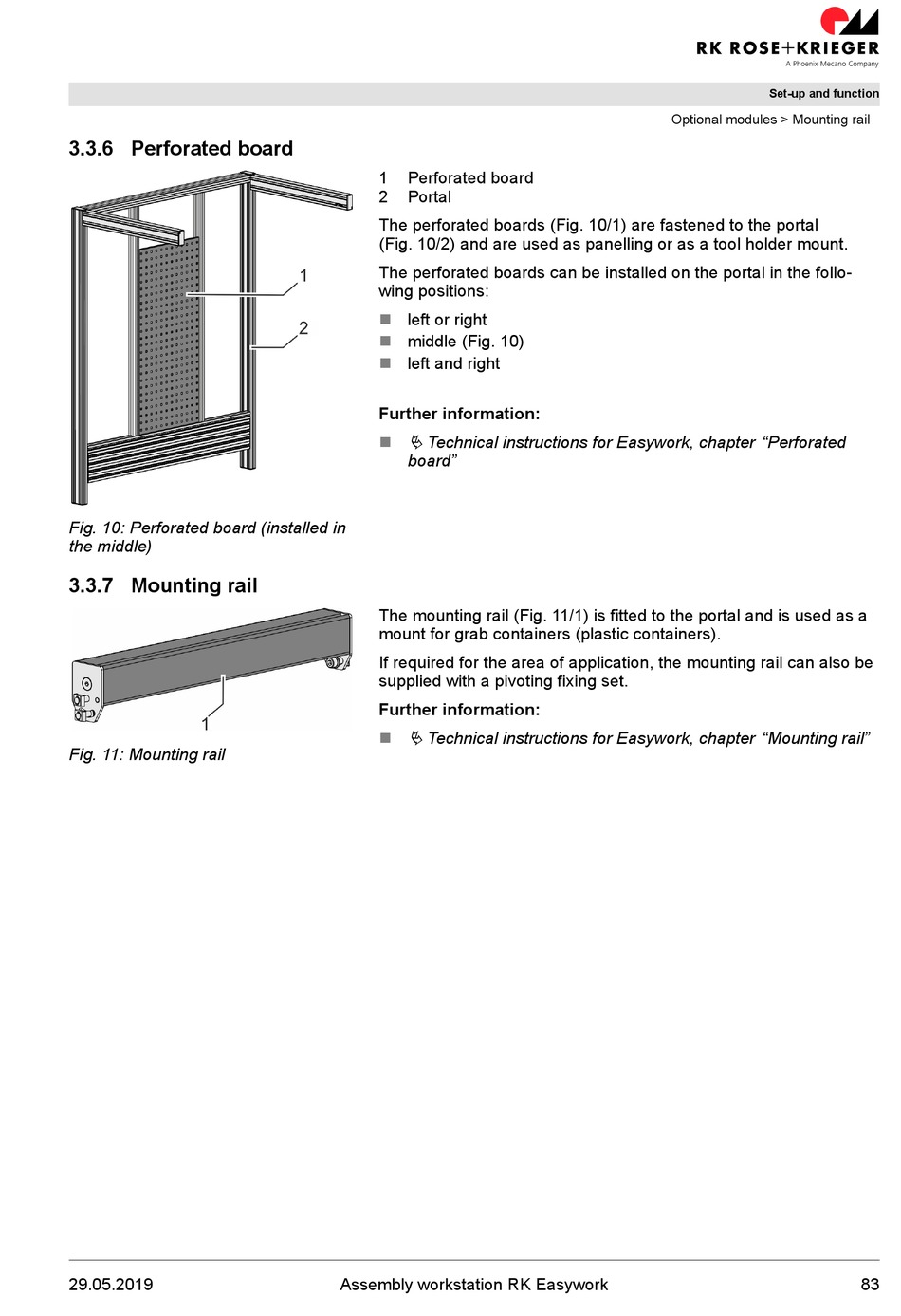

3.3.6 Perforated board

Fig. 10: Perforated board (installed in
the middle)

3.3.7 Mounting rail

Fig. 11: Mounting rail
29.05.2019
1 Perforated board
2 Portal
The perforated boards (Fig. 10/1) are fastened to the portal
(Fig. 10/2) and are used as panelling or as a tool holder mount.
The perforated boards can be installed on the portal in the follo-
wing positions:
n left or right
n middle (Fig. 10)
left and right
n
Further information:
Ä Technical instructions for Easywork, chapter "Perforated
n
board"
The mounting rail (Fig. 11/1) is fitted to the portal and is used as a
mount for grab containers (plastic containers).
If required for the area of application, the mounting rail can also be
supplied with a pivoting fixing set.
Further information:
Ä Technical instructions for Easywork, chapter "Mounting rail"
n
