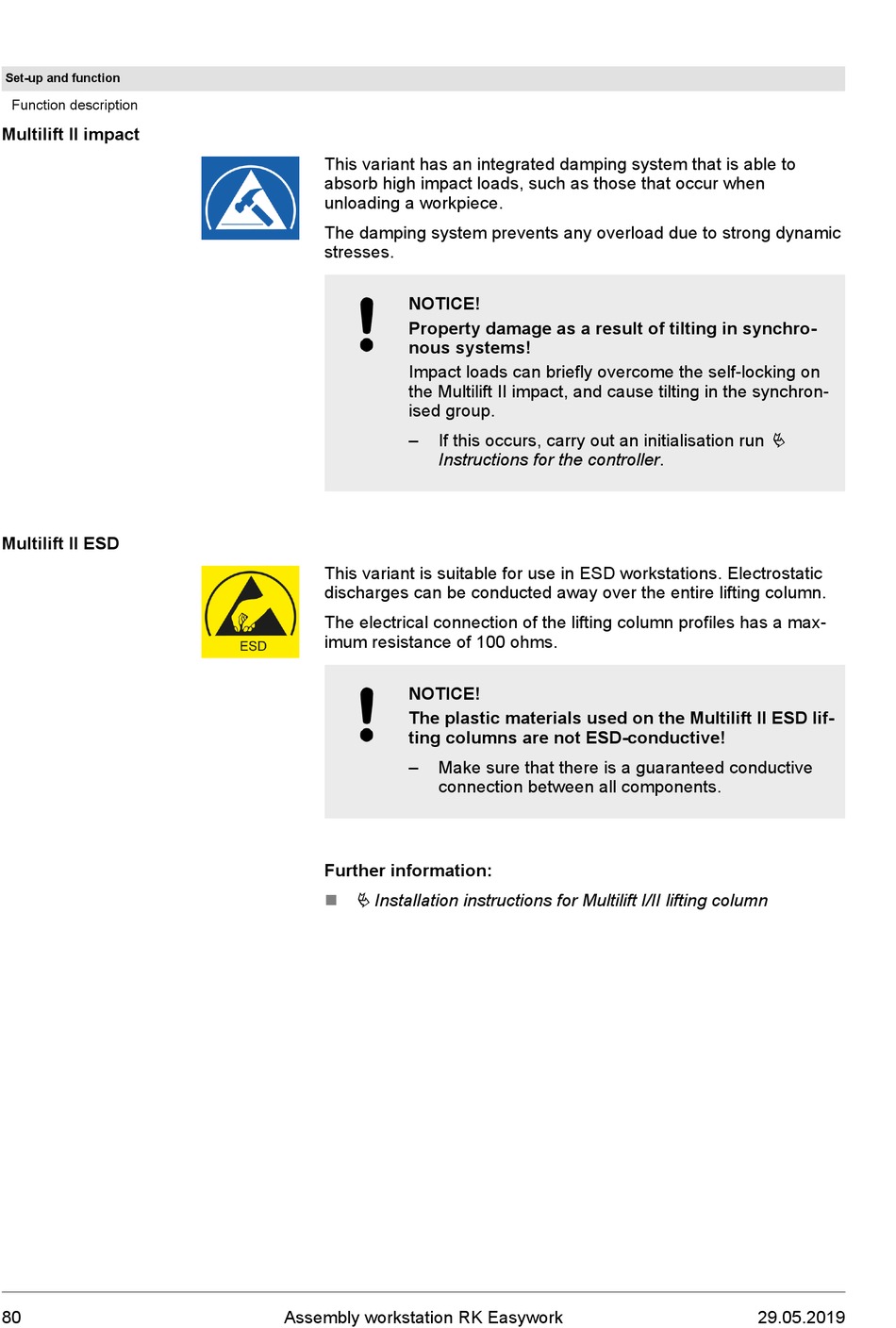

RK Rose+Krieger RK Easywork Betriebsanleitung Seite 80

Set-up and function
Function description
Multilift II impact
Multilift II ESD
80
This variant has an integrated damping system that is able to
absorb high impact loads, such as those that occur when
unloading a workpiece.
The damping system prevents any overload due to strong dynamic
stresses.
NOTICE!
Property damage as a result of tilting in synchro-
nous systems!
Impact loads can briefly overcome the self-locking on
the Multilift II impact, and cause tilting in the synchron-
ised group.
– If this occurs, carry out an initialisation run
Instructions for the controller.
This variant is suitable for use in ESD workstations. Electrostatic
discharges can be conducted away over the entire lifting column.
The electrical connection of the lifting column profiles has a max-
imum resistance of 100 ohms.
NOTICE!
The plastic materials used on the Multilift II ESD lif-
ting columns are not ESD-conductive!
– Make sure that there is a guaranteed conductive
connection between all components.
Further information:
n Ä Installation instructions for Multilift I/II lifting column
Assembly workstation RK Easywork
