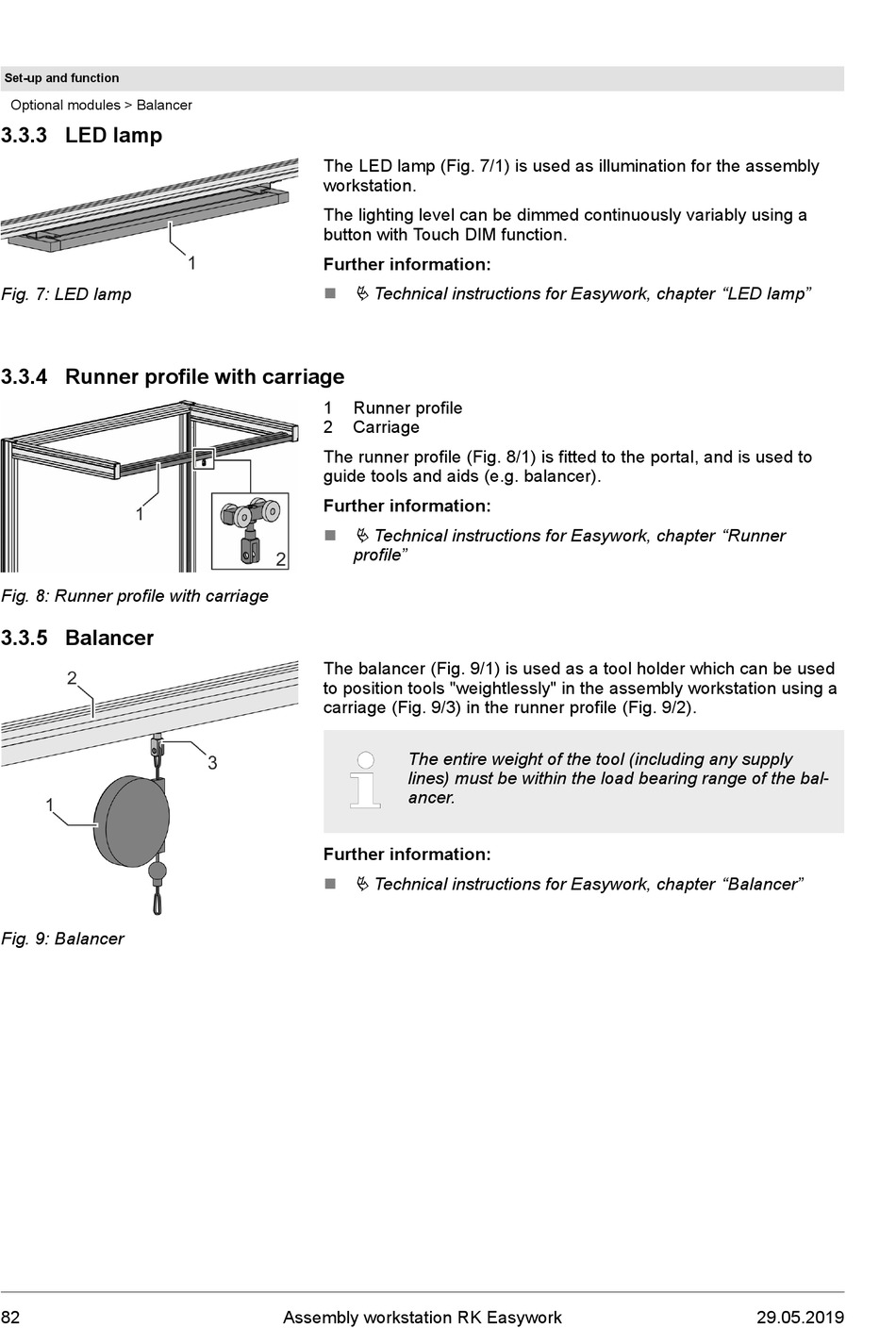

3.3.3 LED lamp

Fig. 7: LED lamp

3.3.4 Runner profile with carriage

Fig. 8: Runner profile with carriage

3.3.5 Balancer

Fig. 9: Balancer
82
The LED lamp (Fig. 7/1) is used as illumination for the assembly
workstation.
The lighting level can be dimmed continuously variably using a
button with Touch DIM function.
Further information:
Ä Technical instructions for Easywork, chapter "LED lamp"
n
1 Runner profile
2 Carriage
The runner profile (Fig. 8/1) is fitted to the portal, and is used to
guide tools and aids (e.g. balancer).
Further information:
Ä Technical instructions for Easywork, chapter "Runner
n
profile"
The balancer (Fig. 9/1) is used as a tool holder which can be used
to position tools "weightlessly" in the assembly workstation using a
carriage (Fig. 9/3) in the runner profile (Fig. 9/2).
The entire weight of the tool (including any supply
lines) must be within the load bearing range of the bal-
ancer.
Further information:
Ä Technical instructions for Easywork, chapter "Balancer"
n
