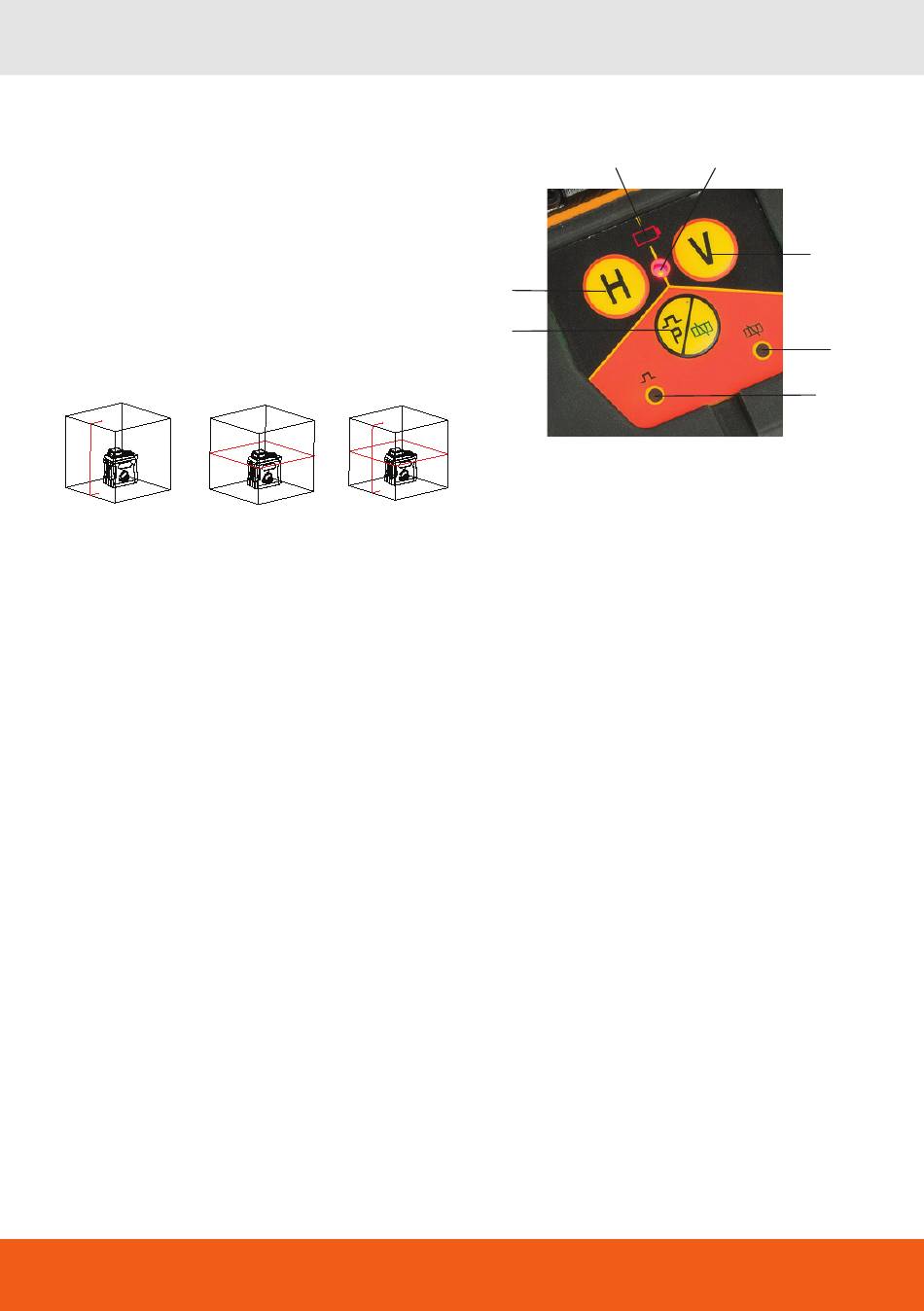

A) ON/OFF-LED instrument G A
B) ON/OFF vertical line V
C) ON/OFF horizontal line H
D) LED MANUAL function
E) ON/OFF manual function / receiving mode
B
F) LED receiving mode
G) Battery status indication
C
E
D
Following lines can be projected:
F

MANUAL FUNCTION

If the instrument is in OFF position press the button (E) to enter into the MANUAL mode; the ON/OFF
LED is illuminated, the MANUAL LED is blinking. Now the instrument can be used in slope mode, the
compensator alarm is off. All lines can now be switched as in standard mode. Switch off the MANUAL
function with the button (E) again.
USE WITH RECEIVER
To prolong the working range or at unfavourable light conditions Geo1X-360 GREEN can be used with
an optional receiver (not included in this kit).
Switch on the desired laser lines and press the button (E) at Geo1X-360 GREEN (the LED for the
corresponding lines flashes).The selected laser lines can now be deteced by the receiver
(the visibility of the laser lines is weaker in this mode).
By use of the receiver the working range can be extended up to 50 meters. For more detailed infor-
mation please see the user manual of the receivers.
Press the button (E) again to quit this mode.
