The Rear Panel at a Glance

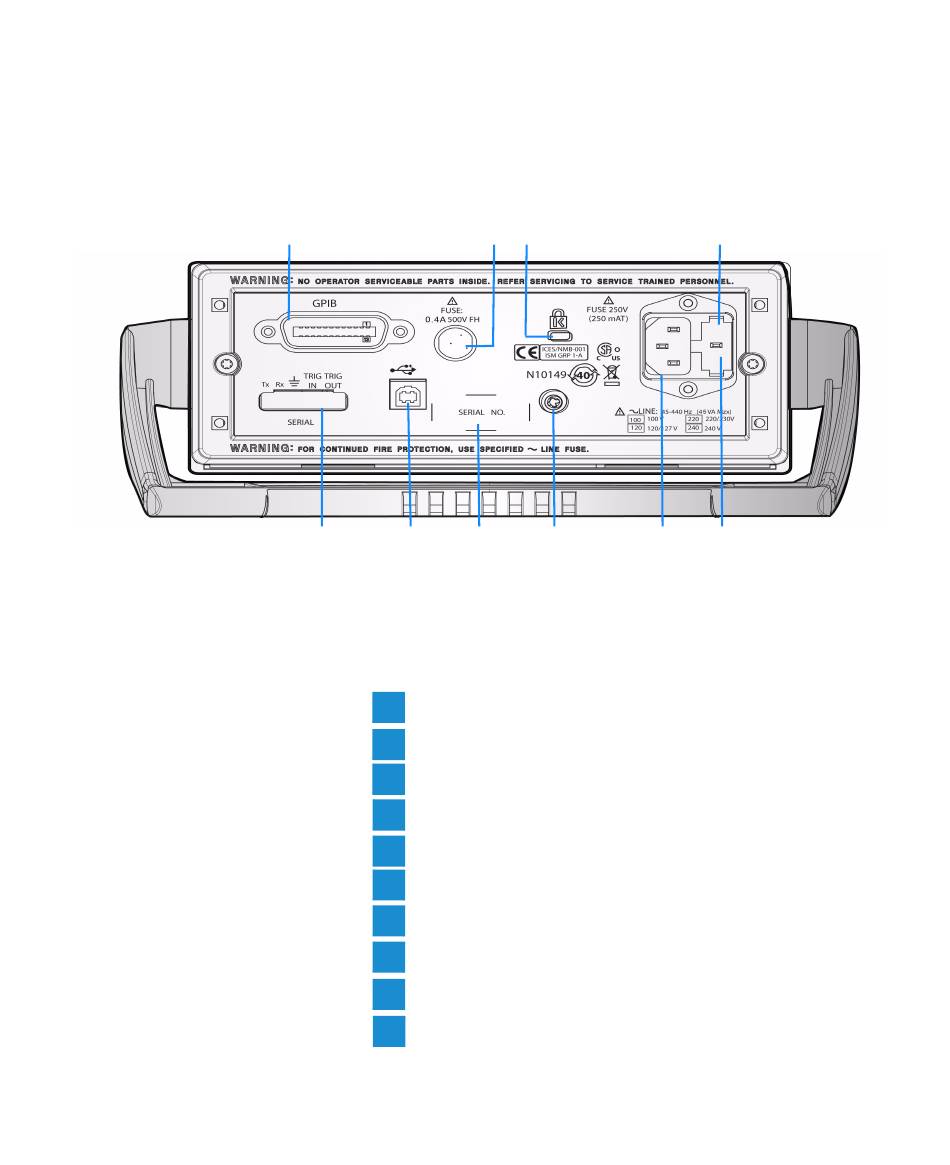

Figure 1-3 Rear panel at a glance
4
3
1 2
Serial Interface Connector
1
USB Interface Connector
2
GPIB - Enable with Option 3445GPBU
3
Current Fuse
4
Model and Serial Number Label
5
6
Kensington Lock
7
Chassis Ground Lug
8
AC Power Connector
AC Line Fuse
9
AC Line Voltage Selector
10
4 6
7
5 7
10
8 9
