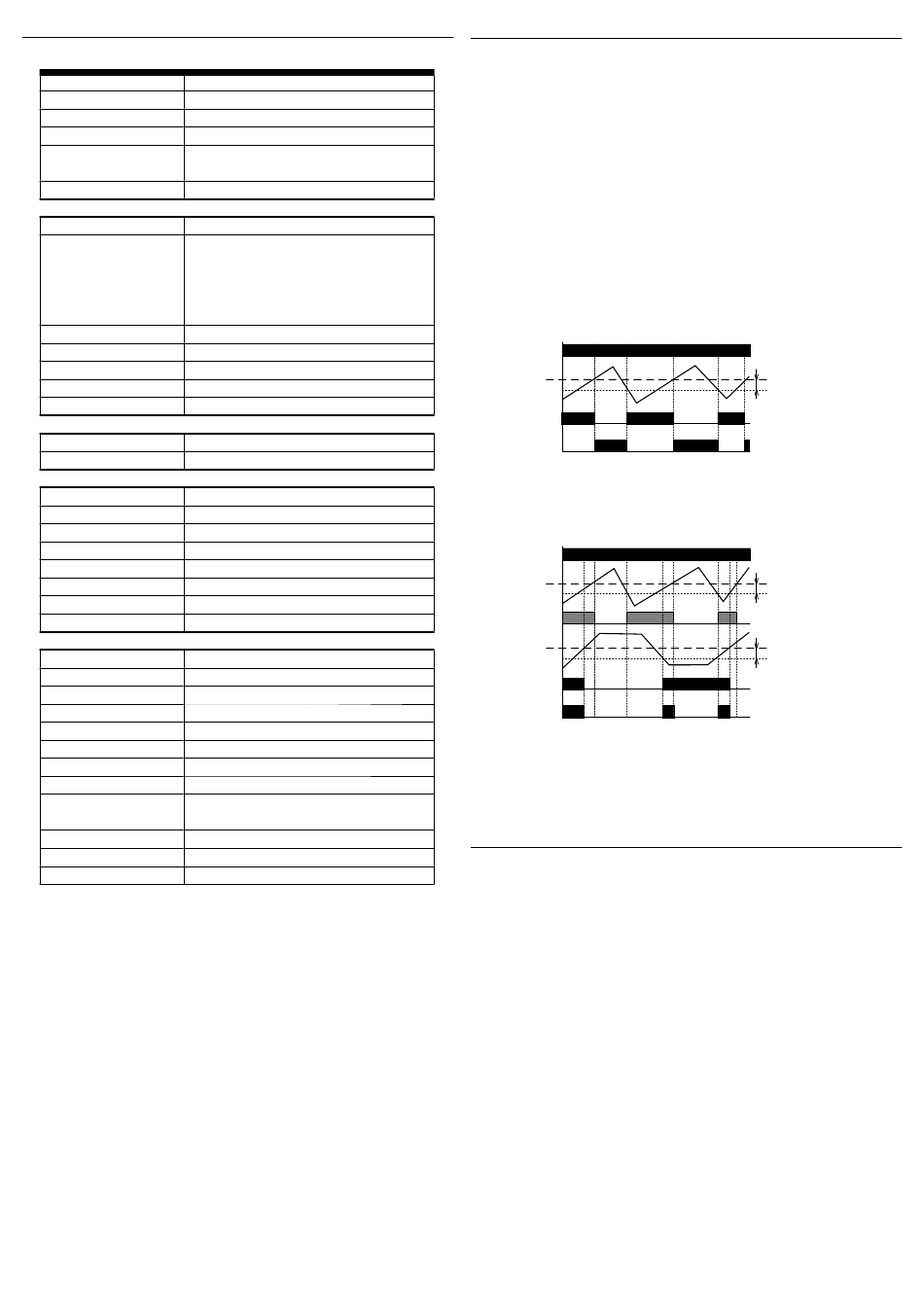

Technical parameters
Function:
Supply terminals:
Voltage range:
AC 230 V (AC 50-60 Hz), AC/DC 24V galvanically separated
Burden max.:
Max. dissipated power
(Un + terminals):
Supply voltage tolerance:
Measuring circuit
Measuring terminals:
Temperatue ranges
-40 .. -25 °C (-458 ..-13 °F)
(set via switch individually
for each level):
+20 .. +35 °C (68 .. 95 °F)
Fine temperature setting:
Hysteresis for T1:
Hysteresis for T2:
Sensor:
Sensor failure indication:
Accuracy
Setting accuracy (mech.):
Temperature dependance:
Output
Number of contacts:
Current rating:
Breaking capacity:
Inrush current:
Switching voltage:
Output indication:
Mechanical life:
Electrical life (AC1):
Other information
Operating temperature:
Storage temperature:
Electrical strength:
Operating position:
Mounting:
Protection degree:
Overvoltage category:
Pollution degree:
Max. cable size (mm
2
):
Dimensions:
Weight:
Standards:
TER-4
double thermostat
A1-A2
5 VA / 2.5 W (AC 230 V), 2 VA / 1.4 W (AC/DC 24 V)
5.5 W
- 15 %; + 10 %
T1-T1 and T2-T2
+35.. +50 °C (95 .. 122 °F)
-25 .. -10 °C (-13 .. 14 °F)
+50.. +65 °C (122 .. 149 °F)
-10 .. +5 °C (14 .. 41 °F)
+65.. +80 °C (149 .. 176 °F)
+5 .. +20 °C (41 .. 68 °F)
+80.. +95 °C (176 .. 203 °F)
+95.. +110 °C (203 .. 230 °F)
0 - 15 °C, in selected range
adjustable, 0.5 or 2.5 °C / 0.9 or 4.5 °F (DIP switch)
adjustable, 0.5 or 2.5 °C / 0.9 or 4.5 °F (DIP switch)
thermistor NTC 12 kΩ/ 25 °C (77 °F)
yellow LED + Red LED fl ashes
5 %
< 0.1 % / °C (°F)
2x changeover / SPDT (AgNi / Silver Alloy)
16 A / AC1
4000 VA / AC1, 384 W / DC
30 A / < 3 s
250 V AC1 / 24 V DC
red LED
7
3x10
0.7x10
5
-20 °C to 55 °C (-4 °F to 131 °F)
-30 °C to 70 °C (-22 °F to 158 °F)
4 kV (supply - output)
any
DIN rail EN 60715
IP40 from front panel / IP20 terminals
III.
2
solid wire max. 1x 2.5 or 2x 1.5 /
with sleeve max. 1x 1.5 (AWG 12)
90 x 52 x 65 mm (3.5˝ x 2˝ x 2.6˝)
230 V - 240 g (8.5 oz), 24 V - 146 g (5.1 oz)
EN 60730-2-9, EN 61010-1
Function
Each thermostat has its own temperature sensor, coarse and fi ne temperature setting,
hysteresis setting and its output relay.
The set temperature is set as the sum of the selected temperature range and fi ne
temperature setting.
Example: Required temperature ....... + 25 °C (77 °F)
Set range ............................... + 20 °C (68 °F)
Fine setting ............................. + 5 °C (41 °F)
The device monitors the failure status of each sensor (short circuit or interruption) - if
the sensor fails, the yellow LED is lit and the corresponding red LED fl ashes. The relevant
relay is disconnected when it fails.
The device can also be operated as a single thermostat (single sensor). In this case, a
10 kΩ resistor (part of the product package) must be connected to the unused input.
Independent thermostat function
Un
T1
15 - 18
heating
15 - 18
cooling
The device acts as 2 single simple thermostats.
Dependent function of thermostats
Un
T1
status T1
T2
25 - 28
15 - 18
The thermostats are connected „in series" - i.e. the thermostat 1 is blocked by thermostat
2. This can be used, for example, when thermostat 1 is operational and the thermostat 2
is blocked (emergency - for example, when overheating the device).
Warning
Device is constructed for connection for 1-phase main or DC circuits (according to types,
it is necessary to observe voltage ranges) and must be installed in accordance with
regulations and standards applicable in a country of use. Connection according to the
details in this direction. Installation, connection, setting and servicing should be installed
by qualifi ed electrician staff only, who learn this instruction and functions of device. For
right device protection should be fronted-end certain element. Before starting installation
must be main switch in position "SWITCH OFF" and device should be out of voltage. Don´t
install device to suppliers surcharge electro-magnetic interference. By right installation
of device is provide good air circulate to don´t pass maximal operating temperature,in
case of higher ambient temperature and permanent working. For installation and setting
use screw-driver cca 0.1˝ (2 mm). The device is full-electronic - installation should be
eff ected according to this. Function without problems is too dependent on previous
type of transportation, storing and manipulation. In case of any vestige of destruction,
deformation, non-function or missing part, don´t install and made claim to seller. Product
may be, after passing operating time, disassemled, recycled or puted on protected tip.
2 / 2
T1- set temperature of
thermostat
H - set hysteresis of
thermostat
H
T1(2) - set temperature of
thermostat 1(2)
H1(2) - set hysteresis of
thermostat 1(2)
H 1
H 2
