11

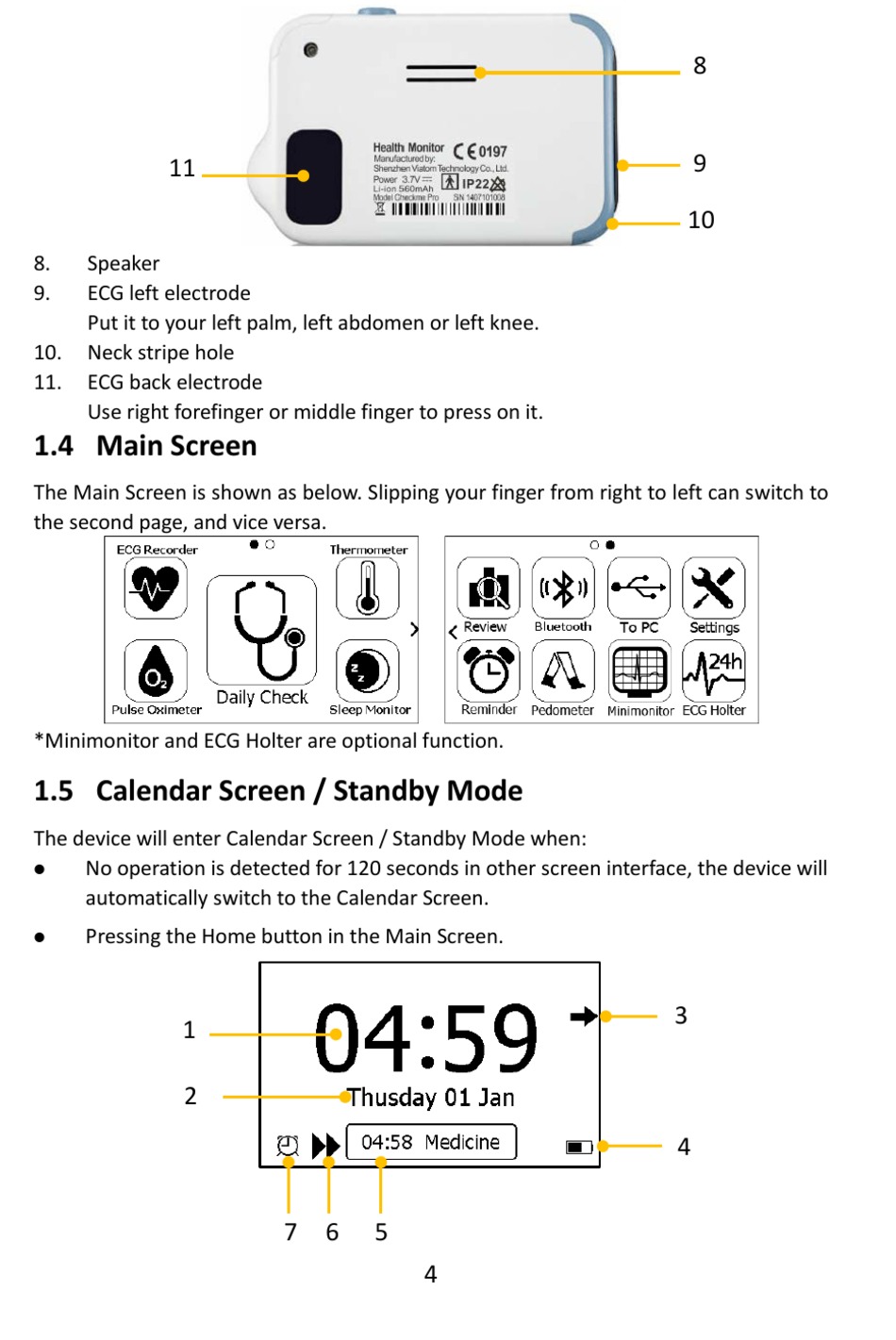

8. Speaker
9. ECG left electrode
Put it to your left palm, left abdomen or left knee.
10. Neck stripe hole
11. ECG back electrode
Use right forefinger or middle finger to press on it.

1.4 Main Screen

The Main Screen is shown as below. Slipping your finger from right to left can switch to
the second page, and vice versa.
*Minimonitor and ECG Holter are optional function.
1.5 Calendar Screen / Standby Mode
The device will enter Calendar Screen / Standby Mode when:
No operation is detected for 120 seconds in other screen interface, the device will

automatically switch to the Calendar Screen.
Pressing the Home button in the Main Screen.

1
2
7 6 5
4
8
9
10
3
4
