► ROTWILD Mountainbikes / Racingbikes and their components

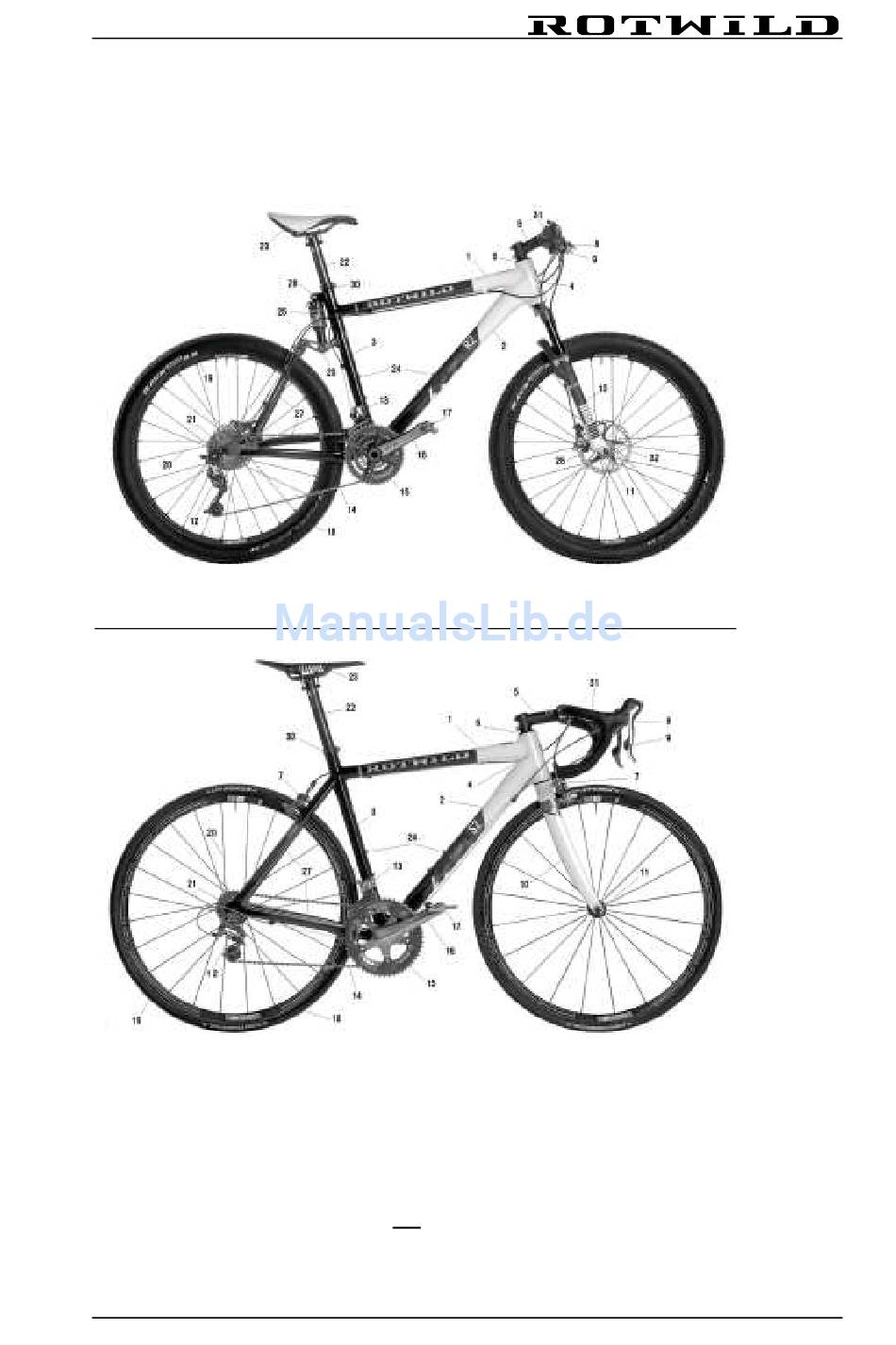

You can use these illustrations to find most of the components of your bike. These
are, however, only examples. Your individual mountain bike or racing bike may have a
different construction – particularly if you purchased it as a framekit. This user's
manual is only valid for ROTWILD mountain bikes, ROTWILD racing bikes and ROT-
WILD CrossRoad bikes – it does not apply to bikes intended for use in areas governed
by traffic regulations.
ROTWILD 2007/2008 – Änderungen vorbehalten / Subject to change
1. Top tube
2. Down tube
3. Seat tube
4. Head tube
5. Stem
6. Headset
7. Rim brake
8. Brake lever
9. Shift lever
10. Suspension
fork
11. Hub
12. Rear derailleur
13. Derailleur
14. Chain
15. Chain rings
16. Crank
17. Pedals
18. Tyres / Tubu-
lars
19. Rim
20. Spoke
21. Sprocket
22. Seat post
23. Saddle
24. Bottle cage
25. Shock absorber
26. Disc mount
27. Rear frame/
rocker
28. Shock absorber
mount, main
frame
29. Shock absorber
mount, linkage
30. Saddle clamp
31. Handlebars
32. Disc / Brake
disc
