Thermostat installation

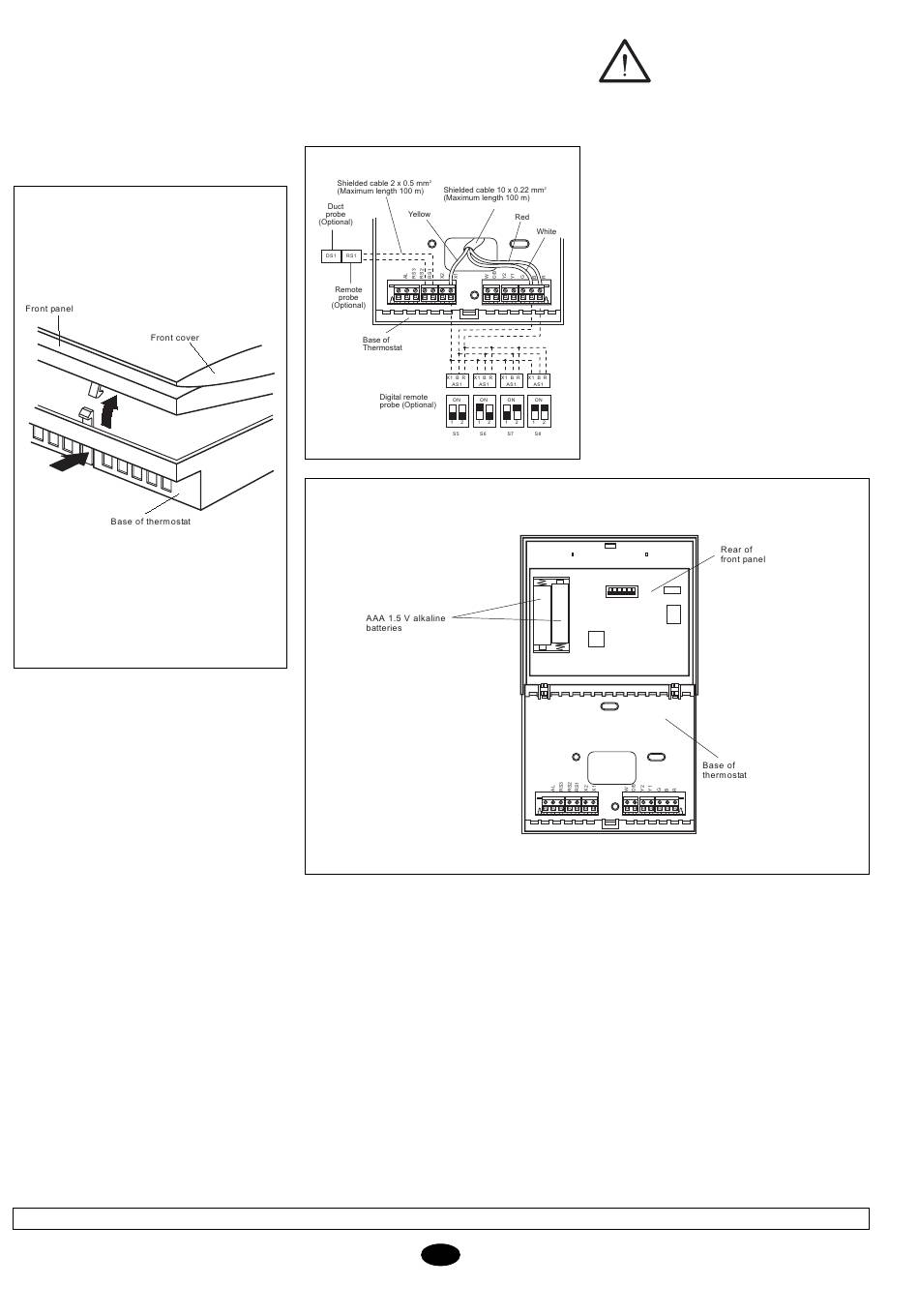

To fasten the thermostat to the wall, open
the front panel and uncover the base of the
thermostat. Proceed as shown in the fol-
lowing illustration:
1- Press the plastic tab at the base of the
thermostat, as indicated by arrow A.
2- While pressing A, raise the front panel
as indicated by arrow B.
B
A
The fastening holes found at the base co-
incide with the standard electric boxes on
the market.
In the case the connecting cable does not
come from the electric box, the thermostat
must be fastened to the wall with the an-
chors and screws supplied.
Keep in mind that the rectangular hole in
the centre of the base is to house the elec-
tric connecting cable.
Data and measurements are subject to change without prior notice.
14
Standard electric connections,
thermostat DPC-1
(for thermostat
with communication)
Once the base is fastened to the wall, wire
the thermostat as shown in the following
illustration:
GB
Caution
A screened 10 x 0.22 mm² cable,
with a maximum length of 100 m.,
should be used between the ther-
mostat and the control board.
Connections to be carried out are R, B and
X1. (The other 7 wires are necessary to
connect G, Y, Y2, O/B and W if you wish to
use a thermostat with relays)
To connect the remote sensor use screened
2 x 0.5 mm 2 cable with a maximum length
of 100 m. between the thermostat and the
sensor. The connections to be carried out
are RS1 and RS2.
To connect the digital remtoe probe use
screened 3 x 0.5 mm 2 cable, with a maxi-
mum length of 100m, between the thermo-
stat and the kast probe. Connections to be
mode R, B and X1.
For correct operation of the thermostat, it is
indispensable to have made electric wir-
ing properly, and have inserted the two AAA
1.5 V alkaline batteries at the rear of the
front panel, as shown below:
