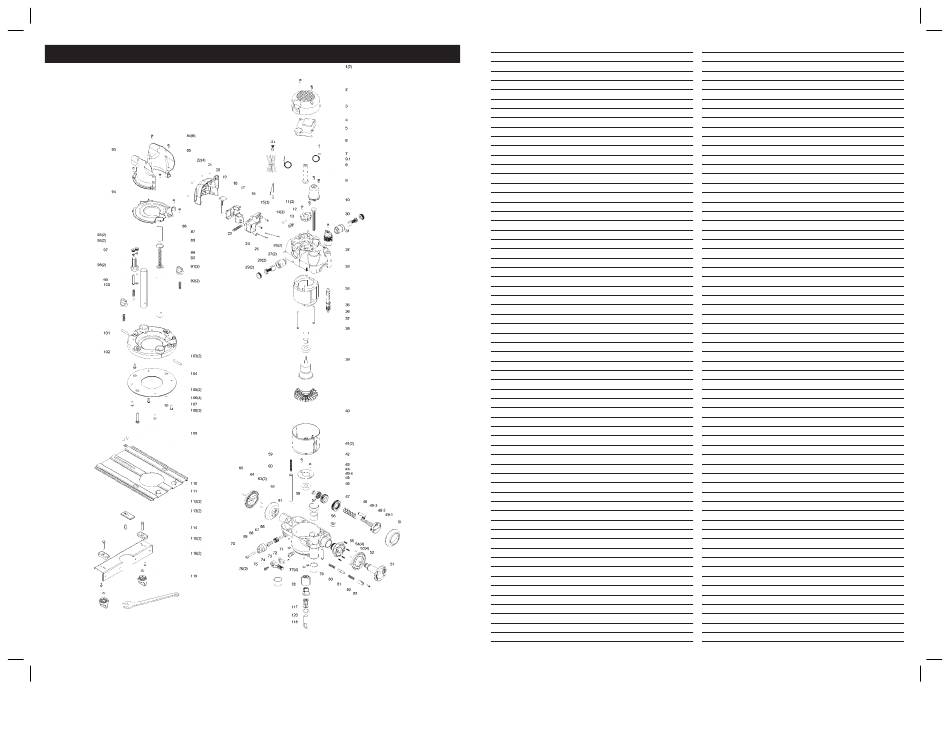

SPARES LISTING
- Page 58 -
1 TRA067 Screw, motor top cover
2
TRA007 Motor top cover
3 TRA027 Speed controller
4 TRC057 Plug and cord
5 TRA068 Brush connection B
6 TRA069 Brush connection A
7 TRA018 Cord relief
8 TRA070 Screw, rack post cap
9 & 10 TRA136 Rack post guide assembly
11
TRA071 Screw, upper armature bearing plate
12 TRA016 Upper armature bearing plate
13 TRA017 Cord restraint
14
TRA072 Screw, cord restraint
15 TRA073 Screw, switch mount
16 TRA019 Switch mount
17
TRA054 Switch
18 TRA020 Slide cover, switch
19 TRA034 Guide, depth stop spring
20 TRA006 Housing cover, switch end
21 TRA074 Screw, switch cover, short
22 TRA075 Screw, switch cover, long
23 TRA076 Spring, switch cover
24 TRA077 Connecting wire, brown
25
TRA078 Connecting wire, blue
26 TRA079 Screw, brush holder
27 TRA056 Brush holder
28
TRA055 Brush
29 TRA080 Cap, brush holder
30 TRA081 Screw, micro adjust knob
31
TRA035 Micro adjust knob
32 TRA005 Upper motor body
33 TRA003 Field
34 TRA036 Worm shaft, metric
35 TRA082 Screw, field
36 TRA083 Magnet ring
36&37 TRA127 Magnet ring & mount assembly
37 TRA084 Mount, magnet ring
38 TRA085 Upper armature bearing
39 TRA002 Armature
40 TRA024 Fan shroud
41
TRA086 Screw, lower armature bearing plate
42 TRA015 Lower armature bearing plate
43 TRA014 Lower armature bearing
44
TRA087 E ring
45 TRA044 Clutch plate
46 TRA043 Plunge pinion
47 TRA037 Worm wheel, metric
48 TRA088 Spring, plunge selector
49.1 TRA040 Plunge selector
49.2 TRA132 Spring
49.3 TRA131 Plunge selector rear
50 TRA038 Plunge handle outer
51 TRA041 Plunge handle shaft
52 TRA039 Plunge handle inner
53
TRA089 Screw, plunge handle
54 TRA090 Spring, release ring
55 TRA042 Release ring
56
TRA047 Bush, metric worm
57 TRA091 Reinforcing ring
57, 58, 76 TRA052 Lower motor body & bush assembly
58 TRA004 Lower motor body
59 TRA092 Spring, depth stop
60 TRA033 Depth stop tube
61 TRA058 Plug, depth stop tube
62 TRA046 Fixed handle inner
63
TRA093 Screw, fixed handle inner
64 TRA045 Fixed handle outer
65 TRA094 Screw, fixed handle outer
66 TRA032 Depth stop brass plug
67 TRA133 Depth stop knob spring
68 TRA049 Bolt, plunge lock
69 TRA134 Depth stop knob
70 TRA135 Depth stop screw
71
TRA049 Bolt, plunge lock
72 TRA098 Screw, plunge lock lever plate
73 TRA050 Plate, plunge lock lever
74
TRA048 Plunge lock lever
75 TRA099 Screw, plunge lock lever
76 TRA051 Bush, rack and smooth posts
77
TRA101 Screw, motor body
78 TRA013 Chuck Assembly
78.1 TRA102 Chuck body
78.2 TRA103 Chuck inner
79 TRA104 Spring, shaft lock (inner)
80 TRA026 Pin, shaft lock
81 TRA105 Spring, shaft lock (outer)
82 TRA025 Button, shaft lock
83
TRA106 Screw, shaft lock button
84 TRA107 Screw, chip shield
85 TRA022 Chip shield, rear
86
TRA108 Liner, rack post
87 TRA109 Snap ring, rack post
88 TRA110 Spring, rack post
89
TRA010 Rack post
90 TRA011 Smooth post
91 TRA064 Knob, fence attachment
92 TRA111 Spring, fence attachment knob
93 TRA021 Chip shield, front
94 TRA023 Vacuum shield
95 TRA030 Turret wheel
96 TRA112 Nut, turret wheel
97 TRC028 Turret
98 TRA113 Screw, turret wheel
99 TRA114 Spring, turret
100
TRA029 Turret detent ball
101 TRA008 Base
89,90,101,103TRA125 Base & post assemly
102
TRA115 Screw, turret pivot
103 TRA116 Roll pin, posts
104 TRA009 Base plate
105 TRA117 Coach bolt, fence attachment
106 TRA118 Screw. baseplate
107 TRA119 Wing nut, circle cutter
107 to 111 TRA128 Fence plate & circle cutter assembly
108 TRA120 Washer, circle cutter
109 TRA059 Fence plate
110 TRA063 Circle cutter pivot
111 TRA121 Bolt, circle cutter
112
TRA122 Bolt, fence slide clamp
112 to 116 TRA126 Fence assembly
113 TRA061 Fence slide clamp
114
TRA060 Fence slide face
115 TRA123 Screw, fence slide clamp
116 TRA062 Knob, fence slide clamp
117 TRA129 1/4" reduction collet
118 TRA124 1/2" cutter
119 TRA066 Spanner
