TITANIUM 400 AC/DC
The cooling unit (AUTO / ON / OFF) and the PURGE function of the cooling unit:
- AUTO: activation during welding and deactivation of the cooling unit 10 minutes after the end of welding.
- ON: the cooling unit is permanently controlled.
- OFF: the group is disabled.
- PURGE: function dedicated to purging the cooling unit or filling beams, the protections are then inhibited.
Product Reset (Partial / Total) :
- Partial (default value of the welding cycle).
- Total (factory configuration).

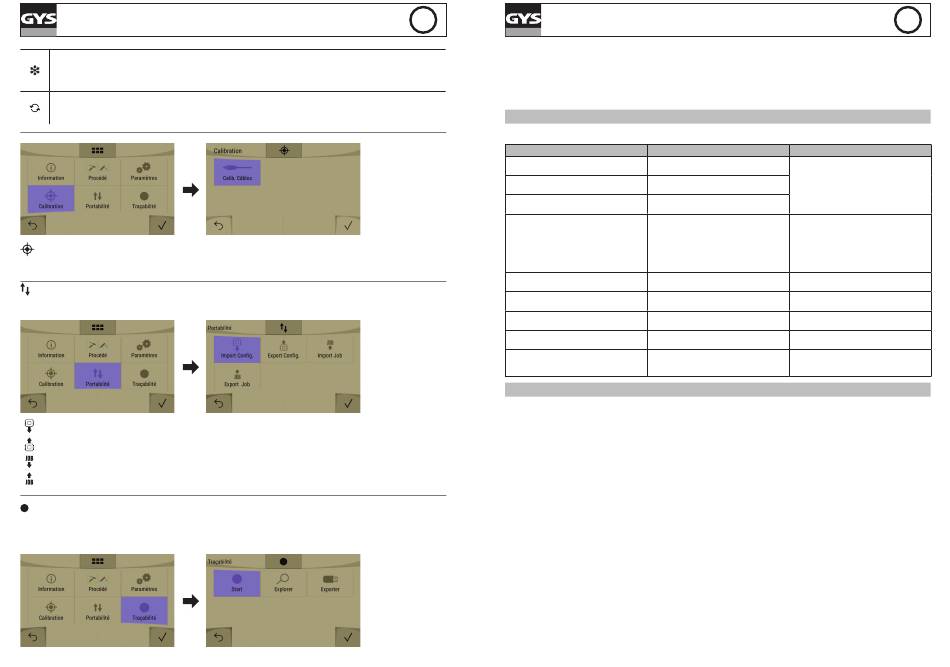

CALIBRATION
This mode is dedicated to the calibration of welding accessories such as torch, cable + electrode holder and cable + earth clamp. The calibration is
designed to compensate variables such as the length of the accessories in order to adjust the measurement of the voltage and improves the calcu-
lation of the energy. The procedure once launched is explained with an animation on the screen.
PORTABILITY
This feature allows you to save the welding configuration of the machine.
It also allows you to load a recovered configuration on another machine and inject it into another.
Import Config. : Importing a USB key one or more «USER» configurations and its JOBs.
Export Config : export the current «USER» configuration and its JOBs to a USB stick.
JOB import: import of JOBs present under the USB directory of a USB key.
JOB export : export the JOBs to a USB key according to the processes in a USB\Portability directory.
TRACEABILITY
This welding management interface allows you to trace/record all the steps of the welding operation, bead by bead, during industrial manufactu-
ring.
This qualitative approach ensures a post-production welding quality that allows the analysis, evaluation, reporting and documentation of the
recorded welding parameters. This feature complies with EN 3834.
44
EN
This mode allows the recording of weld seams and the recovery of this data via an export to a USB stick. These data will be processed in.CSV
format.
When «Start» is started in this mode, a working session is created and all welding will be recorded under it, named and time-stamped.
The «Explore» function allows you to access the list of created work sessions, sort them and also delete them. The picto allows you to see the
details of each session with the following information: sampling frequency, number of beads recorded, total welding time, welding energy supplied,
configuration of each bead (process, time stamp, welding time and welding U-I).
The recovery of this information is done by exporting the data to a USB key.
ERROR MESSAGE, ANOMALIES, CAUSES AND SOLUTIONS
This device integrates a default management system. In the event of a failure, the following error messages may appear:
ERROR CODE / SYMPTOMS
OVERVOLTAGE FAULT
Check the electrical installation
UNDERVOLTAGE FAULT
Check the electrical installation
PHASE FAULT
Check the electrical installation
GENERATOR
Thermal protection
FAN
Fan failure
COOLING UNIT FAILURE
Cooling unit not detected
FAILURE DEBIT
Blocked cooling circuit
WATER LEVEL FAILURE
Check the water level
COLD GROUP
Thermal protection

WARRANTY

The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).
The warranty does not cover:
• Transit damage.
• Normal wear of parts (eg. : cables, clamps, etc..).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).
In case of failure, return the unit to your distributor together with:
- The proof of purchase (receipt etc ...)
- A description of the fault reported.
TITANIUM 400 AC/DC
CAUSES
Mains voltage out of tolerance.
Have your electrical installation checked by an
authorised person. The voltage between the
Mains voltage out of tolerance.
3 phases must be between 340 Veff and 460
Veff.
The installation has a missing or unbalanced
phase
- Wait for the indicator to turn off before resu-
ming welding.
- Observe the operating factor and ensure
- Exceeding the duty cycle.
good ventilation.
- Blocked air inlets.
- The use of the optional dust filter (ref.
046580) reduces the duty cycle of the
machine.
Please disconnect the machine, check and
The fan is not running at the right speed.
restart.
Check the connection between the cooling unit
The cooling unit is not detected.
and the appliance.
The debit is below the recommended minimum Check the continuity of the circulation of the
level for water cooled torches. cooling liquid in the torch.
The level is below the minimum Fill the cooling unit's tank.
- Wait for the indicator to turn off before resu-
- Exceeding the duty cycle.
ming welding.
- Blocked air inlets.
- Dust off the cooling unit by blowing air.
EN
SOLUTIONS
45
