Post-gas 0 - 60 sec.

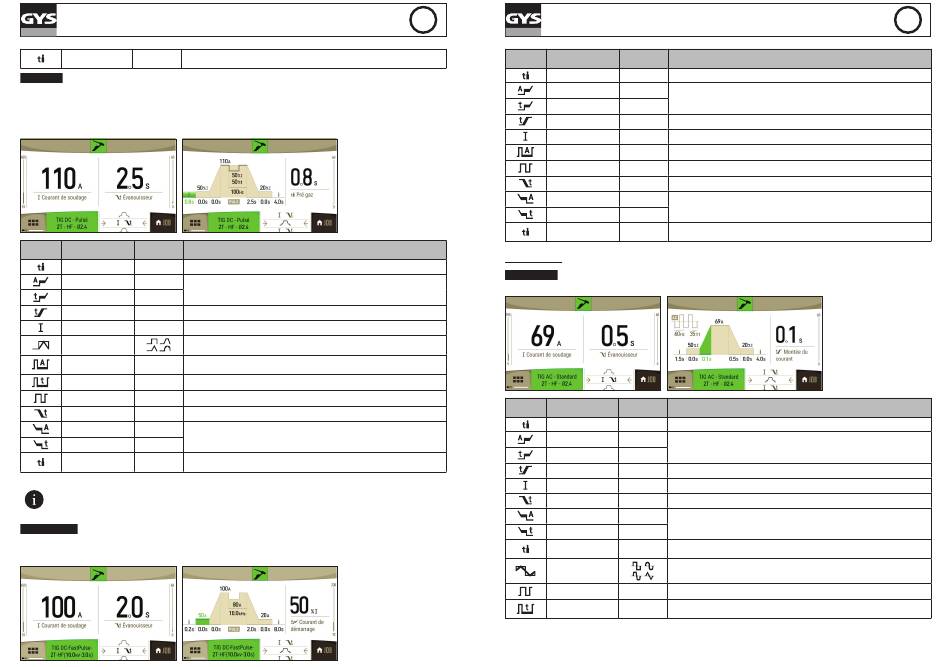

TIG DC - Pulse
This pulsed current welding mode is a combination of high current pulses (I, welding pulse) and low current pulses (I_Cold, part cooling pulse).
This pulse mode allows to assemble pieces while while keeping the machine cooler.
Example :
The I welding current is set to a 100A and % (I_cold) = 50%, thus a Cold current of = 50% x 100A = 50A.
F(Hz) is set to 10Hz, the signal period will be 1/10Hz = 100ms -> every 100ms, one pulse at 100A then another at 50A will follow one another.
Adjustable
Settings Designation
settings
Pre-gas 0 - 60 sec.
Starting current 10 - 200 %
Starting time 0 - 10 sec.
Rising current 0 - 60 sec.
Welding current 3 - 400 A
Wave shape
Cold current/Back-
20 - 80%
ground current)
Cold weather 20 - 80%
Pulse frequency 0.1 - 2500 Hz
Downslope 0 - 60 sec.
End current 10 - 200 %
End duration 0 - 10 sec.
Post-gas 0 - 60 sec.
ADJUSTMENT TIPS : The choice of frequency
• If welding with manual metal input, then F(Hz) synchronized to the input gesture,
• If thin without supply (< 0.8 mm), F(Hz) > 10Hz
• Welding in position, then F(Hz) < 100Hz
TIG DC – Fast Pulse
This very high frequency pulsed current welding mode combines high current pulses (I, welding pulse) with low current pulses (I_Cold, part cooling
pulse). Fast Pulse mode allows to keep the arc constriction properties of Pulse mode at high frequencies but still on less unpleasant or even inau-
dible sound frequencies for the welder.
34
Duration for which gas is released after the arc has stopped. It protects the weld pool
and the electrode against oxidisation when the metal is cooling down.
Description & advice
Time to purge the torch and to protect the area with gas before ignition
This starting bearing current is a phase before the current rise ramp.
Current rise ramp.
Welding current.
Waveform of the pulsed part.
Second welding current known as "cold" welding current
Time balance of the warm current (I) of the pulsation
Pulse frequency
Downslope current.
This stopping stop current is a phase after the current descent ramp.
Duration for which gas is released after the arc has stopped. It protects the weld pool
and the electrode against oxidisation when the metal is cooling down.
EN
Settings Designation
Pre-gas
Starting current
Starting time
Rising current
Welding current
Cold weather
Pulse frequency
Downslope
End current
End duration
Post-gas
TIG AC WELDING
TIG AC - Standard
This TIG AC - Standard welding mode is dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMg, AlMn...). Alternating current allows the
pickling of aluminium essential for welding.
Settings Designation
Pre-gas
Starting current
Starting time
Rising current
Welding current
Downslope
End current
End duration
Post-gas
AC wave shape
Welding frequency
Percentage of
pickling
TITANIUM 400 AC/DC
Adjustable
Description & advice
settings
0 - 60 sec. Time to purge the torch and to protect the area with gas before ignition
10 - 200 %
This starting bearing current is a phase before the current rise ramp.
0 - 10 sec.
0 - 60 sec. Current rise ramp.
3 - 400 A Welding current.
80% - 100 % Second welding current known as «cold» welding current
10 - 20 kHz Pulse frequency
0 - 60 sec. Downslope current.
10 - 200 %
This stopping stop current is a phase after the current descent ramp.
0 - 10 sec.
Duration for which gas is released after the arc has stopped. It protects the weld pool
0 - 60 sec.
and the electrode against oxidisation when the metal is cooling down.
Adjustable
Description & advice
settings
0 - 60 sec. Time to purge the torch and to protect the area with gas before ignition
10 - 200 %
This starting bearing current is a phase before the current rise ramp.
0 - 10 sec.
0 - 60 sec. Current rise ramp.
3 - 400 A Welding current.
0 - 60 sec. Downslope current.
10 - 200%
This stopping stop current is a phase after the current descent ramp.
0 - 10 sec.
Duration for which gas is released after the arc has stopped. It protects the weld pool
0 - 60 sec.
and the electrode against oxidisation when the metal is cooling down.
AC waveform.
20 - 300 Hz Frequency of polarity reversals welding - pickling
20 - 60 % Percentage of the welding period dedicated to pickling (default 30-35%)
