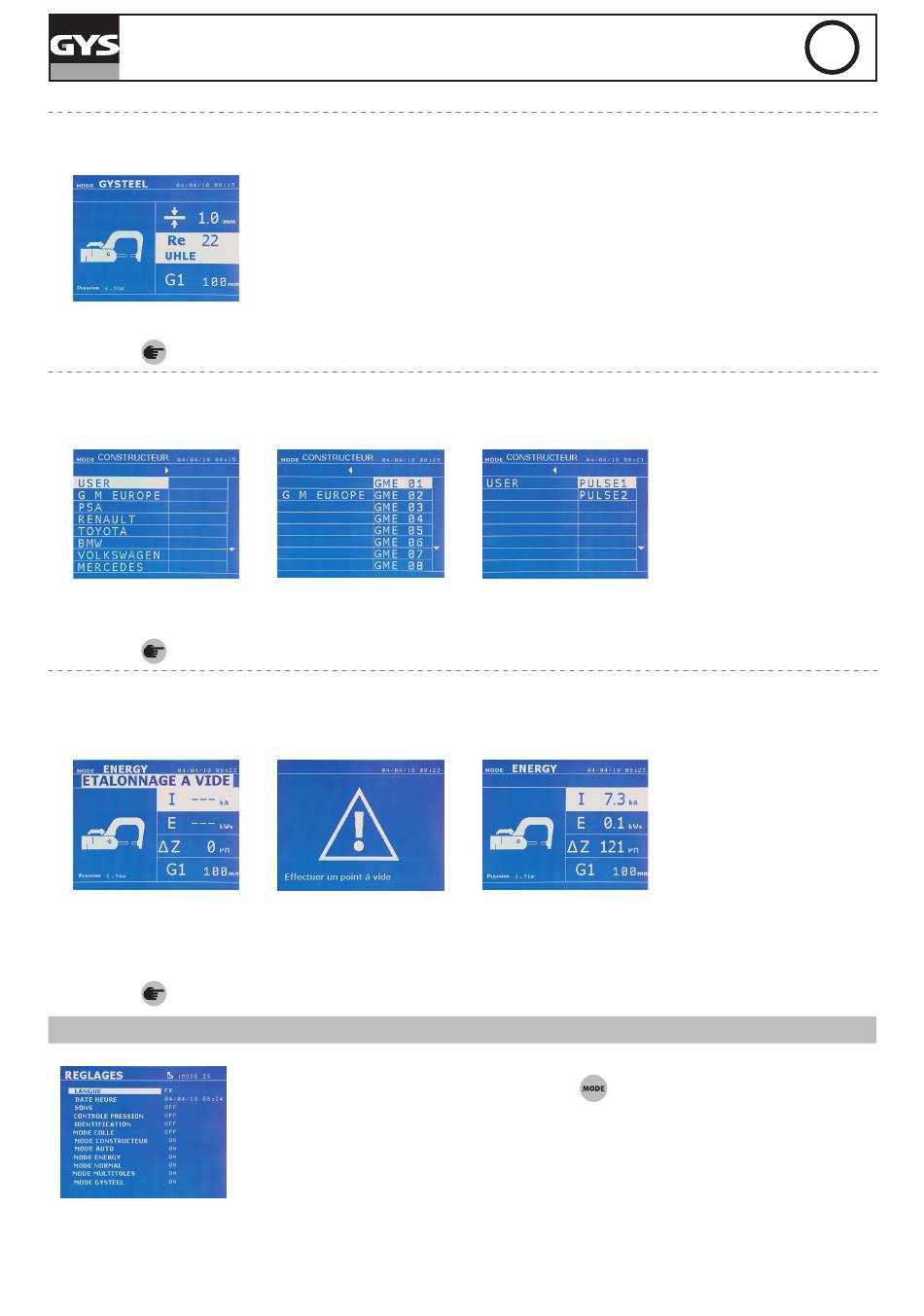

GYSTEEL mode
Push the button for 2 seconds to return to the AUTO mode.
MANUFACTURER
mode
Spot welds programmed by the user can be recalled by selecting USER in the manufacturers list. Welding spots can be programmed using the GYSPOT
software and the welding spots settings module.
Push the button for 2 seconds to return to the AUTO mode.

ENERGY mode

To enable this mode, first perform a weld without a load. Push the button (FIG 2 -11). The message «Do a spot without a load» is displayed on the
screen. Push the button again to calibrate. Once the calibration has been done, the machine displays the last values used in this mode for current
and energy. The use can then modify the welding current, energy and resistance. The duration of the weld will vary based on the time required for
the machine to reach the energy level required. If it is taking too long, the machine will display the error message «maximum duration reached».
Push the button for 2 seconds to return to the AUTO mode.

SETTINGS MENU

GYSPOT INVERTER BP.LG
The GYSTEEL mode is optional; it can be modified using the « Settings» menu.
This mode is similar to the standard mode except that the user enters the elasticity of the metal (Re). This
value «Re» can be found using a tool like the GYSTEEL Vision.
Re : 1-10 is for mild steels.
Re : 11-18 is for HLE/THLE steels.
Re : 19-35 is for UHLE steels.
Re : 36-99 is for bore/boron steels.
The settings that need to be set when using this mode are:
- Thickness of the sheets/panels, with a range between 0.60 mm and 3.00 mm.
When 2 sheets/panels are being welded together, enter the thickness of the thinnest sheet.
When 3 sheets/panels are welded together, use the total cumulated thickness and divide by 2.
- Reference of the arm used.
The MANUFACTURER mode is optional; it can be modified using the « Settings» menu.
This mode is used to name a pre-registered spot based on the repair book issued by the manufacturer.
The ENERGY mode is optional and can be set using the «Settings» menu.
This mode is used to control the energy transmitted during the weld. This mode is not designed to be used
during repairs but for the benefit of manufacturers and quality control organisations conducting tests.
This menu is accessible by pressing and holding the button
The language used in the menu can amended on line 1.
The date and the time can be programmed on line 2.
The modes GYSTEEL, MANUFACTURER , AUTO, ENERGY, NORMAL et MULTISHEETS can be activated or deacti-
vated using this menu.
for 2 seconds.
