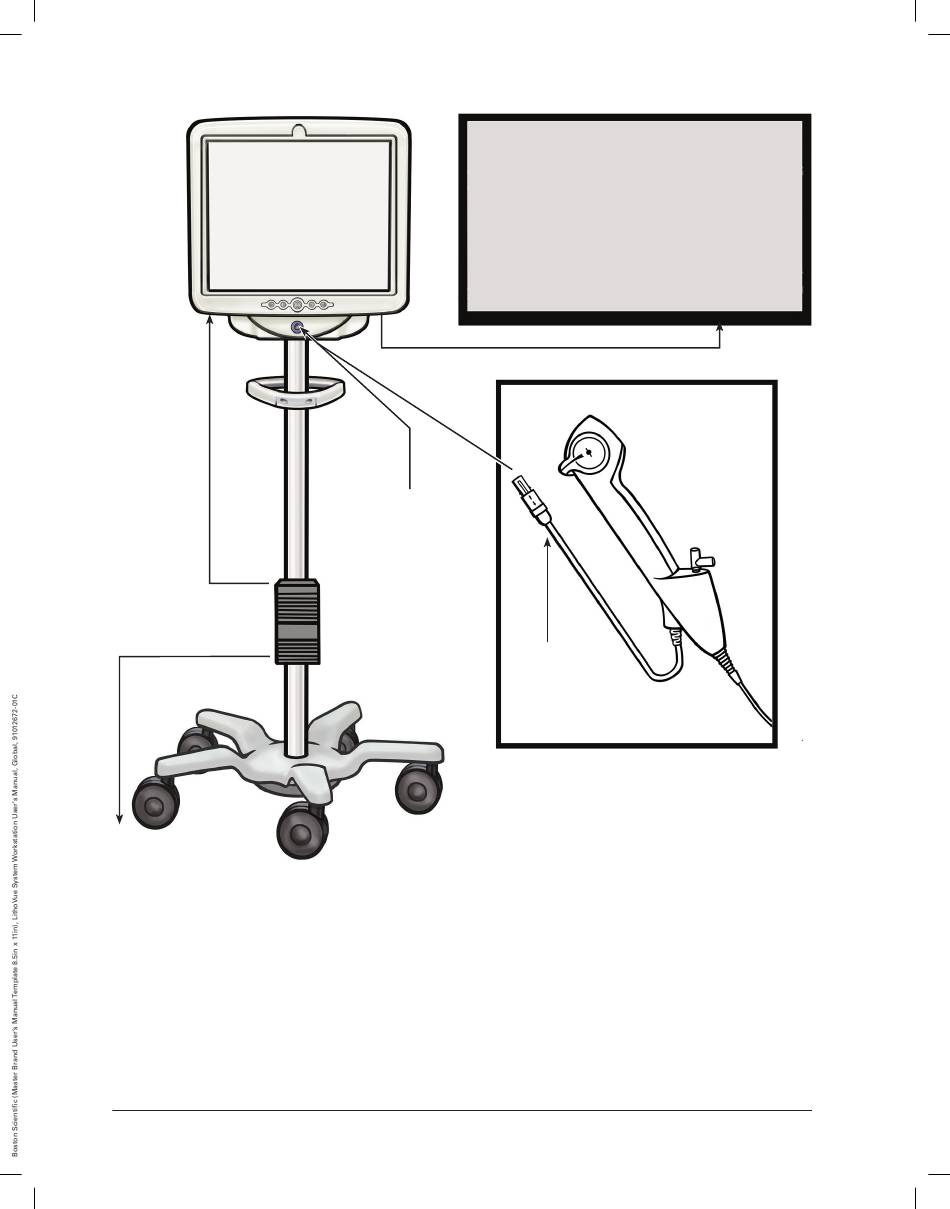

Figure 1�1 – LithoVue™ System
DC
Power Cord
AC Power Cord
The System Workstation does the following:
(a) Provides power for the illuminating LED and video image hardware in the LithoVue Flexscope.
(b) Receives video signals from the LithoVue Flexscope and processes the images for display on
the System Workstation screen or on a user-supplied monitor, if connected.
(c) Provides illumination control. The illumination provided by the LithoVue Flexscope is adjusted
automatically by the system to ensure adequate light levels at the treatment site. Additionally,
the user may also turn the illumination on/off and adjust the illumination levels using the
controls provided on the System Workstation.
6
Black (K) ∆E ≤5.0
Main Operating
Screen
Flexscope
Connector
Cable Plug
Receptacle
System Workstation
User Supplied
Monitor
DVI Cable
Connector
Cable
LithoVue Flexscope
