Figure 3�10 – Installing the Power transformer Bracket
Power
Transformer
Power
Transformer
Holder with
Velcro Straps

cart Adjustment

The Cart is equipped with (2) adjustment mechanisms, one for adjusting the Touch PC's height and another
for adjusting the Touch PC's tilt. See Figure 3�11.

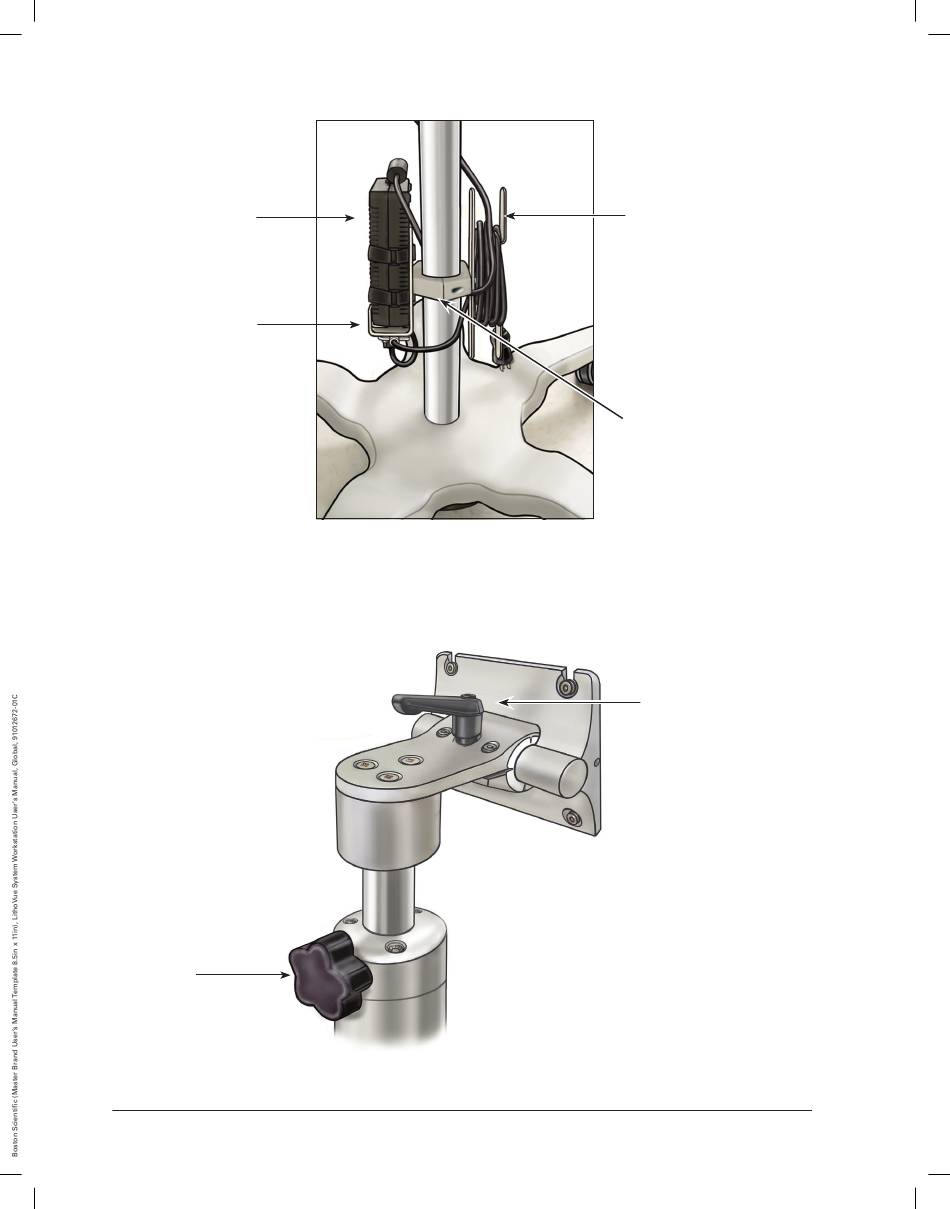

Figure 3�11 – cart Adjustments
Height
Adjustment
Knob
18
Black (K) ∆E ≤5.0
Cord Wrap Hook
Clamping Blocks
Tilt Adjustment
Lever
