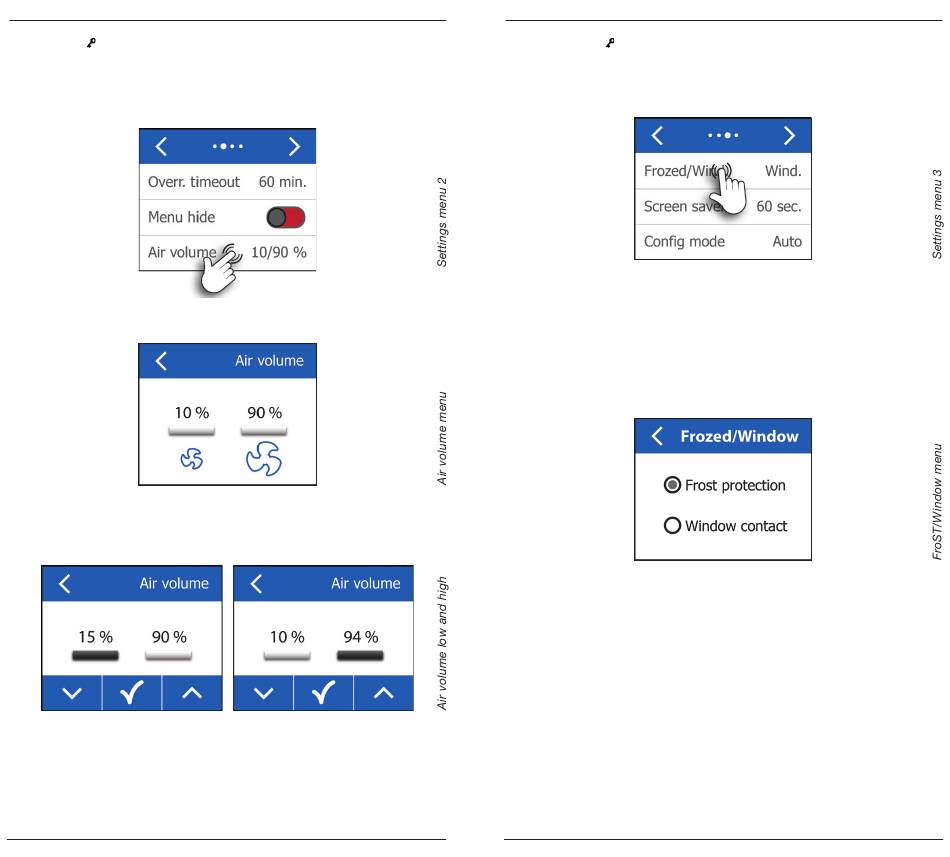

Air volume
Air volume can be set to Off, Low, High or Auto. Air volume is
adjusted in per cent of VAV damper performance. Low and High
air volumes can be manually adjusted by tapping the Air volume
button.
Select either Low or High to setting the respective air volumes.
Adjust the air volume by tapping the Up or Down arrow. Confirm
the setting by tapping the Accept button.
The minimum permissible air volume is 10% and the maximum
permissible air volume is 100%. After setting min. and max. air
volumes, tap the Left arrow to go back to the settings menu and
twice more to go back to the main menu. In the main menu, tap
Home to exit the menu.
14 © 2015 OJ Electronics A/S
English OJ Zone Module and Room Panel with 2" Touchscreen

Frost/Window

Terminals 14 and 15 on the Zone Module can be used either for
frost protection or as a window open/closed monitor.
If Frost is selected and frost is detected, the heating system will be
forced to 100% heating.
If Window is selected, heating/cooling will be stopped for as long
as the window is detected as being open. If multiple windows are
to be monitored, they must be connected in parallel.
Tap the Left arrow to go back to the settings menu and three more
times to go back to the main menu. In the main menu, tap Home to
exit the menu.
