OJ Zone Module and Room Panel with 2" Touchscreen

CONFIGURATION

The system can be configured from the Room Panel.
Make sure that configuration mode is set to Auto (default factory
setting). See Config mode on page 17 for details on selecting
configuration mode. With configuration mode set to Auto, the sys-
tem will detect and configure any attached sensor automatically.
Room Panel menus
The various menus of the RPT-20T Room Panel are accessed by
tapping the menu icon in the upper right corner of the screen. If
the icon is hidden, you can force it into view temporarily by tapping
the upper right corner of the screen five times. Most menu items
(marked
in this Commissioning Guide) are protected by a PIN.
The PIN is 1234. If the screen saver is active, tap the screen once
to access the Home screen.

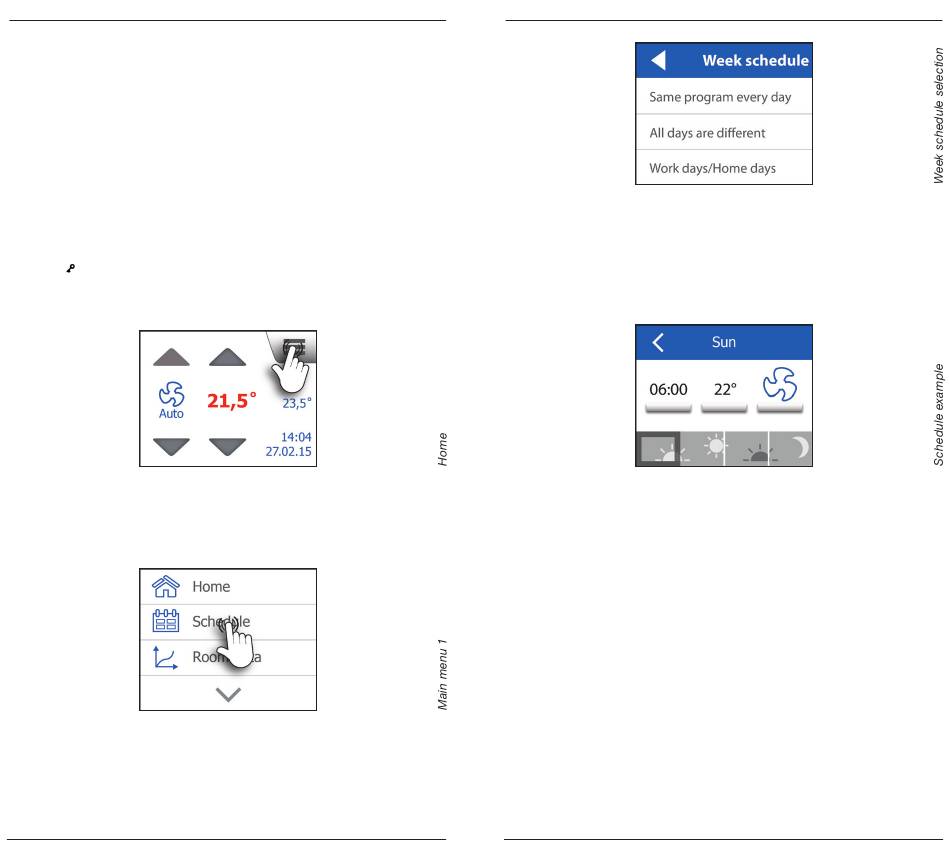

Schedule menu

In the Schedule menu, you can set the required air flow and tem-
perature. Tap the Schedule button to enter the schedule menu.
The system offers three different week schedules. In the first, each
day of the week has the same program. In the second, each day of
the week is programmed individually. In the third, work days and
home days can be programmed as two groups of days.
6
© 2015 OJ Electronics A/S
English
OJ Zone Module and Room Panel with 2" Touchscreen
It is possible to define work days and home days. As default,
Monday, Tuesday, Wednesday, Thursday and Friday are defined as
work days while Saturday and Sunday are home days.
In all week schedules, days are divided into four events: morning,
work, evening and night.
Select the event that you want to set up. Tap the time button to
change the start time for this event. Tap the temperature button to
change the temperature setpoint. Finally, tap the air flow button
to choose the required air flow. Air flow can be set to Off, Low,
High or Auto. In Auto, air flow is regulated according to sensor
values and setpoints. For details on Low and High settings, see
Air volume on page 13. Repeat this procedure for each day or
group of days.
When you have finished setting the schedule, tap the Left arrow a
couple of times to go back to the main menu.
© 2015 OJ Electronics A/S
English
7
