Drilling The Pilot Hole - Bose Virtually Invisible 191 Bedienungs- Und Installateuranleitung

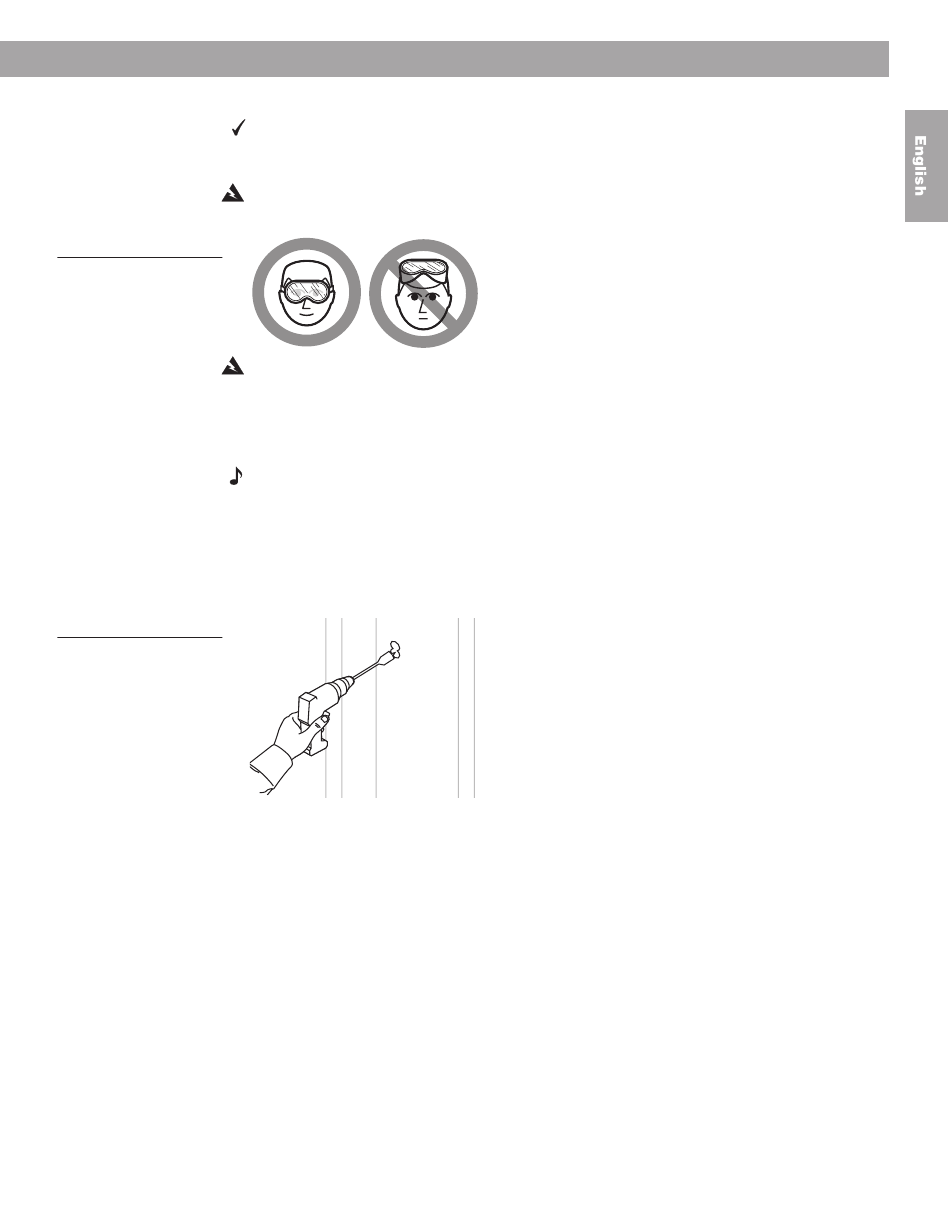

Figure 15
Caution against drilling
without eye protection
Figure 16
Using a spade bit with the
power drill to create the
pilot hole

Drilling the pilot hole

You will need a half-inch spade bit and power drill, or a special rotary cutting tool for this
step.
Using the proper equipment and protection is important.
WARNING: Use eye protection and be sure to observe all safety precautions while using the
drill or cutting tool (Figure 15).
WARNING: Make sure the spot chosen is safe for cutting. Do not cut through surfaces that
may have hazards such as electrical wiring, conduits, or plumbing concealed behind them.
Follow all other safety precautions.
1. Center the tip of the drill bit in the top circle you have drawn).
2. Drill completely through the wallboard to create a hole that you can probe behind.
Note: If you encounter insulation in the wall, it will be difficult, if not impossible, to probe
behind the pilot hole. If you are certain that the location you have chosen is free of hazards
and impediments, you may choose to cut the hole for the speaker anyway, remove some of
the malleable insulation, and proceed from there. Refer to "Prepare the wall for inserting the
speaker" starting on page 21.
3. Drill the second hole just below the first one (Figure 16). This elongates the hole enough
to allow for testing the space for the length of the speaker enclosure.
Steps to Installing
17
