Construction and function

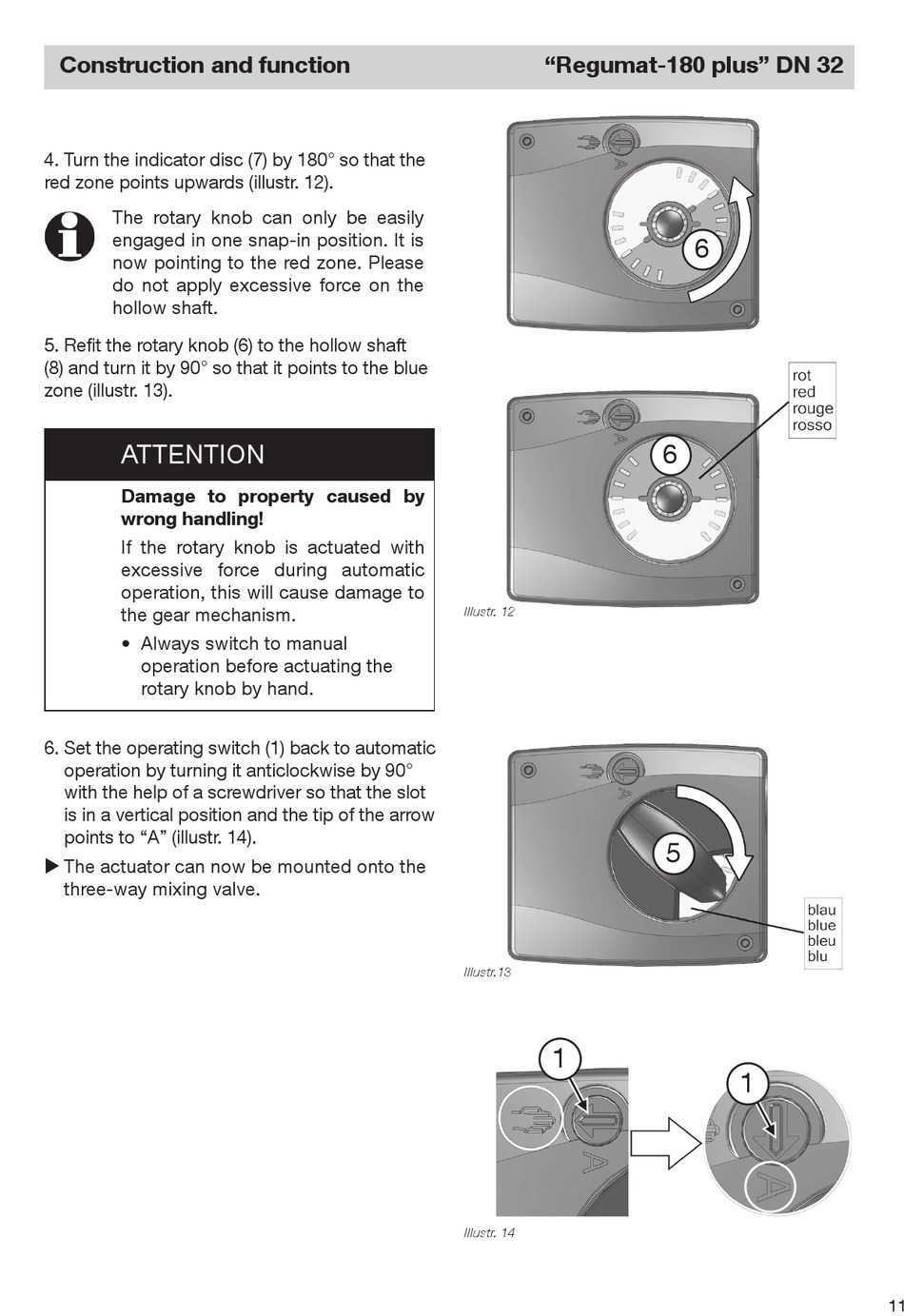

4. Turn the indicator disc (7) by 180° so that the
red zone points upwards (illustr. 12).
The rotary knob can only be easily
engaged in one snap-in position. It is
now pointing to the red zone. Please
do not apply excessive force on the
hollow shaft.
5. Refi t the rotary knob (6) to the hollow shaft
(8) and turn it by 90° so that it points to the blue
zone (illustr. 13).
ATTENTION
Damage to property caused by
wrong handling!
If the rotary knob is actuated with
excessive force during automatic
operation, this will cause damage to
the gear mechanism.
• Always switch to manual
operation before actuating the
rotary knob by hand.
6. Set the operating switch (1) back to automatic
operation by turning it anticlockwise by 90°
with the help of a screwdriver so that the slot
is in a vertical position and the tip of the arrow
points to "A" (illustr. 14).
X The actuator can now be mounted onto the
three-way mixing valve.
"Regumat-180 plus" DN 32
Illustr. 12
Illustr.13
1
Illustr. 14
6
6
5
1
11
