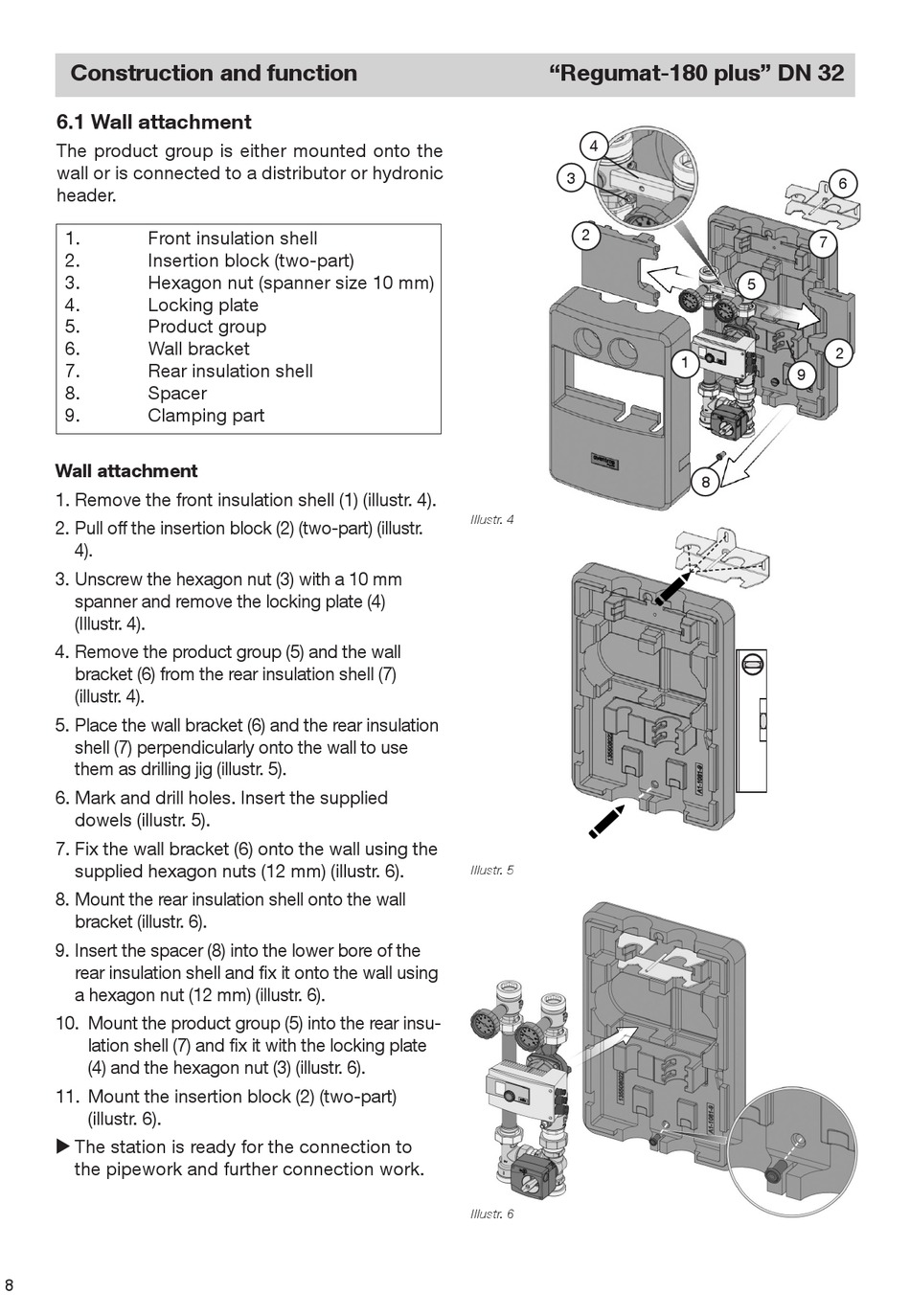

Wall Attachment - oventrop Regumat-180 plus Einbau- Und Betriebsanleitung Für Fachpersonal

Construction and function

6.1 Wall attachment

The product group is either mounted onto the
wall or is connected to a distributor or hydronic
header.
1. Front insulation shell
2. Insertion block (two-part)
3. Hexagon nut (spanner size 10 mm)
4. Locking plate
5. Product group
6. Wall bracket
7. Rear insulation shell
8. Spacer
9. Clamping part
Wall attachment
1. Remove the front insulation shell (1) (illustr. 4).
2. Pull off the insertion block (2) (two-part) (illustr.
4).
3. Unscrew the hexagon nut (3) with a 10 mm
spanner and remove the locking plate (4)
(Illustr. 4).
4. Remove the product group (5) and the wall
bracket (6) from the rear insulation shell (7)
(illustr. 4).
5. Place the wall bracket (6) and the rear insulation
shell (7) perpendicularly onto the wall to use
them as drilling jig (illustr. 5).
6. Mark and drill holes. Insert the supplied
dowels (illustr. 5).
7. Fix the wall bracket (6) onto the wall using the
supplied hexagon nuts (12 mm) (illustr. 6).
8. Mount the rear insulation shell onto the wall
bracket (illustr. 6).
9. Insert the spacer (8) into the lower bore of the
rear insulation shell and fix it onto the wall using
a hexagon nut (12 mm) (illustr. 6).
10. Mount the product group (5) into the rear insu-
lation shell (7) and fix it with the locking plate
(4) and the hexagon nut (3) (illustr. 6).
11. Mount the insertion block (2) (two-part)
(illustr. 6).
X The station is ready for the connection to
the pipework and further connection work.
8
"Regumat-180 plus" DN 32
4
3
2
Illustr. 4
Illustr. 5
Illustr. 6
6
7
5
2
1
9
8
