Technical Information

Air Cooling Kit Installation

Air Cooling Kit Installation

TwissTorr 304 FS on board Controller

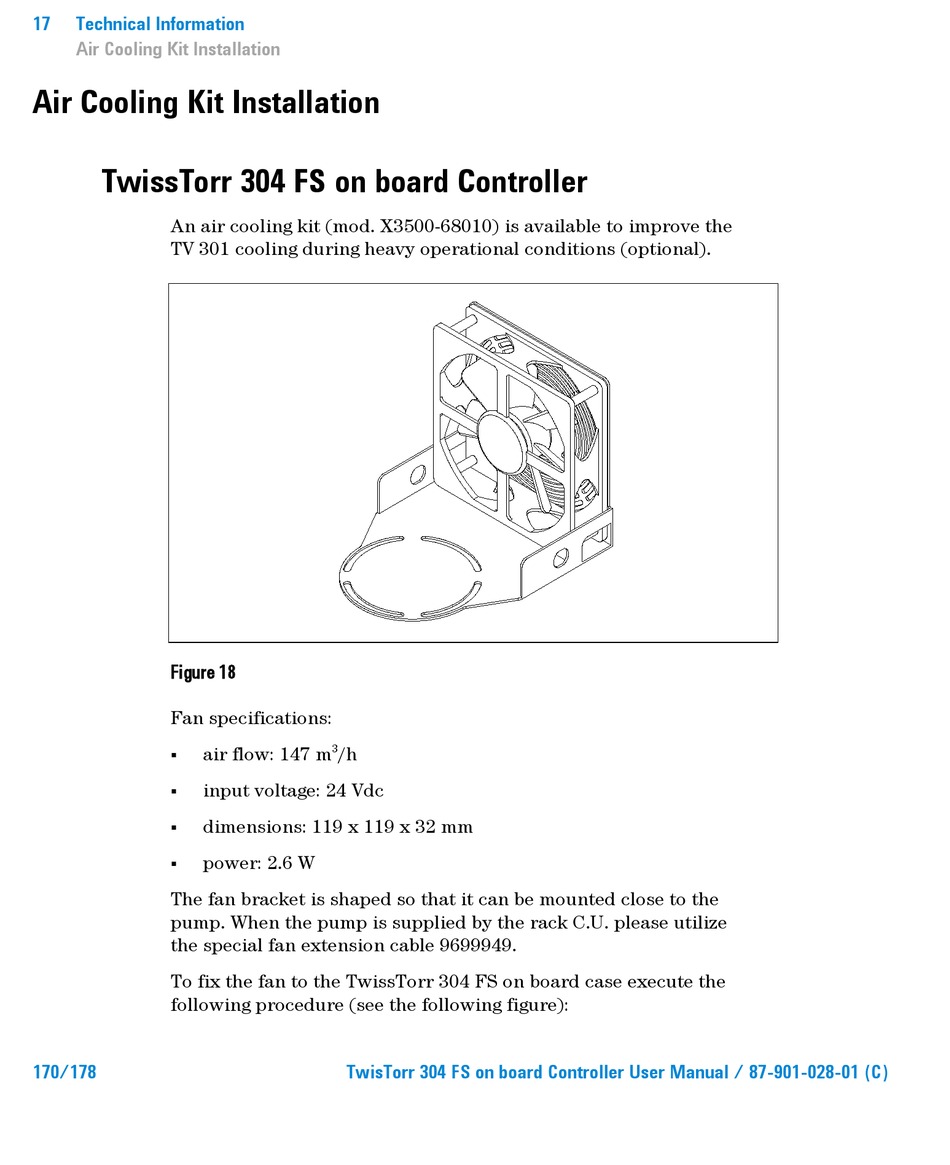

An air cooling kit (mod. X3500-6801 0 ) is available to improve the
TV 301 cooling during heavy operational conditions (optional).
Figure 18
Fan specifications:
The fan bracket is shaped so that it can be mounted close to the
pump. When the pump is supplied by the rack C.U. please utilize
the special fan extension cable 9699949.
To fix the fan to the TwissTorr 304 FS on board case execute the
following procedure (see the following figure):
170/178
3
air flow: 147 m
/h
input voltage: 24 Vdc
dimensions: 119 x 119 x 32 mm
power: 2.6 W
TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C)
