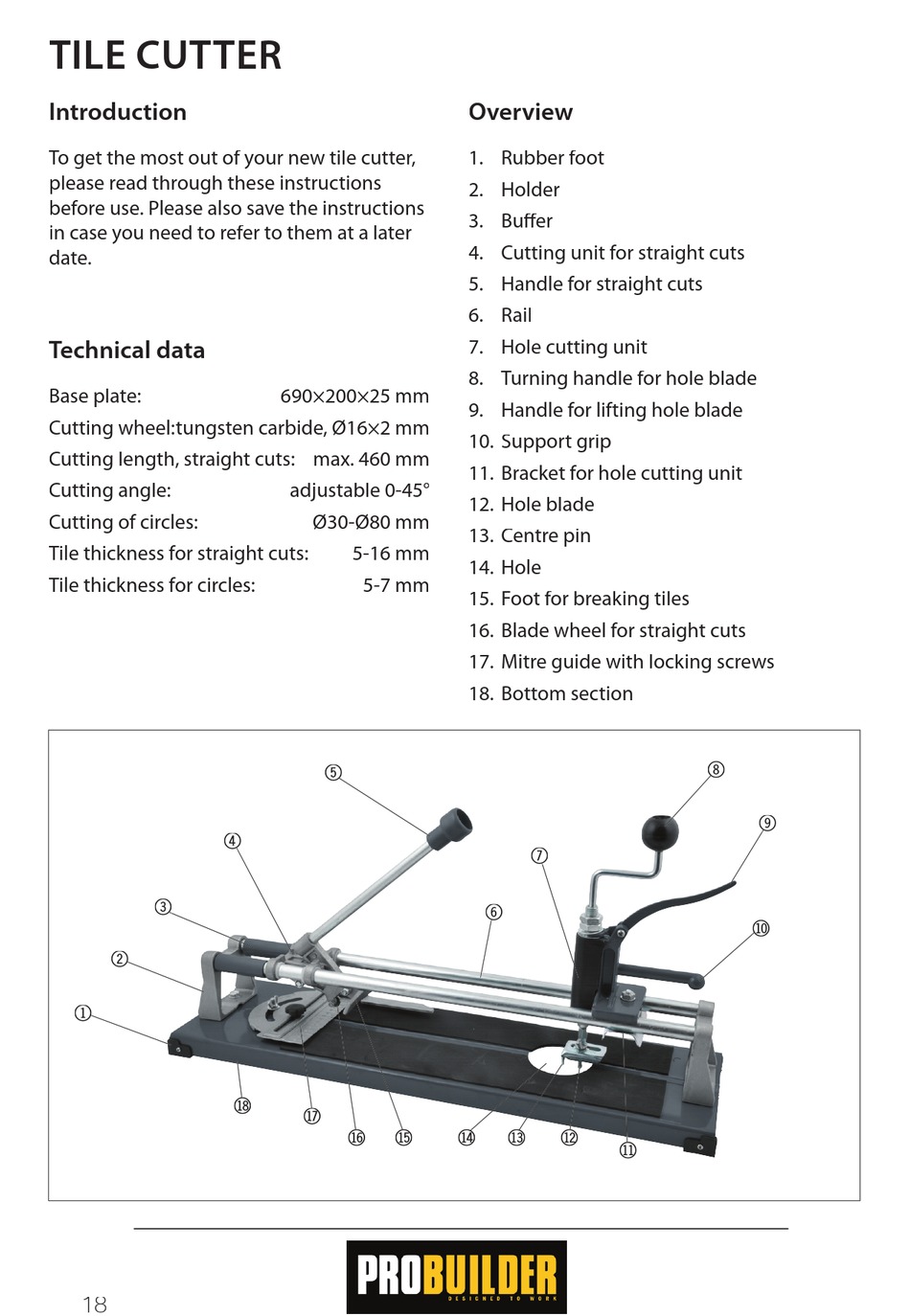

TILE CUTTER
Introduction
To get the most out of your new tile cutter,
please read through these instructions
before use. Please also save the instructions
in case you need to refer to them at a later
date.

Technical data

Base plate:
Cutting wheel: tungsten carbide, Ø16×2 mm
Cutting length, straight cuts: max. 460 mm
Cutting angle:
Cutting of circles:
Tile thickness for straight cuts:
Tile thickness for circles:
3 3
2 2
1 1
18
690×200×25 mm
adjustable 0-45°
Ø30-Ø80 mm
5-16 mm
5-7 mm
5 5
4 4
bt bt
bs bs
br bq br bq
Overview
1. Rubber foot
2. Holder
3. Buff er
4. Cutting unit for straight cuts
5. Handle for straight cuts
6. Rail
7. Hole cutting unit
8. Turning handle for hole blade
9. Handle for lifting hole blade
10. Support grip
11. Bracket for hole cutting unit
12. Hole blade
13. Centre pin
14. Hole
15. Foot for breaking tiles
16. Blade wheel for straight cuts
17. Mitre guide with locking screws
18. Bottom section
7 7
6 6
bp bp bo bo bn bn
bm bm
8 8
9 9
bl bl
