4. ACTUATOR

4.1 Types of power supply

The smart series of actuators is available with electrical supply 230VAC 50 Hz (with a tolerance of ±10%), with a
three-core supply cable: BLUE, neutral common; BLACK, open phase; BROWN, closed phase.

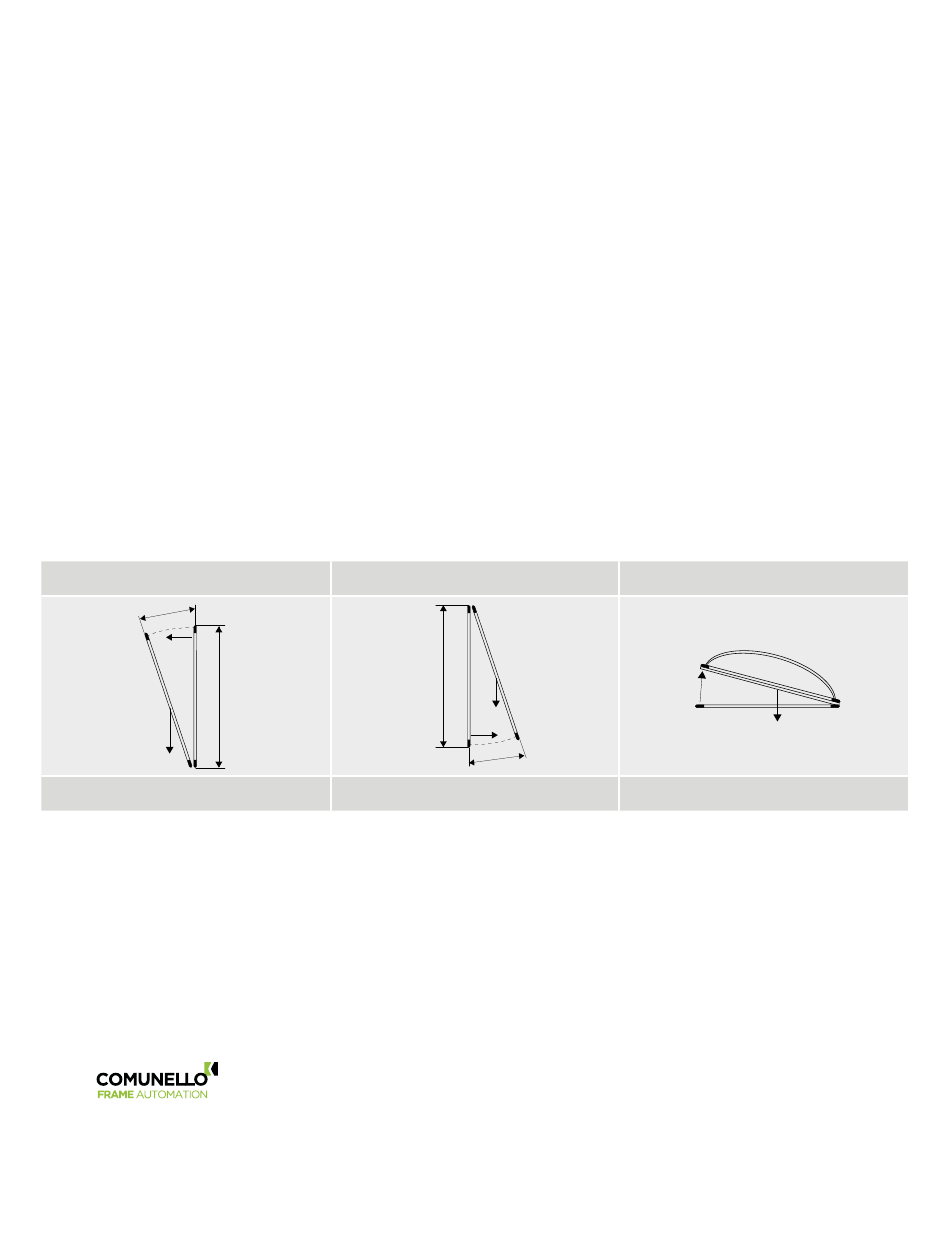

4.2 Calculation of the force necessary

The calculation is made without considering the loads due to atmospheric agents.
Key to symbols F = Force required to open in N (Newton)
P = Weight of the window (only moveable part) in kg (kilogrammes)
C = Opening travel of actuator in cm. (Centimetres)
H = Height of the openable part of the window in cm. (centimetres)
Bottom-hung inward opening
C
F
(B)
P
F = [(P / 2 ) x (C/H)] x 9.8

4.3 Pack and tools required for assembling the actuator

The actuator is packed individually in a cardboard box. Each pack contains:
Electric actuator, 230VAC 50Hz with electric supply cable, support brackets, fixing bracket for top-hung window,
fixing bracket for bottom-hung window and instruction manual.
Before starting to fit the actuator, we recommend preparing the following fitting materials, tools and equipment:
Metre rule or tape measure, pencil, drill/screwdriver, set of drill bits for metal or wood, set of screw bits, electrical
pliers, screwdrivers, screws and/or threaded inserts suitable for the type of window material. AVOID using self-
tapping screws and/or three-lobed screws on any metal windows.
6
Top-hung outward opening
H
F = [(P / 2 ) x (C/H)] x 9.8
(A)
H
P
F
C
Horizontal skylight
F
P
F = (P / 2) x 9.8
