Removing a Mezzanine Card

To remove a mezzanine card, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is installed in a chassis, remove it. For instructions, see
"Removing a Compute Module from the Chassis" on page
3. Remove the top cover. For instructions, see
4. Locate the mezzanine card.
5. Using a Phillips* screwdriver, remove the four screws securing the mezzanine card to
the standoffs (see
46
Figure 39).
1
I/ O
2
1
2
ID

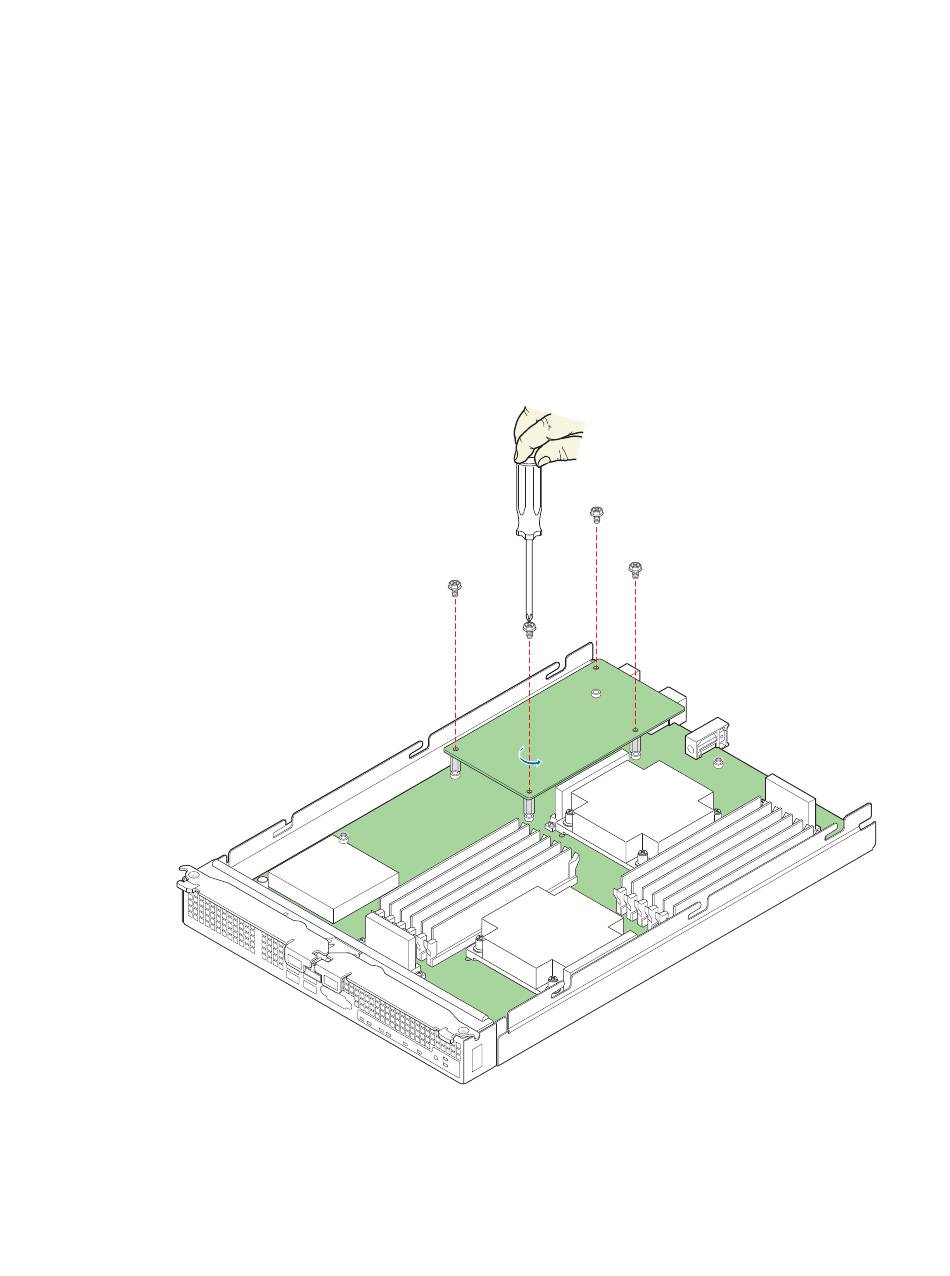

Figure 39. Removing Screws from Mezzanine Card

13.
"Removing the Top Cover" on page
®
Intel Compute Module MFS5520VI User Guide
14.
AF003091
