To install DIMMs, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2.
If the compute module is installed in a chassis, remove it. For instructions, see
"Removing a Compute Module from the Chassis" on page
3.
Remove the top cover. For instructions, see
4.
Remove the processor air duct (see
5.
Locate the DIMM sockets.
6.
Holding the DIMM by the edges, remove it from the package.
7.
Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position (see letter "A" in
8.
Holding the DIMM by the edges, remove it from its anti-static package.
9.
Position the DIMM above the socket. Align the notch on the bottom edge of the
DIMM with the key in the DIMM socket (see letter "B" in
pointing to the key in the socket).
10. Insert the bottom edge of the DIMM into the socket.
11. When the DIMM is correctly positioned, push down on the top edge of the DIMM
until the retaining clips snap into place (see letter "C" in
36
Figure
1
I/ O
2
1
2
ID

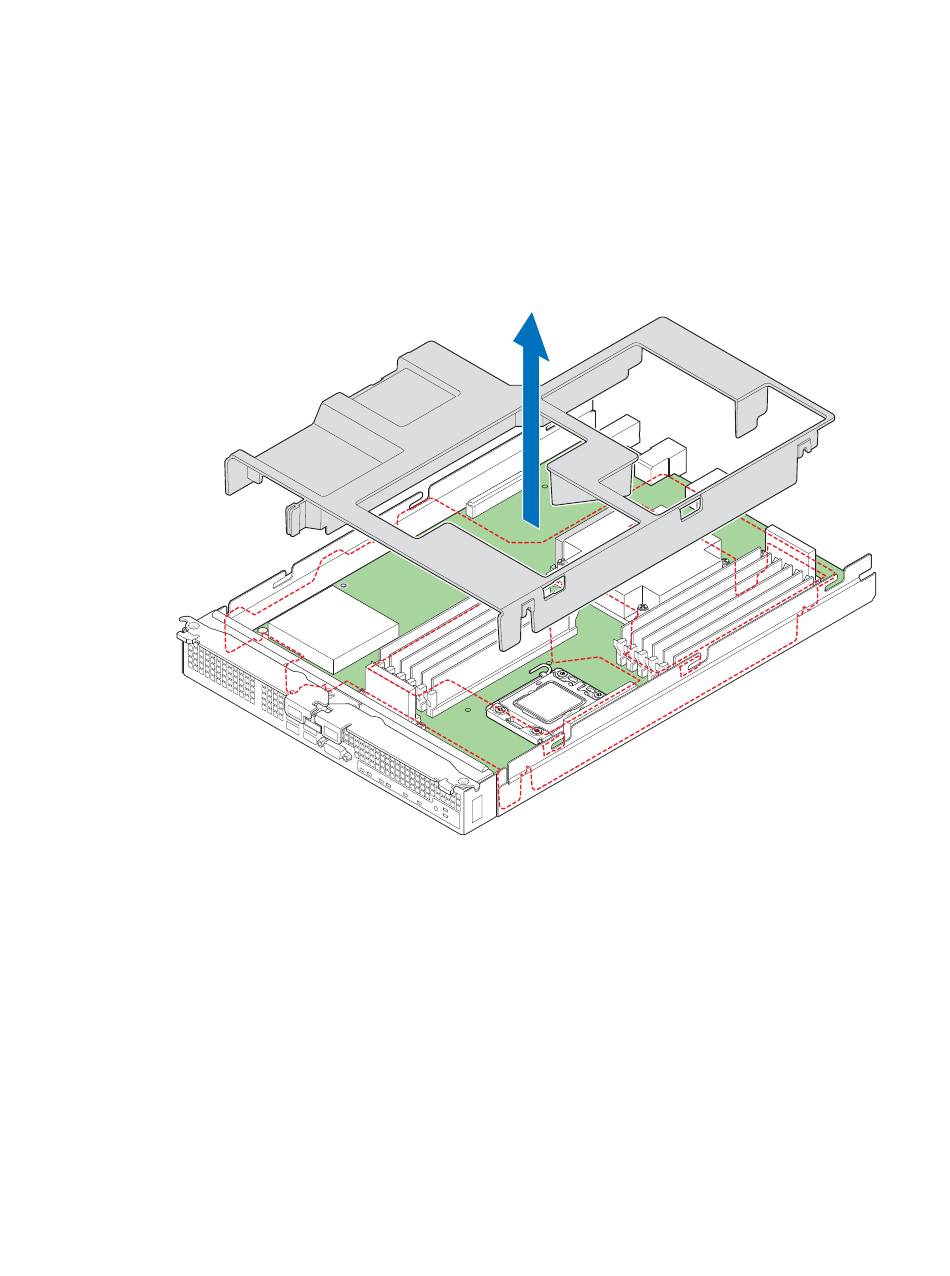

Figure 30. Removing Processor Air Duct

Figure
13.
"Removing the Top Cover" on page
30).
31).
Figure 31
Figure
®
Intel
Compute Module MFS5520VI User Guide
14.
AF003080
- the arrow is
31).
