14. Reinstall the top cover. For instructions, see
15. Reinstall the server compute module in the chassis. For instructions, see
a Compute Module into the Chassis" on page

Removing DIMMs

To remove DIMMs, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is installed in a chassis, remove it. For instructions, see
"Removing a Compute Module from the Chassis" on page
3. Remove the top cover. For instructions, see
38
1
I/ O
2
1
2
ID

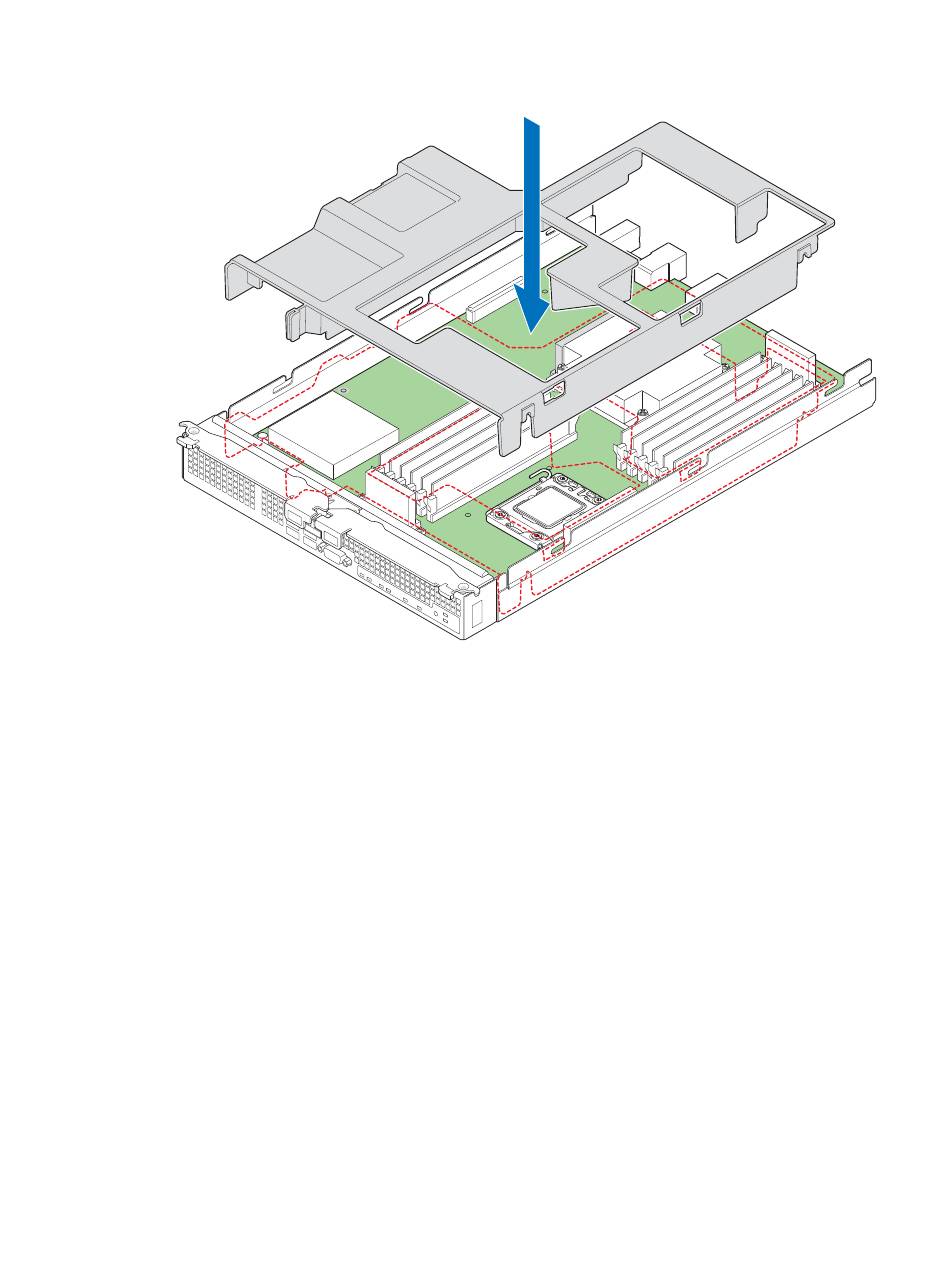

Figure 32. Reinstalling Processor Air Duct

"Installing the Top Cover" on page
14.
13.
"Removing the Top Cover" on page
®
Intel Compute Module MFS5520VI User Guide
AF003080
16.
"Installing
14.
