Replacing a Processor

To replace a processor, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
Removing Components
2. If the compute module is installed in a chassis, remove it. For instructions, see
"Removing a Compute Module from the Chassis" on page
3. Remove the top cover. For instructions, see
4. Remove the processor air duct (see
®
Intel Compute Module MFS5520VI User Guide
Figure
1
I/ O
2
1
2
ID

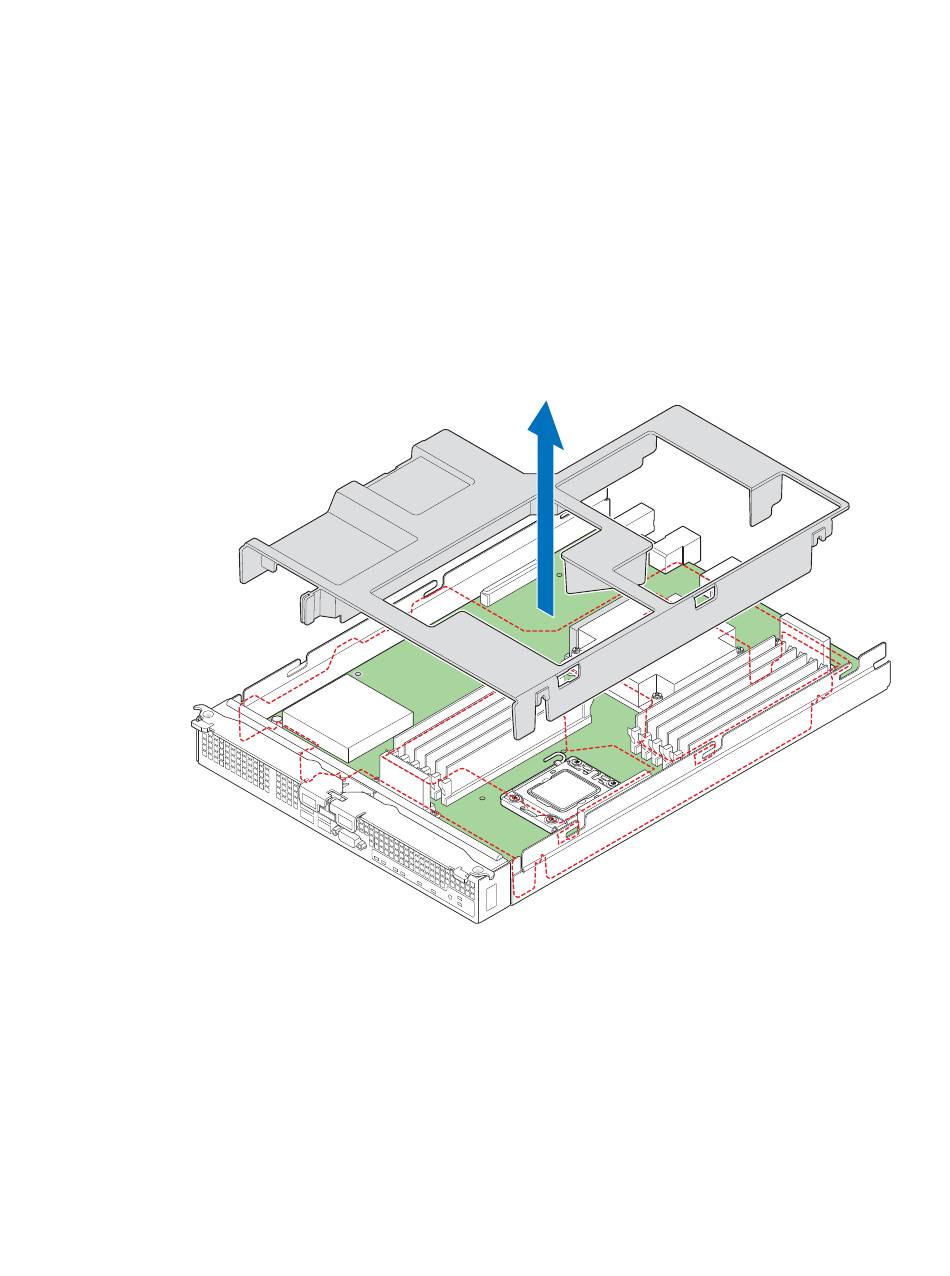

Figure 18. Removing Processor Air Duct

13.
"Removing the Top Cover" on page
18).
14.
AF003080
