Installing the Replacement Processor
13. If present, remove the protective shipping cover from the replacement processor.
14. Orient the replacement processor with the processor socket so that the processor
cutouts match the socket notches. Install the replacement processor (see
Caution:
15. Close the processor load plate (see letter "A" in
16. Close the socket lever completely and ensure that the load plate tab engages under
the socket lever when fully closed (see letter "B" in
®
Intel Compute Module MFS5520VI User Guide

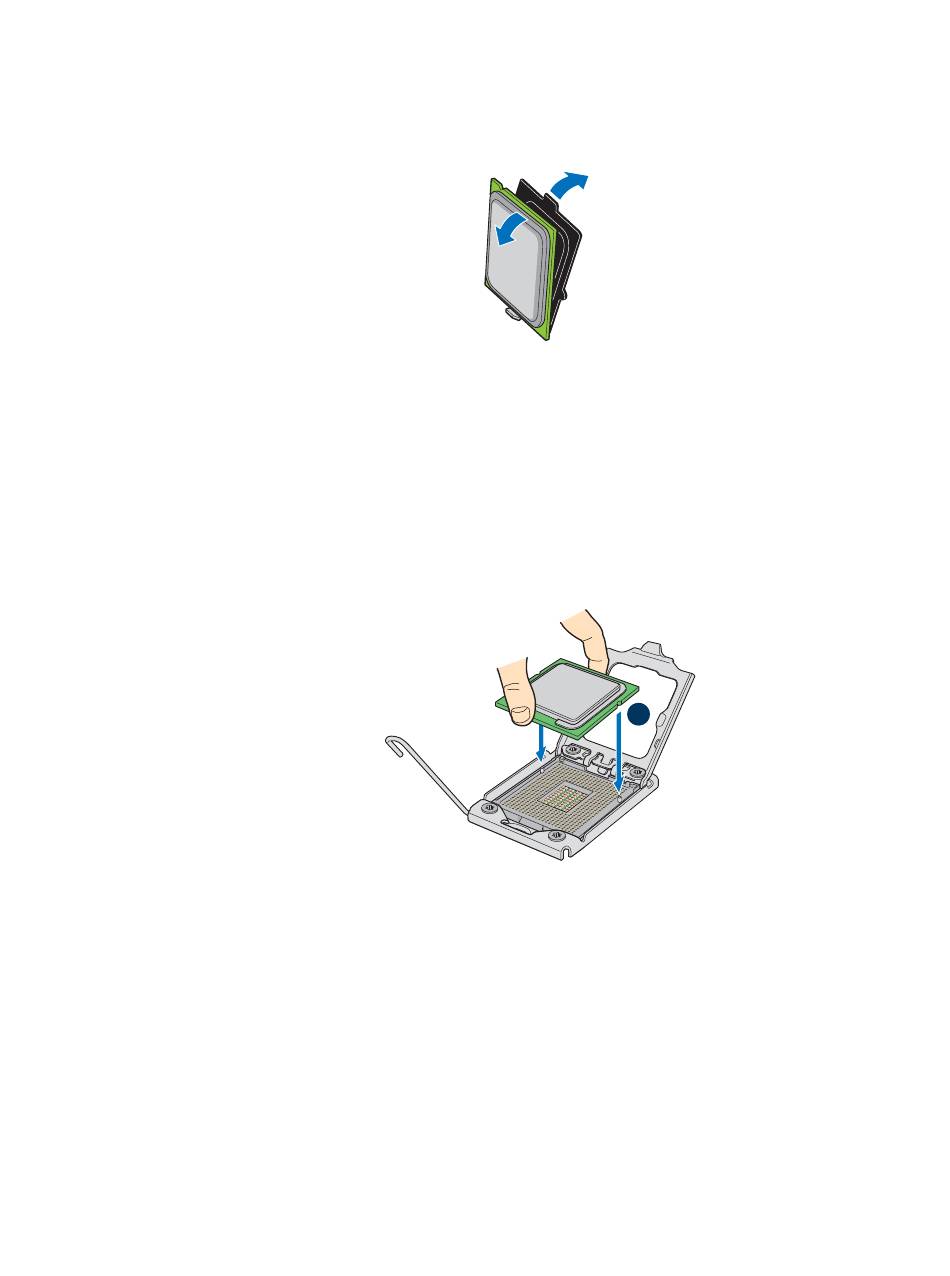

Figure 23. Removing Protective Shipping Cover

The underside of the processor has components that may damage the
socket pins if installed improperly. Processor must align correctly with
socket opening before installation. DO NOT DROP processor into socket.

Figure 24. Orienting and Installing Processor

AF002838
A
AF002839
Figure 25).
Figure 25).
Figure 24).
29
