Figure 20. Lifting Processor Socket Handle; Figure 21. Opening The Load Plate - Intel MFS5520VI Bedienungsanleitung

A
B
AF002835

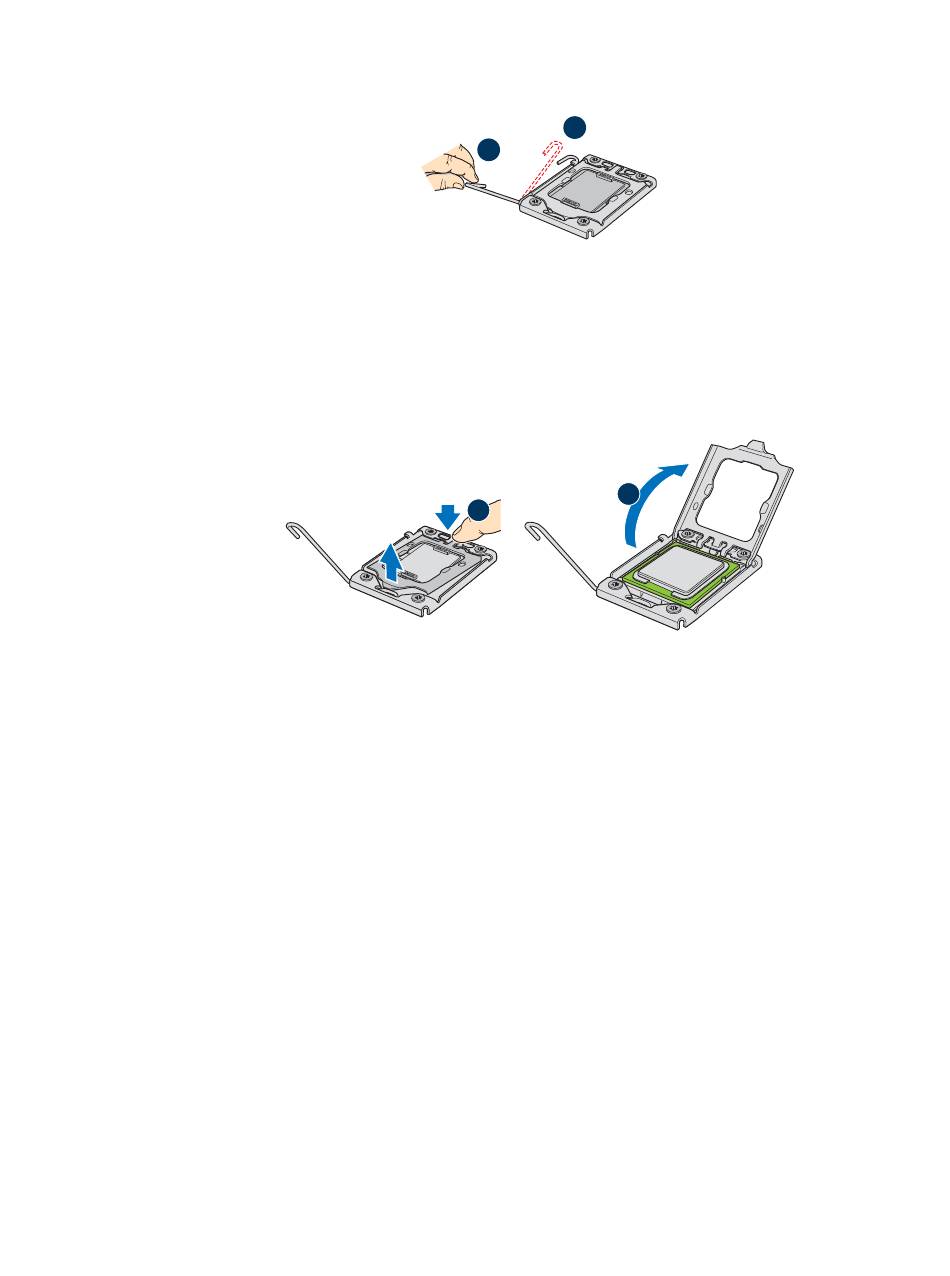

Figure 20. Lifting Processor Socket Handle

10. Push the rear tab with your finger tip to bring the front end of the load plate open
slightly (see letter "A" in Figure 21).
11. Open the load plate (see letter "B" in Figure 21).
B
A
AF003096

Figure 21. Opening the Load Plate

12. Remove the processor.
Note: Do not touch the socket pins; they are very sensitive and easily damaged.
®
Intel Compute Module MFS5520VI User Guide 27
