Installing the Top Cover

To install the top cover, follow these steps:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. Place the top cover on the compute module so that it engages the cover guide
notches (see letter "A" in
Note: Before closing the top cover, check that all components are installed and
3. Slide the top cover forward to the closed position until the retention latch fully
engages (see letter "B" in
16
Figure
seated correctly and that no loose tools or parts are inside the compute
module.
Figure
1
I/ O
2
1
2
ID

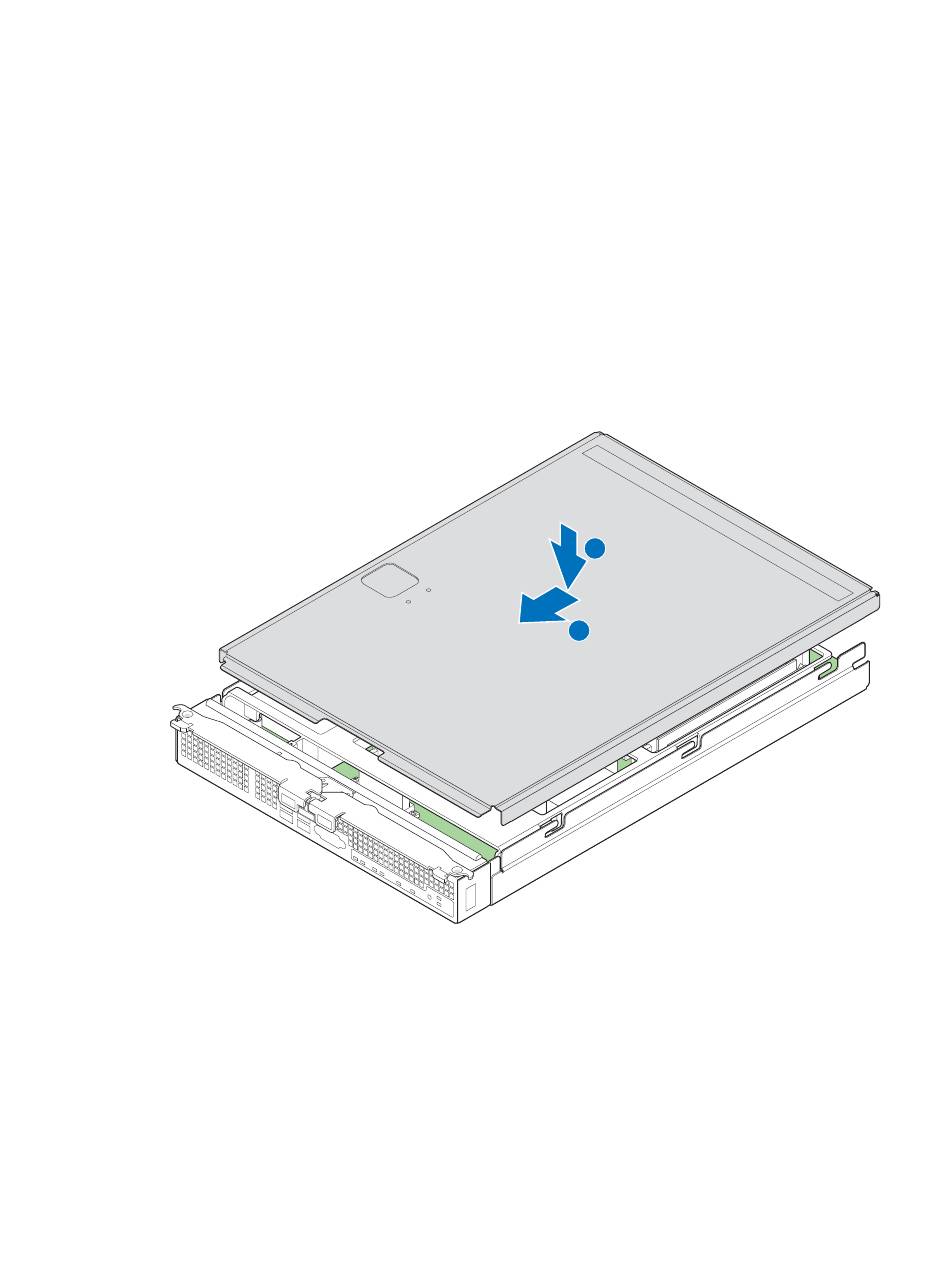

Figure 7. Installing Top Cover

7).
7).
