14. Remove the processor from the packaging box and remove the protective shipping
cover (see
15. Orient the processor with the socket so that the processor cutouts match the two
socket pins, and insert the processor into the socket (see
®
Intel Compute Module MFS5520VI User Guide

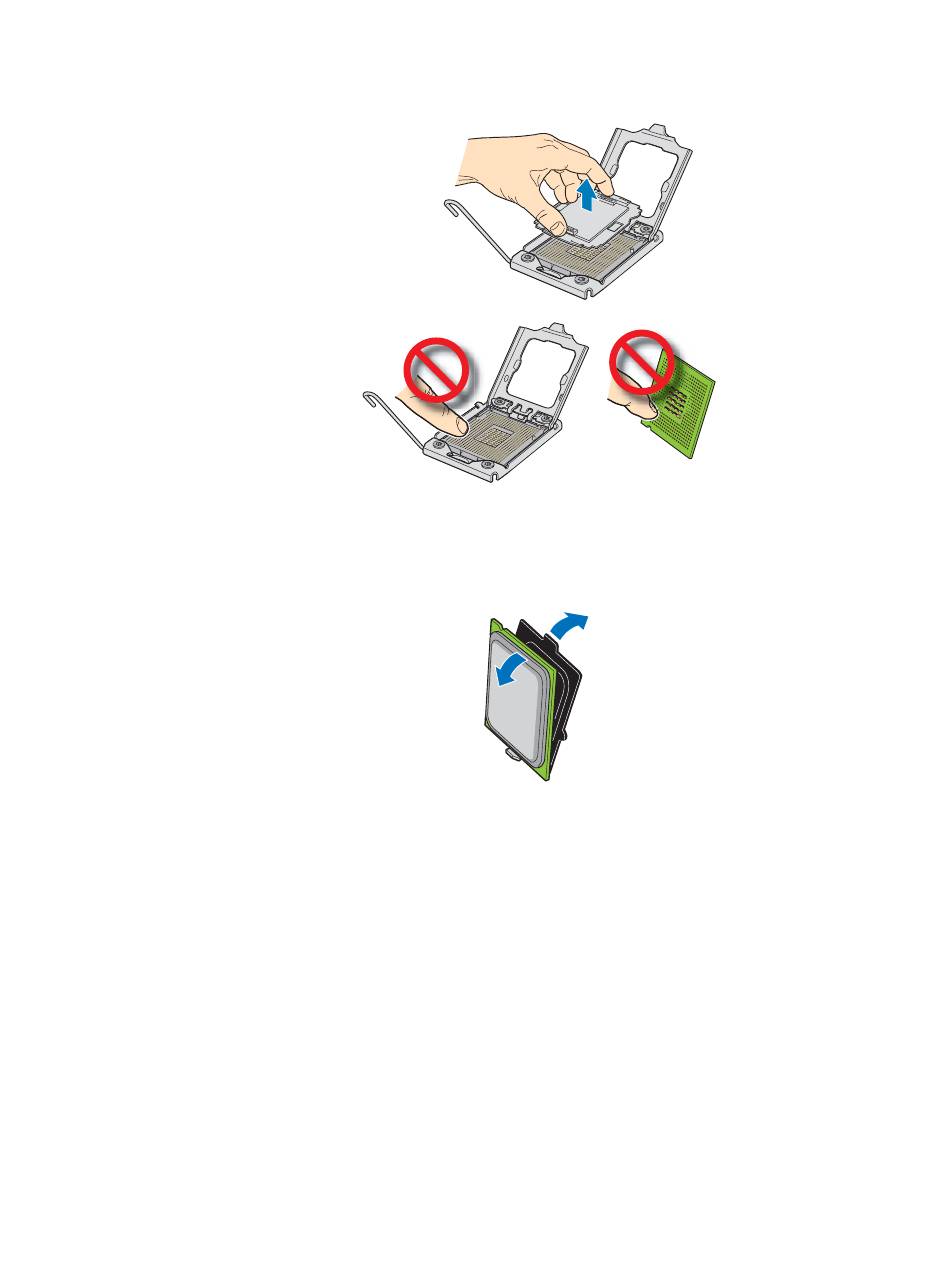

Figure 12. Removing the Protective Socket Cover

Figure 13).

Figure 13. Removing the Processor Protective Cover

AF002837
AF002838
Figure 14).
