English
4

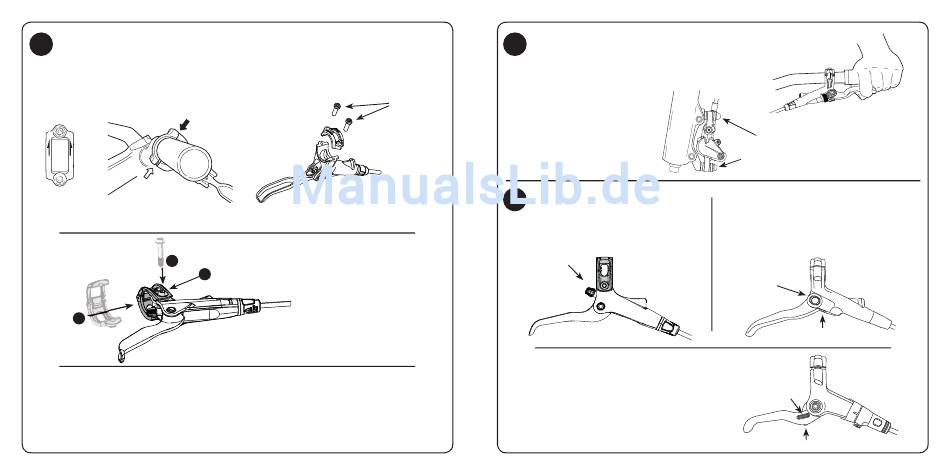

MOUNT LEVER
Split Clamp: Use a 4 mm hex wrench to tighten the top bolt
completely to 2.8-3.4 N•m (25-30 in-lb), so there is no gap.
Tighten the bottom bolt to the same torque.
Mount levers with
arrows facing up No Gap
Gap
Torque bolts to:
2.8-3.4 N•m
(25-30 in-lb)
Hinge Clamp
2
3
1
RIGHT-HAND FRONT (optional)
To run moto-style (right-hand front), remove the clamps from both
levers, swap the levers and reinstall the clamps as in step 4.
6
Elixir/Code User Manual
Torque bolt to:
5-6 N•m
(44-52 in-lb)
95-5015-016-000 Rev E
Elixir/Code User Manual
5
ALIGN AND TRUE CALIPERS
Squeeze the front lever 5 or 6 times, then hold. Compress the lever (with
your hand or a rubber band), then snug the CPS bolts enough to hold the
caliper in place.
Spin the wheel and check for rotor drag. If
Torque bolts to: there is drag, loosen the CPS bolts and repeat.
2.8-3.4 N•m
Once there is no drag, torque the CPS bolts in
(25-30 in-lb)
an alternating fashion to 8-10 N•m
(70-90 in-lb). Repeat the procedure for the
rear brake.
6
REACH ADJUST (ELIXIR 9/7/CODE R)
Turn the reach adjust knob to adjust the reach if
necessary.
Tool free reach adjuster
REACH ADJUST (CODE)
Turn the reach adjust knob to adjust the reach if necessary.
Tip: You can also use a 2.5 mm hex wrench or the rebound
adjuster knob from a RockShox fork to make this
adjustment.
Copyright © 2011 SRAM, LLC
English
Torque bolts to:
8-10 N•m
(70-90 in-lb)
(in an alternating fashion)
REACH ADJUST (ELIXIR 5)
Use a small (2 mm to 2.5 mm) hex wrench to turn the reach
adjust knob inside the lever body.
Note: You may also use a 3 mm hex wrench on the base of
the lever to adjust the reach.
3 mm hex reach adjuster
Small hex wrench reach adjuster
Tool free reach adjuster
2.5 mm hex reach adjuster
7
