Aquatec® Pure Bidet
1. Place one hand on the seat sensor A.
2. With the other hand press "CLEANSING / STOP" on the
unit control panel B or "CLEANSING" or "BIDET" on
the remote control.
• Water sprays out of the nozzle. Cover the nozzle
with your free hand C to prevent water spattering
out.

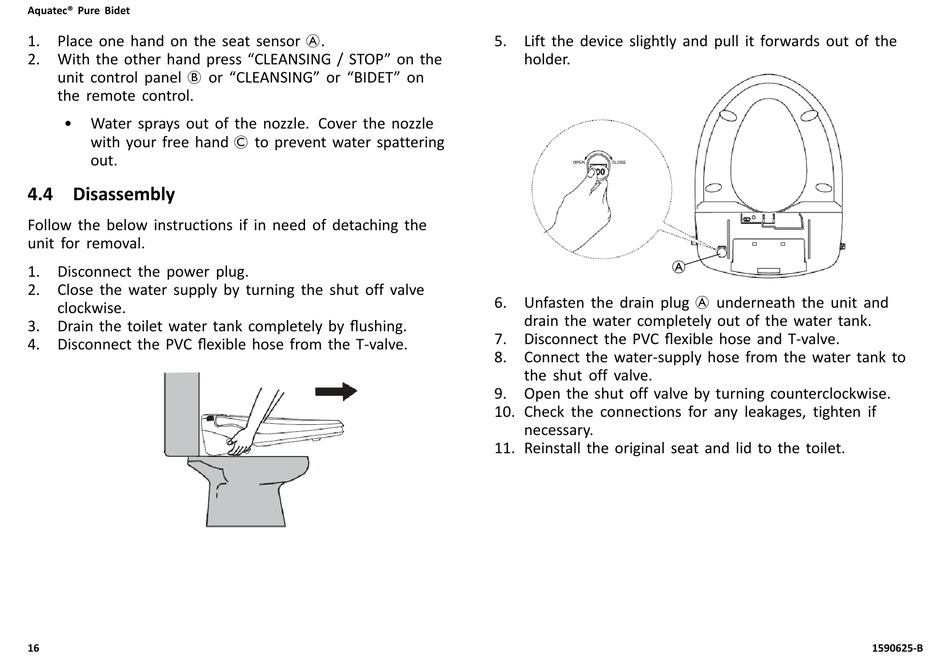

4.4 Disassembly

Follow the below instructions if in need of detaching the
unit for removal.
1. Disconnect the power plug.
2. Close the water supply by turning the shut off valve
clockwise.
3. Drain the toilet water tank completely by flushing.
4. Disconnect the PVC flexible hose from the T-valve.
16
5. Lift the device slightly and pull it forwards out of the
holder.
A
6. Unfasten the drain plug A underneath the unit and
drain the water completely out of the water tank.
7. Disconnect the PVC flexible hose and T-valve.
8. Connect the water-supply hose from the water tank to
the shut off valve.
9. Open the shut off valve by turning counterclockwise.
10. Check the connections for any leakages, tighten if
necessary.
11. Reinstall the original seat and lid to the toilet.
