Installation of drainage hose

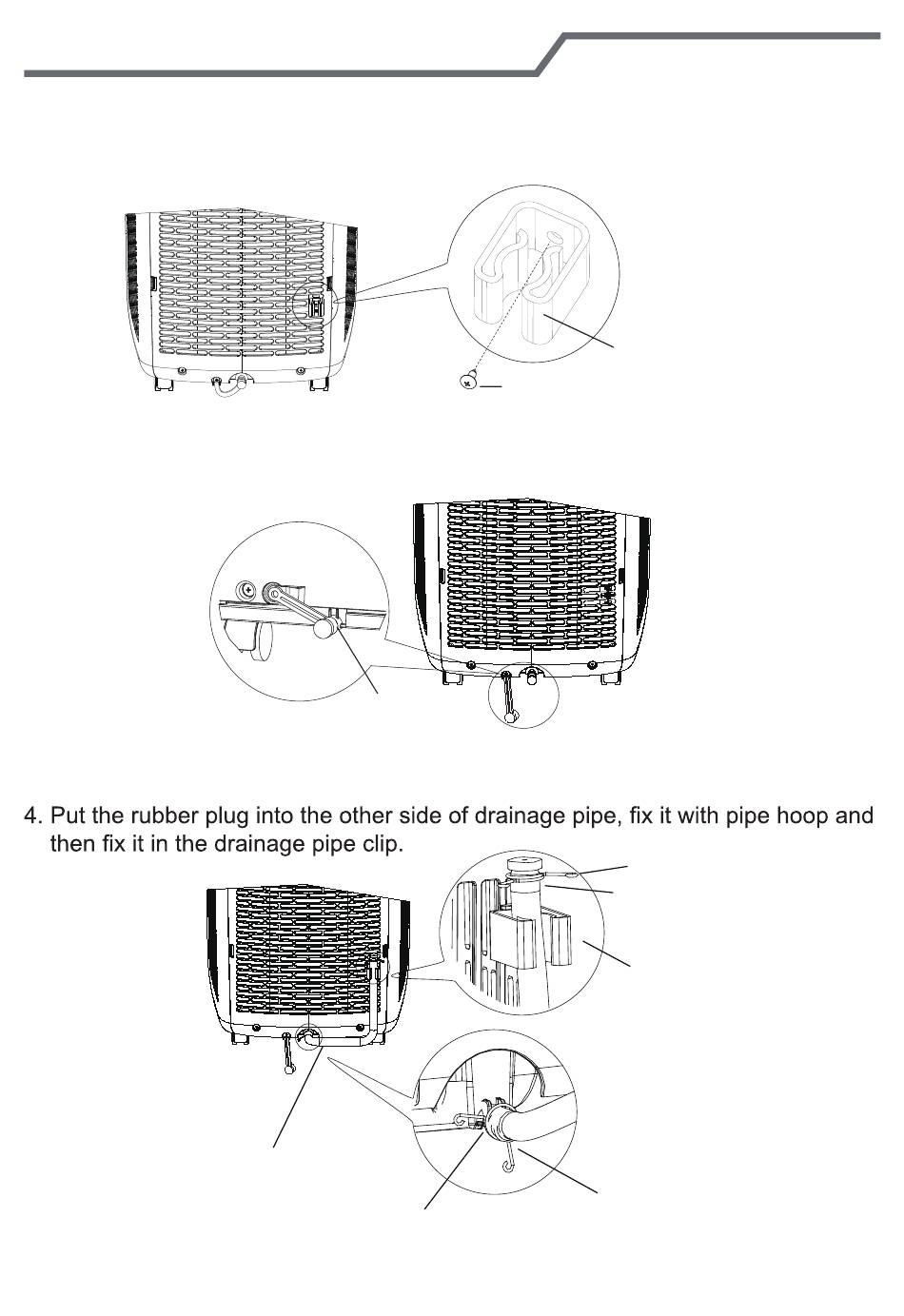

● Install of drainage hose(as shown in following figure):
1. Fix the drainage pipe clip on the right of rear side plate near drainage port with
a screw.
2. Remove the rubber plug at drainage port.
3. Put the drainage pipe into drainage port and screw it up, and then bind it with
pipe hoop.
drainage port
drainage pipe
drainage port
screw
pipe hoop
77
drainage pipe clip
pipe hoop
rubber plug
drainage pipe clip
