Figure A-2
FUT1010 IP65 NEMA 4X & IP66 NEMA 7 Gas Quick Start
Operating Instructions, 1/2013, A5E02639183-AC
TB2-12 - POS [+] Total TTL
TB2-11 - POS [+] Total OC
TB2-10 - NEG [-] Total TTL
TB2-9 - NEG [-] Total OC
4-20mA Load 1k ohm (max)

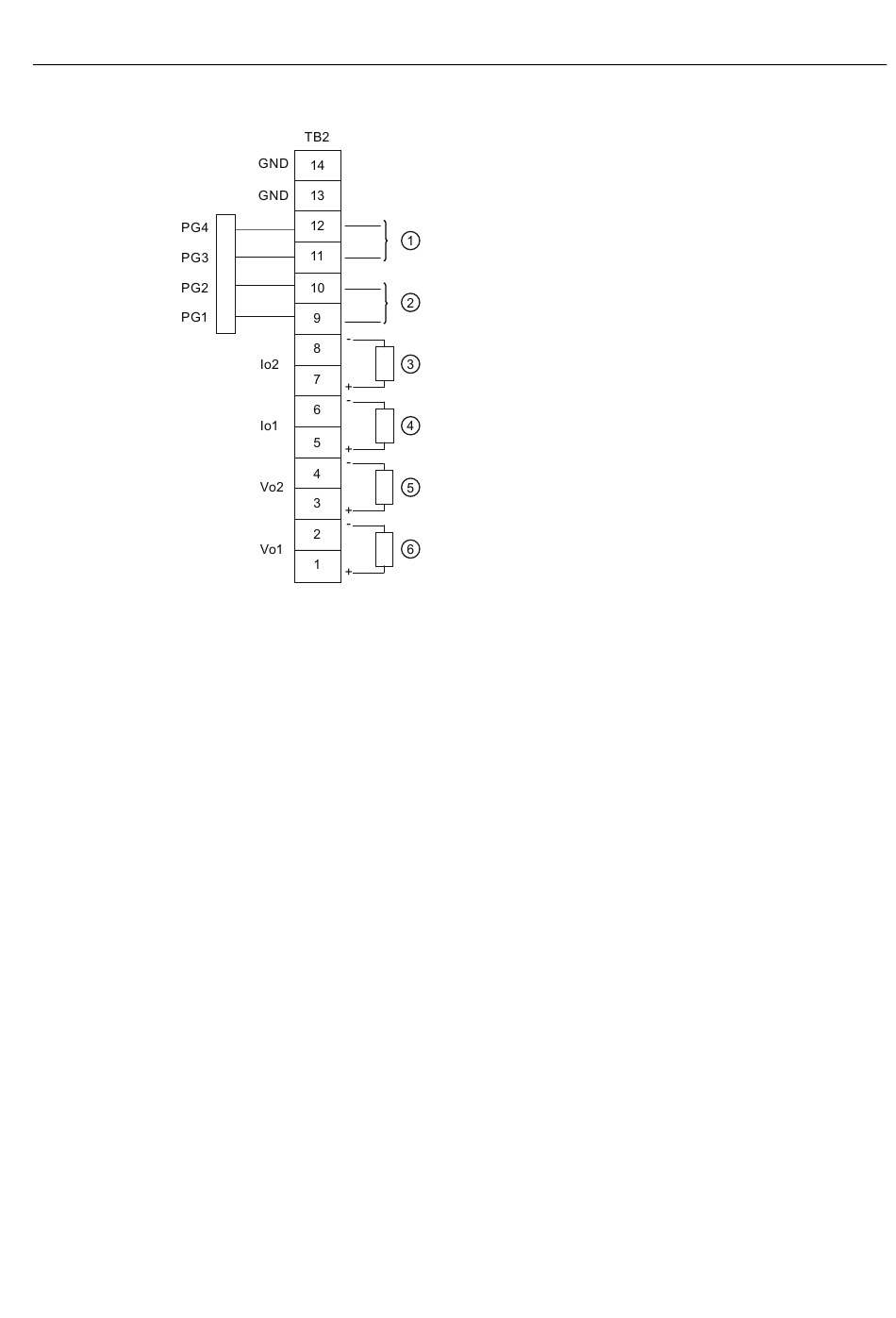

7ME39400AL04 TB2 Expanded I/O Wiring
A.1 I/O Connections and Wiring
④
4-20mA Load 1k ohm (max)
⑤
0 to 10 V Load 10k ohm (min)
⑥
0 to 10 V Load 10k ohm (min)
