Connections

Before making connections:

* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

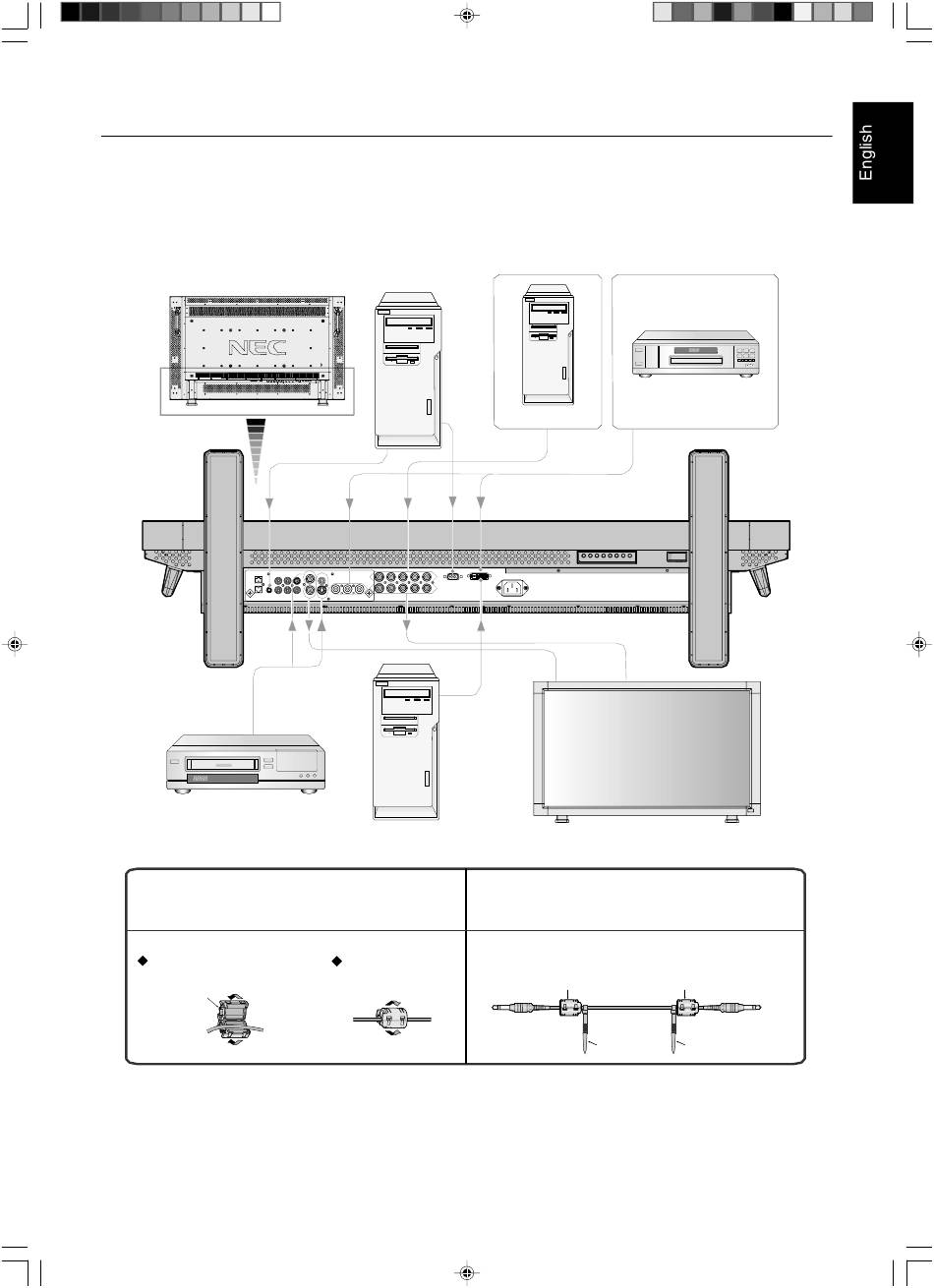

Wiring Diagram

LCD monitor
VCR
Attaching the Ferrite Core
Attach the Ferrite Core to PC Audio Cable.
Use of the cable without mounting the ferrite core will result in the
occurrence of noise.
For PC Audio Cable
Open the ferrite core and clamp it
1
on the PC Audio cable.
Ferrite Core
01_English
Personal computer
Equipment with
digital interface
Close the ferrite core.
2
11
Personal computer
LCD monitor (second monitor)
Mounting Position of Ferrite Core
Attach the two Ferrite Cores to the both ends of PC Audio Cable.
Ferrite Core
To AUDIO 1 of monitor
Band
English-11
08/09/2005, 16:26
DVD player
Ferrite Core
To connector of PC
Band
