OEG DD2+ Handbuch Seite 9

Controlled devices
gas boiler
-
liquid fuel boiler
-
- solid fuel boiler
- heat pump
Empty batteries
Time and day
Remote activation
Frost protection
Keyboard
locking
PARTY
Knob for setting
the day temperature
PARTY - day
temperature mode

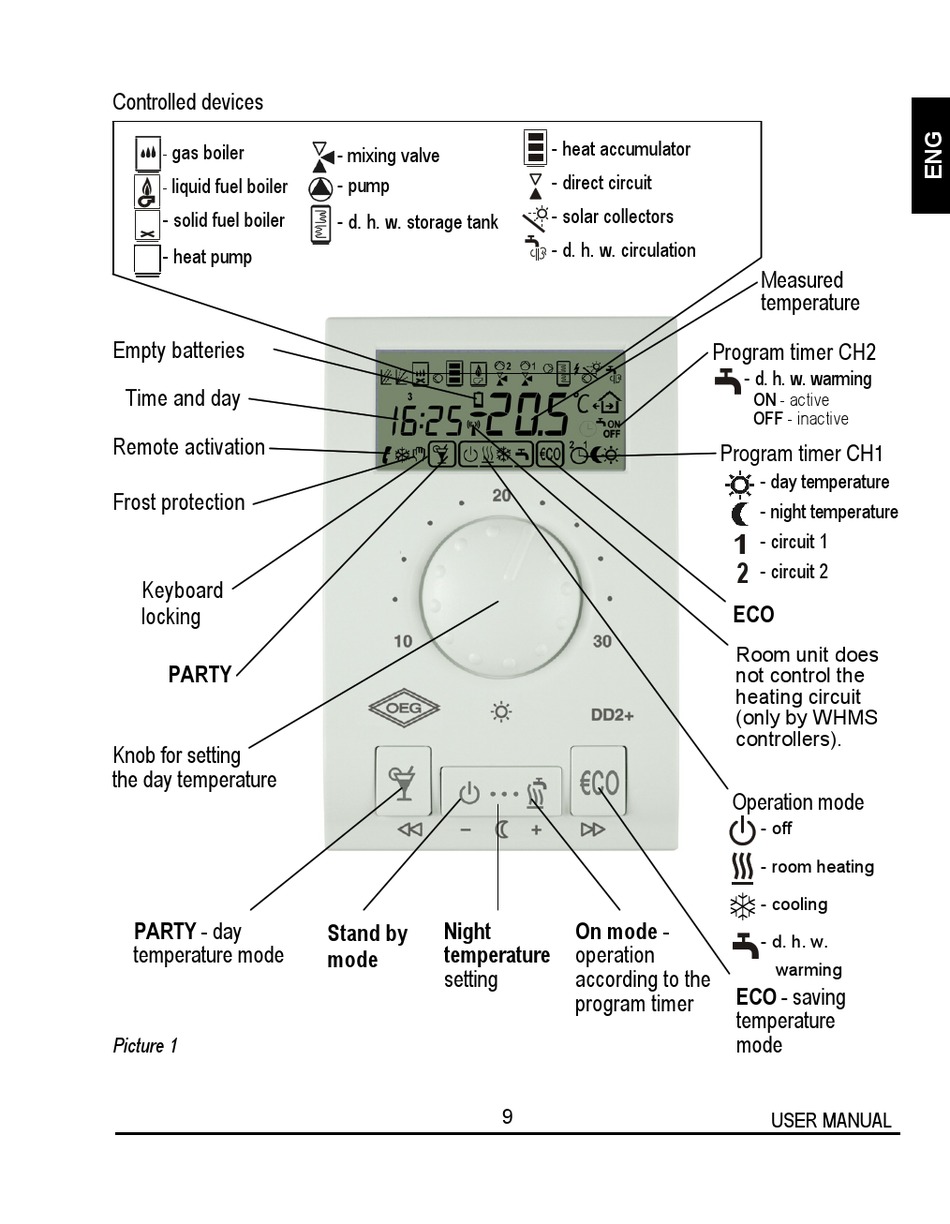

Picture 1
- mixing valve
- pump
- d. h. w. storage tank
Night
Stand by
temperature
mode
setting
9
- heat accumulator
- direct circuit
- solar collectors
- d. h. w. circulation
Program timer CH2
Program timer CH1

On mode -
operation
according to the
program timer
Measured
temperature
- d. h. w. warming
ON - active
OFF - inactive
- day temperature
- night temperature
1
- circuit 1
2
- circuit 2
ECO
Room unit does
not control the
heating circuit
(only by WHMS
controllers).
Operation mode
- off
- room heating
- cooling
- d. h. w.
warming
ECO - saving
temperature
mode
USER MANUAL
