Coding Switch - OEG DD2+ Handbuch

Coding switch

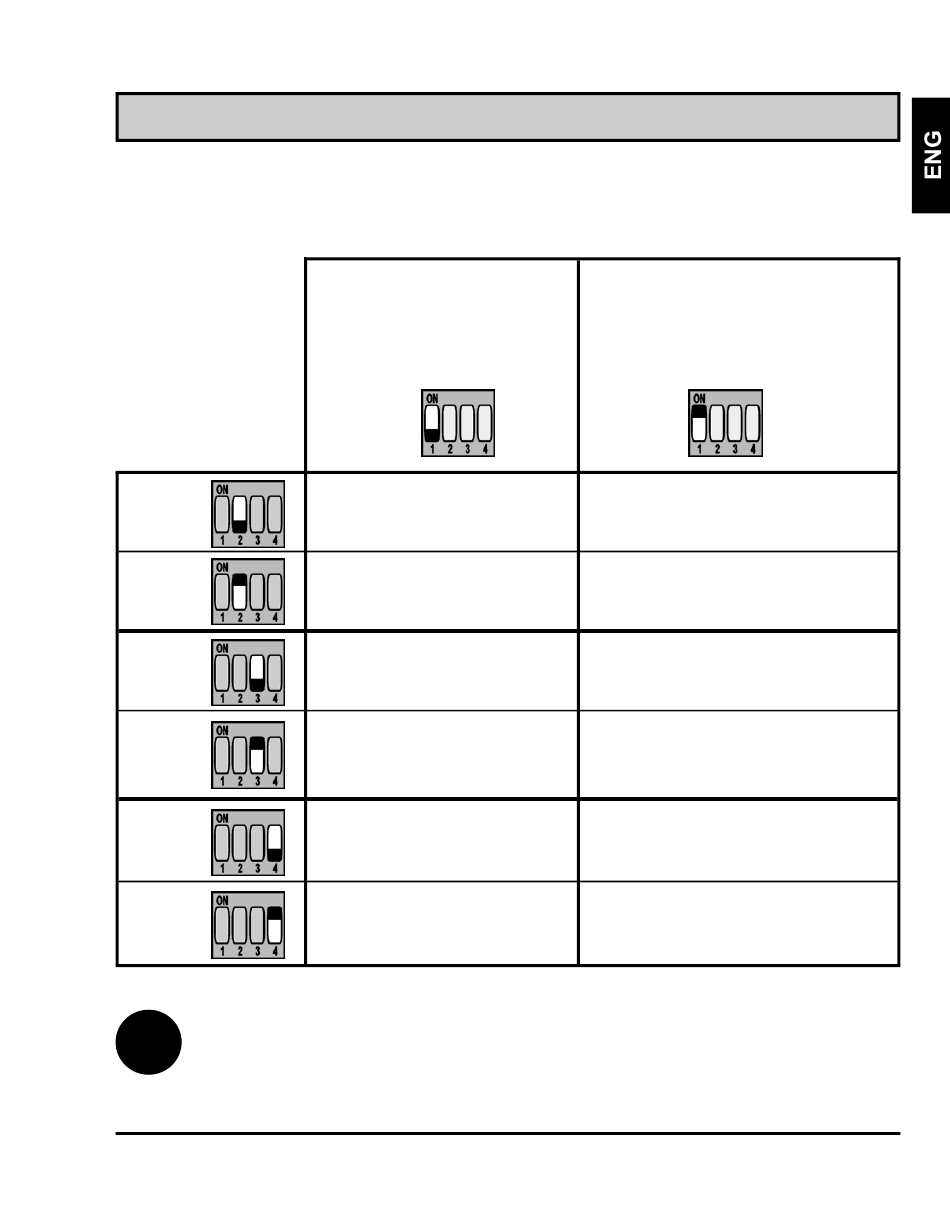

On the DD2+ backside is the 4-pole coding switch. The meaning
of switches is:
S2=OFF
S2=ON
S3=OFF
S3=ON
S4=OFF
S4=ON
i
Coding switch factory setting is OFF.
Room unit DD2+ is
connected on WHMS,
KMS-D(+),
KSF-Pro mit KMS-D(+).
S1=OFF
Room unit controls
circuit #1
Room unit does not
control circuit #1
Room unit controls
circuit #2
Room unit does not
control circuit #2
Room unit #1
Room unit #2
Room unit DD2+ is
connected on KMS.
S1=ON
Room unit controls
direct circuit
Room unit does not
control direct circuit
Room unit controls
mixing circuit
Room unit does not
control mixing circuit
Room unit
Service console
27
INSTALLATION MANUAL
