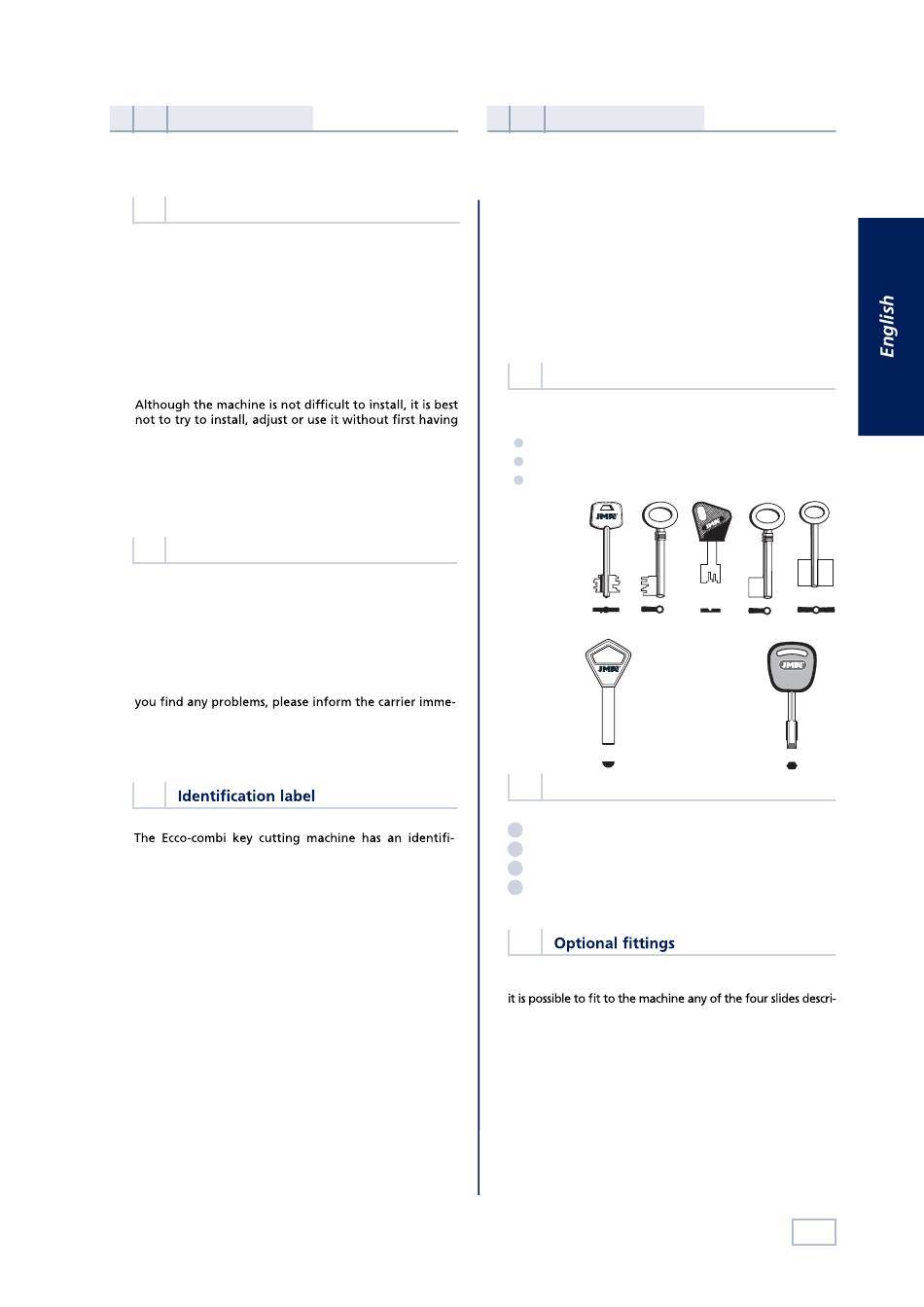

1
Presentation
and general aspects
1.1

General points

The Ecco-combi key cutting machine has been designed
taking into account the safety standards currently in
force in the EU.
The safety or personnel involved in the handling of this
type of machines is only achieved with a well designed
worker safety program, the implementation of a main-
tenance program and following recommended advice
as well as compliance with the safety standards included
in this manual.
read this manual.
The machine leaves our factory ready for use and only
requires the carrying out of calibration operations for
the tools that are going to be used.
1.2

Transportation and packing

The machine comes packed in packing of the following
size:
Width = 570 mm, length = 520 mm, height = 410mm
Weight of machine plus packing = 20 Kg.
When the machine has been unpacked, check whether
it has suffered any damage during transportation. If
diately and do not do anything with the machine until
the carrier's agent has carried out an inspection.
1.3
cation label, giving the serial number, the name and
address of the manufacturer, the CE mark and the year
of manufacture.
See Figure 1.
2
Characteristics
of the machine
The Ecco-combi key cutting machine is very robust,
which has a direct effect on its precision.
It can cut single and double blade mortise lock keys,
pump keys and special keys. Three-position reversible
double clamp system. The clamps have two special gui-
des for precise centring and a tracer point with micro-
metric adjustment.

Family of keys

2.1
The Ecco-combi machine can cut the following types of keys:
Single and double blade mortise lock keys.
Pump keys.
Special keys.
Standard
Abloy

Parts of a key

2.2
1
Head
2
Stem
3 Blade
4 Teeth
2.3
In order to get a fuller service from this key cutting machine,
bed below, and use any of them.
"MORTISE" SLIDE (ECCO-BIT)
Enables you to cut single or double blade mortise lock keys,
pump keys and special keys.
"FORD" SLIDE (ECCO-FD)
Enables you to cut, using a code, FORD TIBBE keys.
"ABLOY" SLIDE (ECCO-ABL)
Enables you to cut ABLOY type keys.
"GROOVES" SLIDE (ECCO-RG)
Ford
See Figure 2
7
